Two Stage Permanent Magnet Serial TPM-IID

Nhà sản xuất: Typhoon

Giá: Gọi liên hệ

Đặt mua ngay

Thông tin sản phẩm

Product Advantages

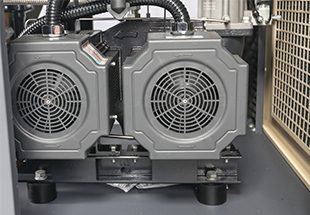

High efficiency horizontal motor, permanent magnet synchronous motor

Gearless: IPM motor and air end are connected through one shaft without a gear box: no gear pitting, no broken teeth.
Without coupling: Two independent IPM motors drive each of the two-stage air ends directly. One-shaft structure, without coupling worries.
Without motor bearings: High-Performance permanent magnet materials, without motor bearings, reduce fault risks for longer service life.
Without leak troubles: A special design of sealed structure prevents oil leakage by 100%, no leak troubles.

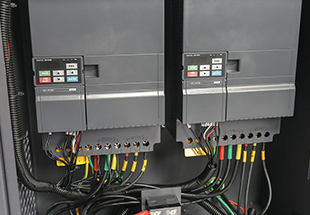

Frequency inverter

Typhoon Horizontal Type Two Stage PM Variable-Frequency Screw Air Compressor.
Has the Prominent Advantages of Energy-Saving, Stable, Low noise, Surpass Energy Efficiency Class A
1）Double Coaxial Integrated Design.
2）Double PM Synchronous Motor.
3）Double VFD Control.
4）High Efficient Two Stage Airend.
5）Horizontal Structure, Underslung, Lower Vibration.

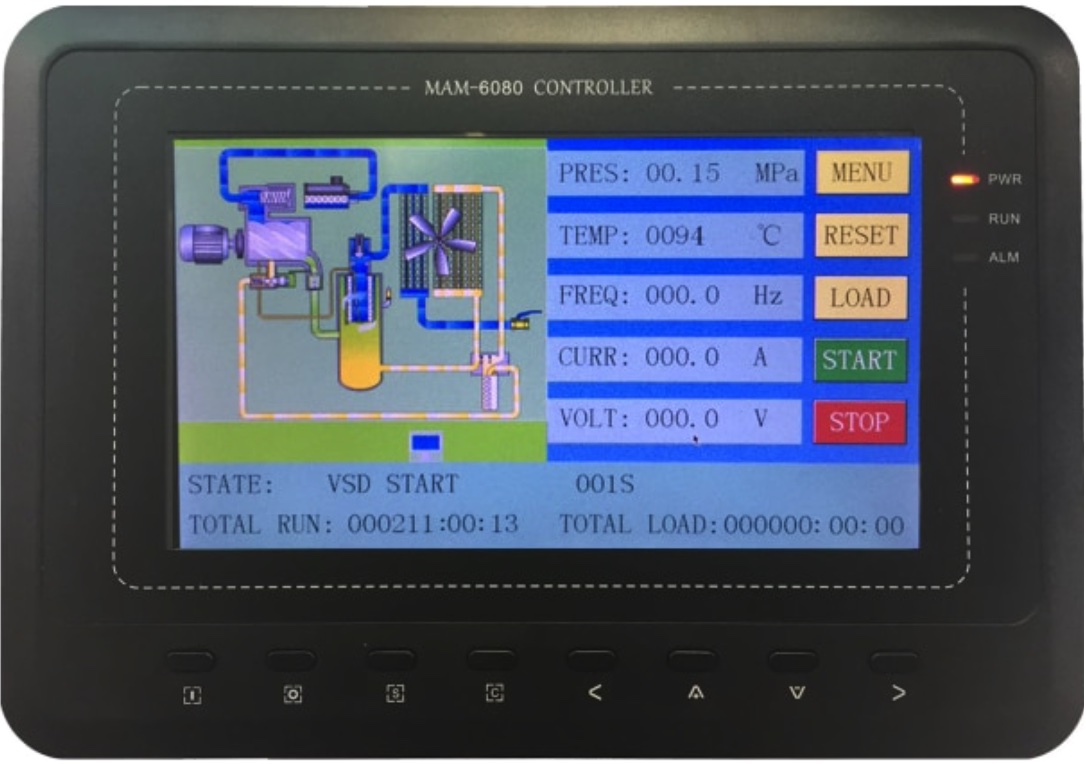

Intelligent control

Through higher intelligent control, the size of air production can be adjusted automatically, therefore, no matter how the air volume fluctuates, the pressure is always maintained which means the operation is really under constant pressure. The motor responds quickly, starts quickly and loads quickly.When the air volume is suddenly changed, it can respond quickly and the reaction time is within 50ms. It completely avoids the damage of uers' equipment and product defects caused by the pressure tuation, moreover, it reduces the energy loss caused by the pressure fluctuation.

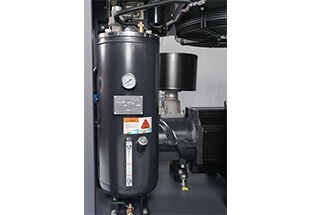

Oil & Air separator

Three-stage separation of oil and gas is achieved: Centrifugal separation, gravity separation, separation by fine core. With high-efficiency oil-air separator to ensure that the compressed air oil content is less than 3ppm. High-precision large-capacity oil separator using time can be up to 4000 hours

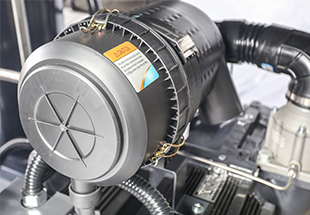

Efficiency filtration system

Make exhaust oil content lower than 3ppm. Hepa filter, removes impurities in the lubricating oil to provide clean lubricating oil for the rotor and bearing of the motor, filters dust in the air, make the motor rotor and bearing free of damage.

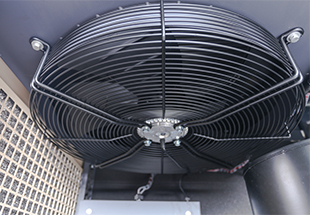

High capability cooling system

Using axial fan, large propeller, lower speed and lower noise. With high air pressure, high air volume and stable operation.
Large heat exchanger, using high strength aluminum alloy material, ensure good cooling effect even under 45 degree environment.

Product Parameter

Model	Power		Pressure	Capacity	Dimensions	Weight	Outlet Pipe	Noise Level
Model	KW	HP	bar	M3/min	(LxWxH) mm	Kg	Diameter	dB
TPM30A-llD	22	30	7	4.20	1300x950x1340	590	Gl 1/4	75
			8	4.00
			10	3.60
TPM40A -llD	30	40	7	5.75	1350x1000x1350	670	Gl 1/2	75
			8	5.48
			10	4.90
TPM50A- llD	37	50	7	7.50	1350x1000x1350	670	Gl 1/2	75
			8	7.10
			10	6.45
TPM60A- llD	45	60	7	9.26	1760x1300x1750	1360	G2	78
			8	8.80
			10	7.92
TPM75A-llD	55	75	7	11.46	1760x1300x1750	1360	G2	80
			8	10.92
			10	9.82
TPM100A-llD	75	100	7	15.60	2670x1880x1820	2600	DN65	80
			8	14.92
			10	13.23
TPM120A-llD	90	120	7	18.75	2670x1880x1820	2600	DN65	85
			8	17.85
			10	16.45
TPM150A-llD	110	150	7	23.76	2740x2145x2000	3550	DN65	85
			8	22.57
			10	20.58
TPM175A-llD	132	175	7	27.55	2740x2145x2000	3550	DN65	85
			8	26.25
			10	23.85
TPM200A-llD	160	200	7	33.28	3980x2380x2260	5300	DN100	85
			8	32.23
			10	28.56
TPM250A-llD	185	250	7	40.32	3980x2380x2260	6000	DN100	85
			8	37.38
			10	33.28
TPM270A-llD	200	270	7	43.55	3980x2380x2260	6000	DN100	85
			8	41.85
			10	37.46
TPM300A-llD	220	300	7	47.38	3980x2380x2260	6000	DN100	85
			8	45.50
			10	41.26
TPM350A-llD	250	350	7	52.20	3980x2380x2260	6000	DN100	85
			8	50.85
			10	44.90
TPM420A-llD	315	420	7	63.80	3980x2380x2500	6200	DN125	90
			8	61.50
			10	56.00

The exhaust volume is measured under the rated exhaust pressure, according to the national standard GB3853 test (equivalent to ISO1217 appendix C).
Recommend frquency 30%-100%.
The above data is based on the standard grid- 380V/ 50HZ.
Please make further inquiry for the non-standard specification type and machines which are used under high/low temperature, high humidity, dusty working environment.
