All In One Fix Speed Serial TFSTD

  • (613 đánh giá)
  • Nhà sản xuất: Typhoon

Model: TFSTD

Nơi sản xuất: N/A

Giá: Gọi liên hệ

Lượt xem: 811

Đặt mua ngay

All in one serial provides a complete solution to produce clean and dry compressed air.

Xem thêm: Typhoon Air compressor

Đánh giá của bạn về sản phẩm này:

Sản phẩm cùng danh mục

Thông tin sản phẩm

Product Advantages

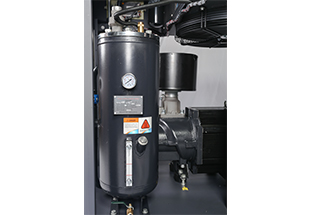

Oil & Air separator

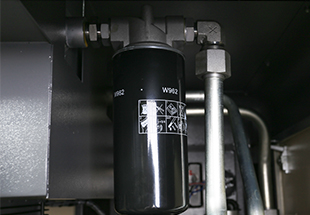

Oil filter

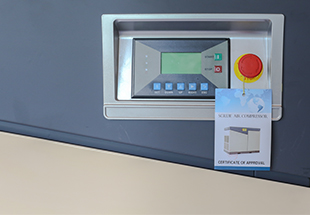

Controller

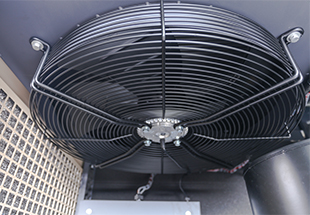

Cooling fan

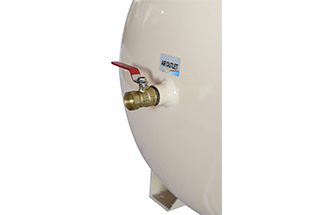

Air tank

Product Parameter

TSPT – TSPTD SERIES TECHNICAL SPECIFICATION
Model Power Pressure Capacity Dimensions Weight Outlet Pipe Noise Level Pressure
KW HP bar M3/min (LxWxH) mm Kg Diameter dB bar
TFST7.5A 5.5 7.5 7 0.90 1230x600x1530 300 G3/4 65 300
8 0.80
10 0.70
TFST10A 7.5 10 7 1.05 1230x600x1530 300 G3/4 65 300
8 1.10
10 1.00
TFST15A 11 15 7 1.68 1550x820x1780 350 G3/4 65 300
8 1.60
10 1.45
TFST20A 15 20 7 2.50 1550x820x1780 350 G3/4 65 300
8 2.30
10 2.00
WITH AIR TANK, DRYER AND FILTER
TFSTD7.5A 5.5 7.5 7 0.90 1725x660x1625 380 G3/4 65 200/500
8 0.80
10 0.70
TFSTD10A 7.5 10 7 1.05 1725x660x1625 380 G3/4 65 200/500
8 1.10
10 1.00
TFSTD15A 11 15 7 1.68 1880x820x1940 505 G3/4 65 500
8 1.60
10 1.45
TFSTD20A 15 20 7 2.50 1880x820x1940 505 G3/4 65 500
8 2.30
10 2.00
TFSTD30A 22 30 7 3.52 2100x750x1950 650 G1 75 600
8 3.36
10 3.06
  • The exhaust volume is measured under the rated exhaust pressure, according to the national standard GB3853 test (equivalent to ISO1217 appendix C).
  • Recommend frquency 30%-100%.
  • The above data is based on the standard grid- 380V/ 50HZ.
  • Please make further inquiry for the non-standard specification type and machines which are used under high/low temperature, high humidity, dusty working environment.
