Permanent Magnet Screw Air Compressor Serial TPM

  • (1210 đánh giá)
  • Nhà sản xuất: Typhoon

Model: TPM

Nơi sản xuất: N/A

Giá: Gọi liên hệ

Lượt xem: 879

Đặt mua ngay

Permanent magnet variable speed screw air compressor, with synchronous motor, has no slip, no electrical excitation and low heat loss.

Đánh giá của bạn về sản phẩm này:


Sản phẩm cùng danh mục

All In One Fix Speed Serial TFSTD

All In One Fix Speed Serial TFSTD

2,4/5 (613 đánh giá)

805 lượt

Gọi liên hệ
All In One Permanent Magnet Serial TPMTD

All In One Permanent Magnet Serial TPMTD

2,4/5 (610 đánh giá)

719 lượt

Gọi liên hệ
Fixed Speed Air Compressor Serial TFS

Fixed Speed Air Compressor Serial TFS

5,0/5 (1 đánh giá)

753 lượt

Gọi liên hệ
Two Stage Permanent Magnet Serial TPM-IID

Two Stage Permanent Magnet Serial TPM-IID

2,2/5 (1.202 đánh giá)

891 lượt

Gọi liên hệ
Low Pressure Screw Air Compressor Serial TPM-IID

Low Pressure Screw Air Compressor Serial TPM-IID

2,2/5 (1.205 đánh giá)

828 lượt

Gọi liên hệ

Thông tin sản phẩm

Product Advantages

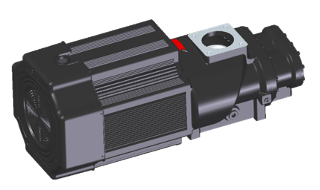

Permanent magnet motor

Permanent magnet motor

The motor IP54 and the main engine share the same shaft, without coupling, central bracket, belt, gear, etc. The transmission efficiency is 100%, whose efficiency is 5-12% higher than that of the same capacity asynchronous motor. The motor is bearingless and oil sealed, eliminating routine maintenance and repairation. The volume is half smaller than the main component of ordinary three phase motor, and the weight is one-third lighter than that of the common motor host component.

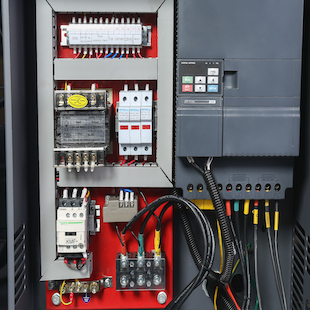

Frequency inverter

Frequency inverter

Frequency conversion operation, start smoothly and stably with low noise. The large reduction of the starting current reduces the maximum power load, so as to save a lot of electricity. The demand of compressed air is varied every time depend on loading condition and the fluctuation rate is 40 - 80%. With application of Inverter Control system, the compressed air can be produced accurately according to the demand. And eventually, it can make much energy saving compared to normal compressor.

PLC

Intelligent control

Through higher intelligent control, the size of air production can be adjusted automatically, therefore, no matter how the air volume fluctuates, the pressure is always maintained which means the operation is really under constant pressure. The motor responds quickly, starts quickly and loads quickly.When the air volume is suddenly changed, it can respond quickly and the reaction time is within 50ms. It completely avoids the damage of uers' equipment and product defects caused by the pressure tuation, moreover, it reduces the energy loss caused by the pressure fluctuation.

Oil & Air separator

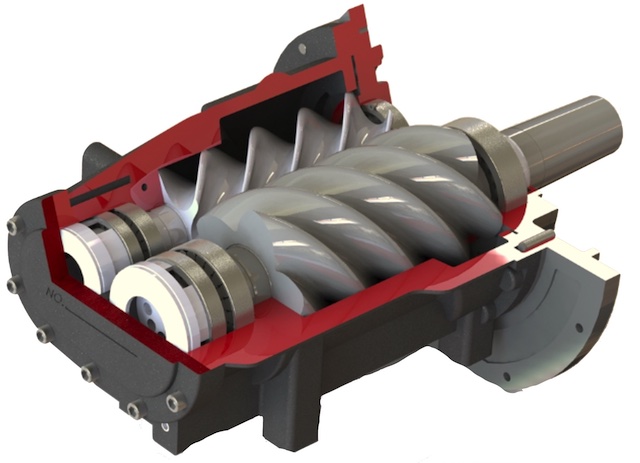

Energy Saving Airend

Energy Saving Airend (using 6 SKF bearings)
With new and exclusive design of Typhoon screw rotor which has been passed through the accurate machining procedure and test, it improves efficiency of airend and optimizes the airflow. We use a set of opposite biconical roller bearings at the end of exhaust end enable to support thrust load effectively and extend the running time.

Oil filter

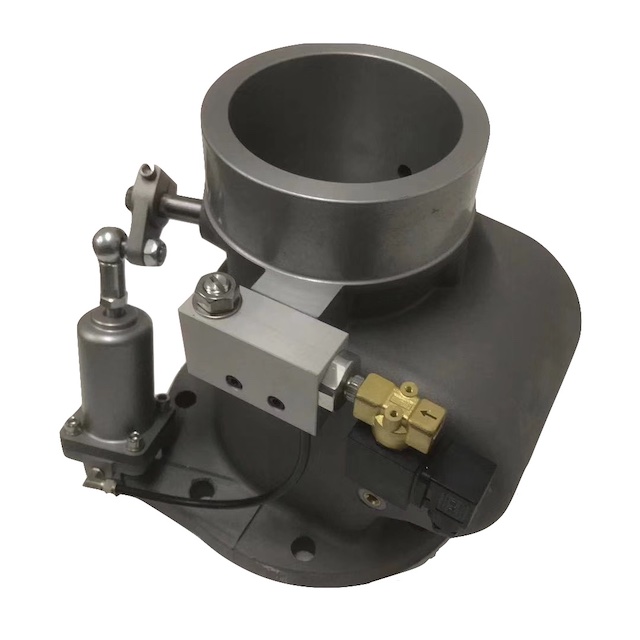

Energy Saving Intake Valve

Intake valve have function of proportional adjusting the air inflow, according to user's air demand, intake volume can be adjusted from 0-100%.
With non-return function,
With air-bleeding function,
With no-load delay function

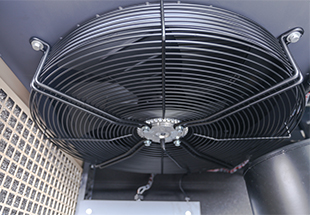

Cooling fan

High capability cooling system

Using axial fan, large propeller, lower speed and lower noise. With high air pressure, high air volume and stable operation.
Large heat exchanger, using high strength aluminum alloy material, ensure good cooling effect even under 45 degree environment.

Product Parameter

TPM SERIES TECHNICAL SPECIFICATION
Model Power Pressure Capacity Dimensions Weight Outlet Pipe Noise Level
KW HP bar M3/min (LxWxH) mm Kg Diameter dB
TPM7.5A 5.5 7.5 7 0.90 840x670x925 200 G3/4 65
8 0.80
10 0.70
13 0.60
TPM10A 7.5 10 7 1.05 840x670x925 200 G3/4 65
8 1.10
10 1.00
13 0.80
TPM15A 11 15 7 1.68 1000x820x1145 300 G3/4 65
8 1.60
10 1.45
13 1.30
TPM20A 15 20 7 2.50 1000x820x1145 300 G3/4 65
8 2.30
10 2.00
13 1.74
15 1.50
TPM30A 22 30 7 3.52 1100x880x1190 390 Gl 1/4 75
8 3.36
10 3.06
13 2.80
15 2.20
TPM40A 30 40 7 5.20 1200x950x1358 530 Gl 1/4 75
8 4.72
10 4.30
13 3.90
TPM50A 37 50 7 6.51 1300x1000x1366 590 Gl 1/2 75
8 6.19
10 5.62
13 5.10
TPM60A 45 60 7 7.71 1300x1000x1366 590 Gl 1/2 80
8 7.35
10 6.67
13 5.80
TPM75A 55 75 7 10.14 1600x1300x1600 1210 G2 80
8 9.66
10 8.77
13 7.95
TPM100A 75 100 7 13.50 1600x1300x1600 1210 G2 80
8 12.51
10 11.21
13 9.78
TPM120A 90 120 7 14.91 1600x1300x1600 1220 G2 85
8 14.17
10 12.88
13 11.50
TPM150A 110 150 7 20.96 2090x1550x2000 2300 DN65 85
8 20.06
10 17.02
13 15.30
TPM175A 132 >175 7 23.37 2090x1550x2000 2300 DN65 85
8 22.50
10 21.03
13 18.00
  • The exhaust volume is measured under the rated exhaust pressure, according to the national standard GB3853 test (equivalent to ISO1217 appendix C).
  • Recommend frquency 30%-100%.
  • The above data is based on the standard grid- 380V/ 50HZ.
  • Please make further inquiry for the non-standard specification type and machines which are used under high/low temperature, high humidity, dusty working environment.
