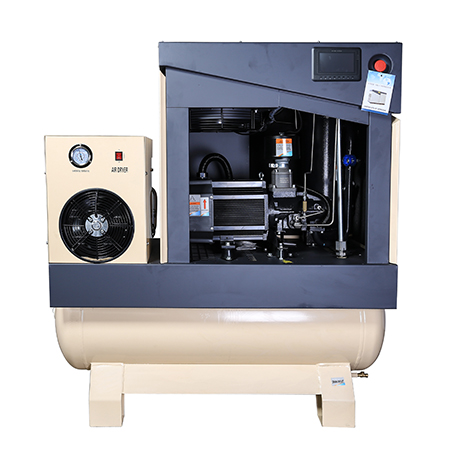

All In One Permanent Magnet Serial TPMTD

All In One Permanent Magnet Serial TPMTD p4-2

All In One Permanent Magnet Serial TPMTD

(610 đánh giá)
Nhà sản xuất: Typhoon

Model: TPMTD

Nơi sản xuất: N/A

Giá: Gọi liên hệ

Đặt mua ngay

Permanent magnet variable speed all in one compressor provides a complete solution to produce clean and dry compressed air.

Đánh giá của bạn về sản phẩm này:

Sản phẩm cùng danh mục

All In One Fix Speed Serial TFSTD

All in one serial provides a complete solution to produce clean and dry compressed air.

2,4/5 (613 đánh giá)

839 lượt

Gọi liên hệ

New

Two-Stage PM VSD Air Compressor Series (TPTT-V)

Compared to single-stage compressors, a two-stage is much closer to isothermal compression. This is achieved by the injection of fresh oil between the stages which reduces the inlet temperature to the second stage. This lower inlet temperature increases efficiency by reducing the compression ratio between the stages. In addition, leakage between the rotor seals is significantly reduced resulting in outstanding volumetric efficiency.

5,0/5 (1 đánh giá)

18 lượt

Gọi liên hệ

Fixed Speed Air Compressor Serial TFS

Advanced V-profile air end and high precision processing, provide highest efficiency with its high volume flow rate.

5,0/5 (1 đánh giá)

789 lượt

Gọi liên hệ

Permanent Magnet Screw Air Compressor Serial TPM

Permanent magnet variable speed screw air compressor, with synchronous motor, has no slip, no electrical excitation and low heat loss.

2,2/5 (1.210 đánh giá)

922 lượt

Gọi liên hệ

Two Stage Permanent Magnet Serial TPM-IID

Efficient two-stage compression motor; dual coaxial integrated design; double permanent magnet synchronous motor; dual frequency conversion control

2,2/5 (1.202 đánh giá)

938 lượt

Gọi liên hệ

Low Pressure Screw Air Compressor Serial TPM-IID

Surpass Energy Efficiency Class A
Horizontal Type Two Stage PM Variable-Frequency Screw Air Compressor

- SMOOTH SPEED ADJUSTMENT
- EXCEEDS Fl RST CLASS ENERGY EFFICIENCY STANDARDS
- LOW NOISE
- HIGH DISCHARGE CAPACITY
- DUAL INVERTER CONTROL

2,2/5 (1.205 đánh giá)

868 lượt

Gọi liên hệ

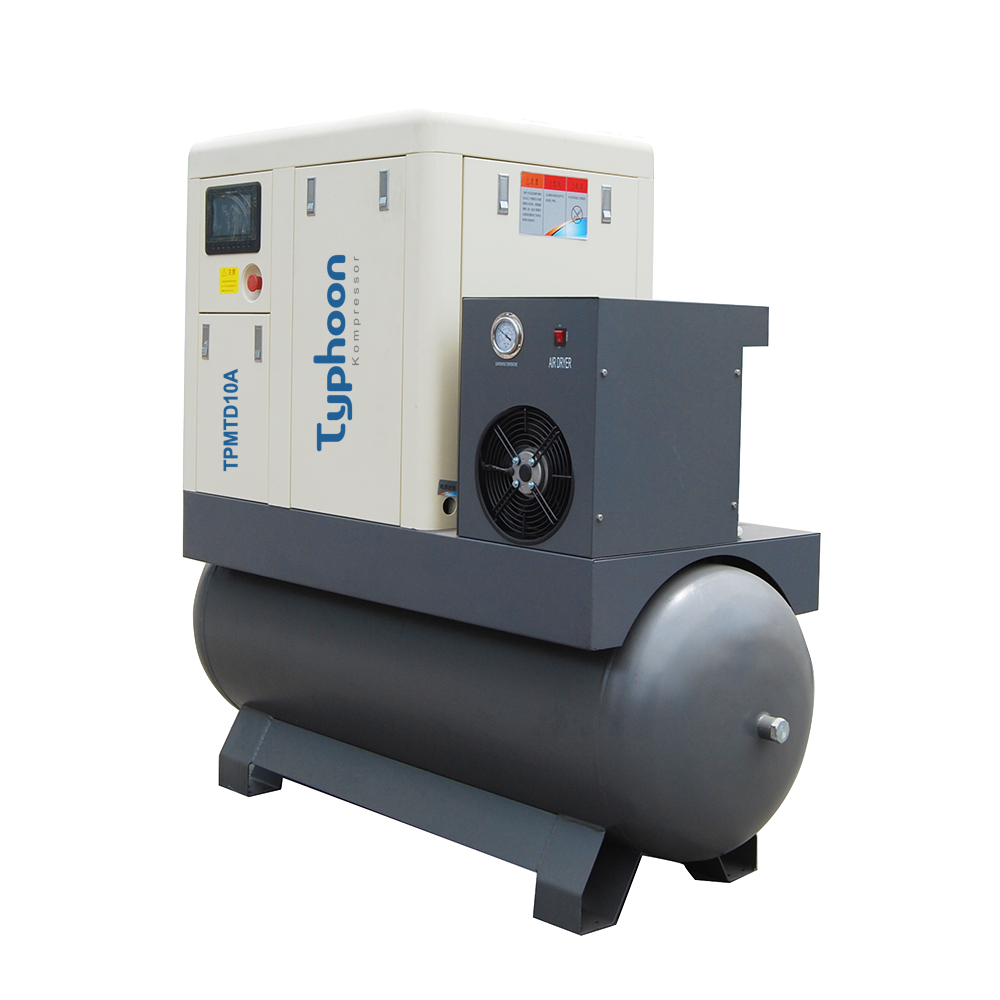

All In One Permanent Magnet Serial TPMTD

Nhà sản xuất: Typhoon

Giá: Gọi liên hệ

Đặt mua ngay

Thông tin sản phẩm

Product Advantages

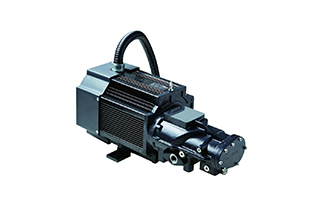

Permanent magnet motor

No electric excitation, no fundamental wave iron, less copper loss and less calorific value, whose efficiency is 5-12% higher than that of the same capacity asynchronous motor.

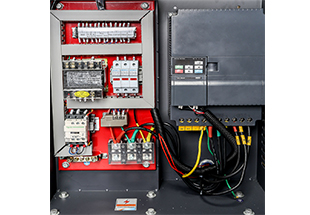

Frequency inverter

High performance frequency inverter makes the operation more stable and carrying out real-time vector calculation according to different air delivery.

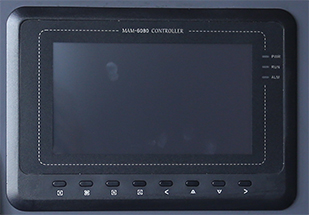

PLC

7-inch color screen, touch operation, sensitive action, be equipped with active protection, alarming, maintenance reminding and automatic 24-hour unattended operation.

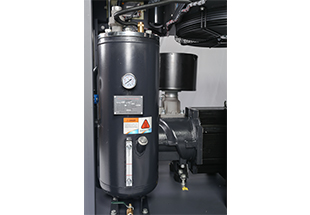

Oil & Air separator

Bigger oil and air separator and oil separator element, improving the initial separation efficiency, making the oil content less than or equal to 3ppm.

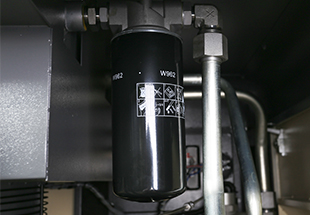

Oil filter

Oil filter fitness is 25um, which can effectively guarantee the clean lubricating oil supply to the main system and improve the service life of the air end.

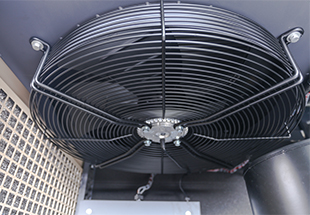

Cooling fan

High efficiency and large air volume, greatly lower the temperature and prelong the lubricating oil change period.

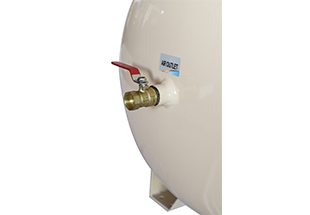

Air tank

Compressor with air tank combined, the exhaust from the compressor is directly discharged to the tank, which reduces the intermediate connecting pipe and effectively saves space.

Product Parameter

TPMT - TPMTD SERIES TECHNICAL SPECIFICATION
Model	Power		Pressure	Capacity	Dimensions	Weight	Outlet Pipe	Noise Level	Tank Volume
Model	KW	HP	bar	M3/min	(LxWxH) mm	Kg	Diameter	dB	L
TPMT7.5A	5.5	7.5	8	0.80	1230x600x1530	300	G3/4	65	300
			10	0.70
			13	0.60
TPMT10A	7.5	10	8	1.10	1230x600x1530	300	G3/4	65	300
			10	1.00
			13	0.80
TPMT15A	11	15	8	1.60	1550x820x1780	350	G3/4	65	300
			10	1.45
			13	1.30
TPMT20A	15	20	8	2.30	1550x820x1780	350	G3/4	65	300
			10	2.00
			13	1.74
			15	1.50
WITH AIR TANK, DRYER AND FILTER
TPMTD7.5A	5.5	7.5	7	0.90	1725x660x1625	380	G3/4	65	200/500
			8	0.80
			10	0.70
			13	0.60
TPMTD10A	7.5	10	7	1.05	1725x660x1625	380	G3/4	65	200/500
			8	1.10
			10	1.00
			13	0.80
TPMTD15A	11	15	7	1.68	1880x820x1940	505	G3/4	65	500
			8	1.60
			10	1.45
			13	1.30
TPMTD20A	15	20	7	2.50	1880x820x1940	505	G3/4	65	500
			8	2.30
			10	2.00
			13	1.74
			15	1.50
TPMTD30A	22	30	7	3.52	2100x750x1950	650	G1	75	600
			8	3.36
			10	3.06
			13	2.80
			15	2.20

The exhaust volume is measured under the rated exhaust pressure, according to the national standard GB3853 test (equivalent to ISO1217 appendix C).
Recommend frequency 30%-100%.
The above data is based on the standard grid- 380V/ 50HZ.
Please make further inquiry for the non-standard specification type and machines which are used under high/low temperature, high humidity, dusty working environment.
