TRF Compressed Air Filters

  • (1191 đánh giá)
  • Nhà sản xuất: Typhoon

Nơi sản xuất: N/A

Giá: Gọi liên hệ

Lượt xem: 694

Đặt mua ngay

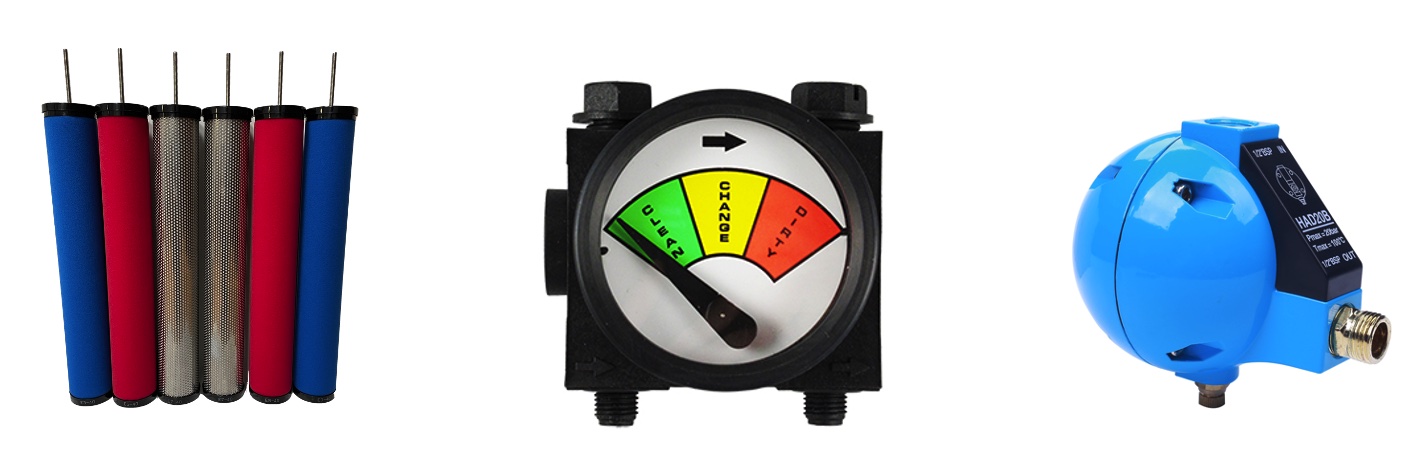

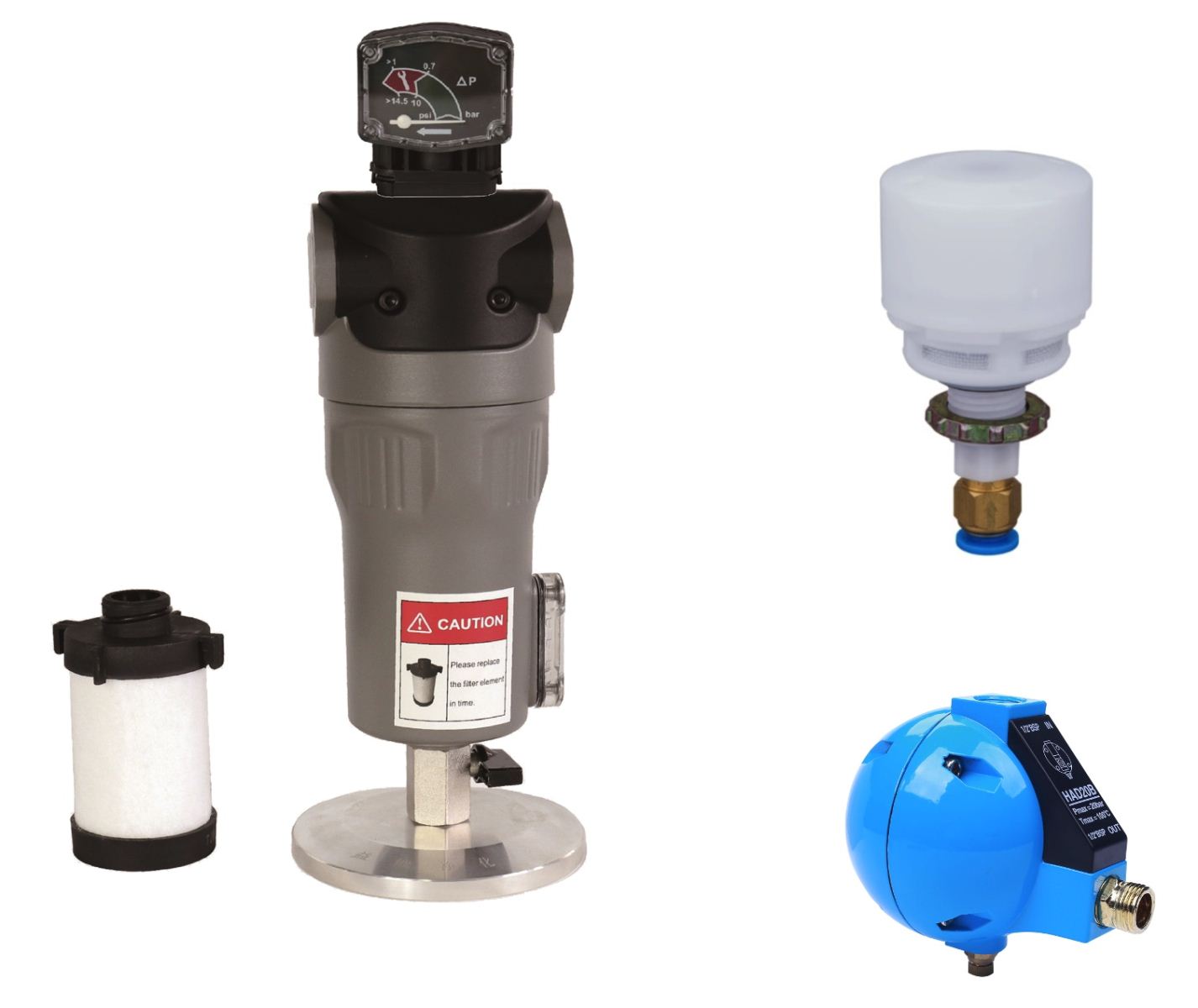

High performance filters designed to remove impurities (water, oil, particles) contained in compressed air networks. Thanks to their many options (differential pressure gauge, anti-seize thread, depressurization orifice, condensate sight glass) and their optimal finish (aluminum and bronze body, epoxy paint), they are the best solution for the filtration of your networks.

Đánh giá của bạn về sản phẩm này:

Sản phẩm cùng danh mục

Thông tin sản phẩm



High Quality Refrigerant Compressor

Rated working pressure:0.8MPa
Thread Type :
Max. working Pressure : 1.6MPa
Max. working temperature : 66 ℃
Min. working temperature : 1.5 ℃
* filter grade: C, T, A, H
Level C Prefilter: 3 microns, oil content: 3 ppm
Level T Fine Filter: 1 micron, oil content: 1 ppm
Level A Micro filter: 0.01 micron,oil content: 0.01 ppm
Level H Activated carbon filter: 0.01 micron, Oil content: 0.001 ppm



Model

Capacity

(m³/min)

Connection

Filter Element

Dimension (mm)

W

H

TRF-010*

1.2

Rc1/2"

JF-010*

95

240

TRF-020*

2.4

Rc3/4"

JF-020*

95

280

TRF-030*

3.6

Rc1"

JF-030*

125

302

TRF-050*

5.7

Rc1-1/2"

JF-050*

125

421

TRF-070*

7.8

Rc1-1/2"

JF-070*

125

421

TRF-110*

11.6

Rc2"

JF-110*

175

550

TRF-150*

15.5

Rc2"

JF-0150*

175

550

TRF-200*

20.8

DN65

JFX-200*

438

640

TRF-250*

25.3

DN65

JFX-250*

438

640

TRF-300*

30.8

DN80

JFX-300*

438

792

TRF-400*

40.5

DN100

JFX-400*

450

840



High Quality Refrigerant Compressor

Rated working pressure:0.8MPa
Thread Type :
Max. working Pressure : 1.6MPa
Max. working temperature : 66 ℃
Min. working temperature : 1.5 ℃
* filter grade: C, T, A, H
Level C Prefilter: 3 microns, oil content: 3 ppm
Level T Fine Filter: 1 micron, oil content: 1 ppm
Level A Micro filter: 0.01 micron,oil content: 0.01 ppm
Level H Activated carbon filter: 0.01 micron, Oil content: 0.001 ppm
