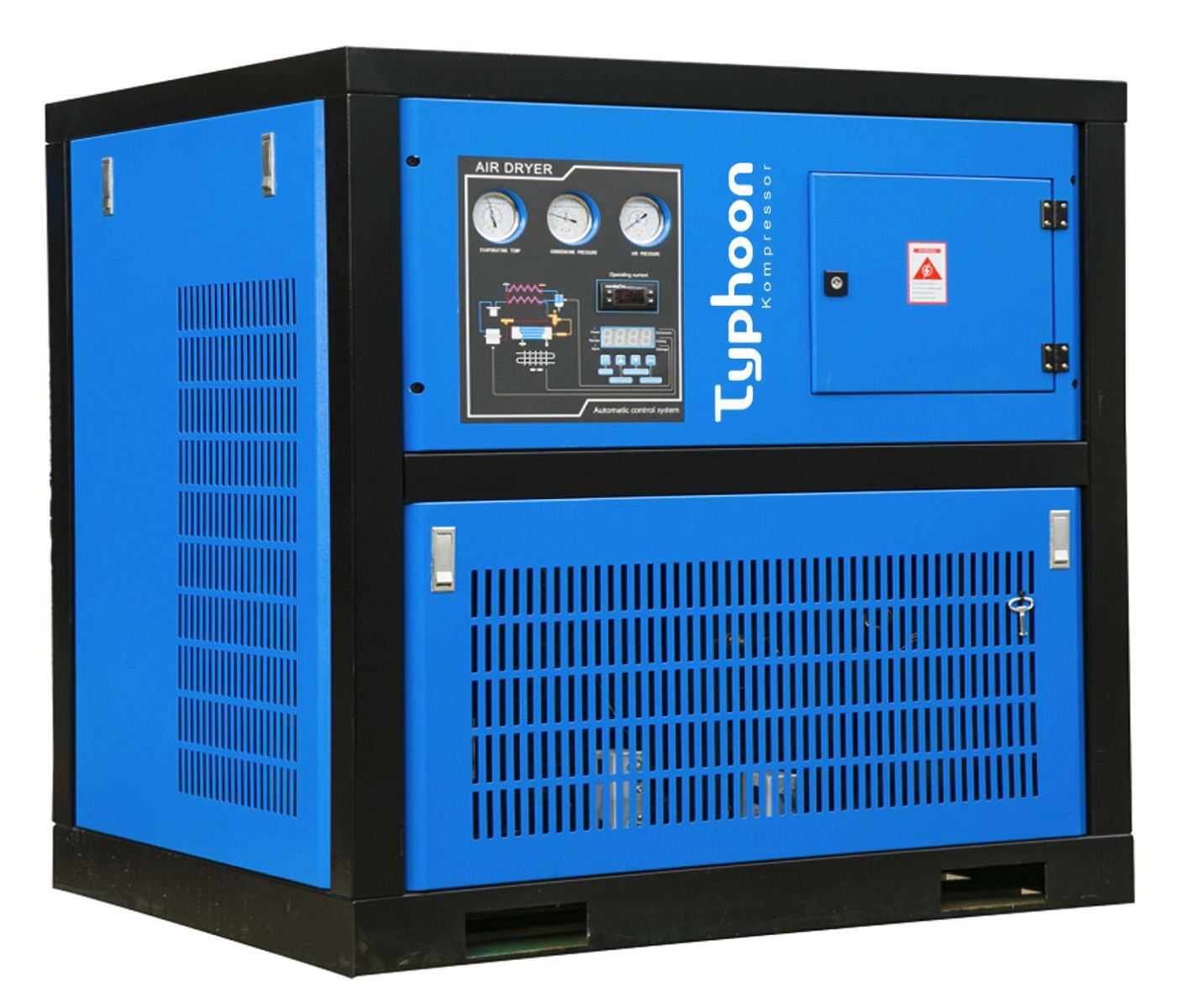

ENVIRONMENTAL PROTECTION REFRIGERATED AIR DRYERS
Three main advantages for aluminum alloy three-in-one heat exchanger refrigerated air dryer
Energy saving:
The aluminum alloy three-in-one heat exchanger design minimizes the process loss of the cooling capacity and improves the recycling of the cooling capacity. Under the same processing capacity, the total input power of this model is reduced by 15-50%
Environmental protection:
Working pressure: 0.7MPa, Max.1.6Mpa
High Efficiency:
The integrated heat exchanger is equipped with guide fins to make the compressed air evenly exchange heat inside, and the built-in steam-water separation device is equipped with a stainless steel filter to make the water separation will be more thoroughly.
Features:

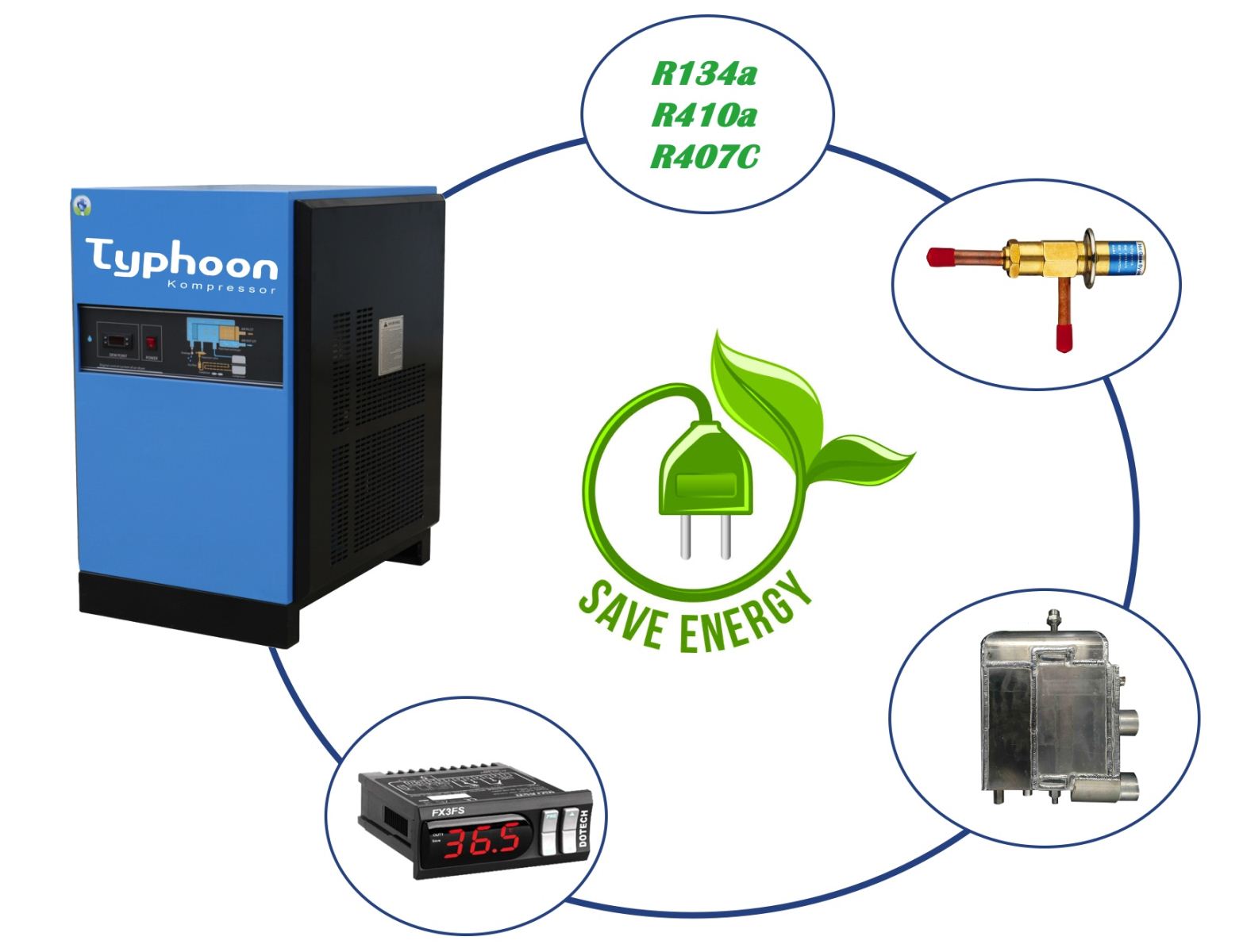

1. Adopt R134a/R410a/R407C environmental protection refrigerant, green energy saving
2. Aluminum alloy three in one plate heat exchanger design, without pollution again, high efficiency and purity
3. Intelligent digital control system, all directional protection
4. With high-precision automatic energy control valve, stable and reliable operation
5. Self diagnostic function, visual display of alarm code
6. Real time dew point display, the quality of finished gas is clear
7. With CE standard.
Technical Specifications TR-01 => TR-12

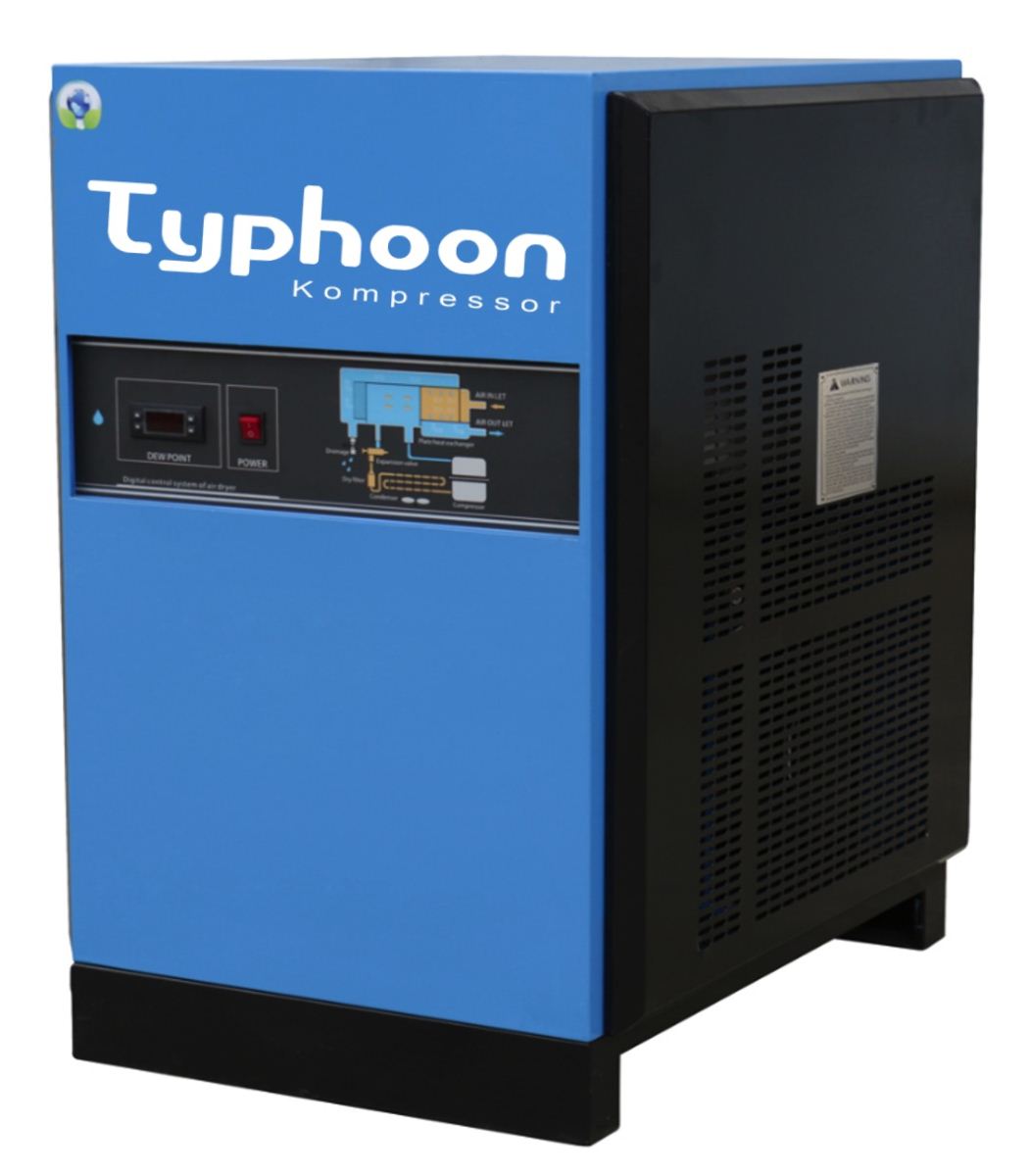

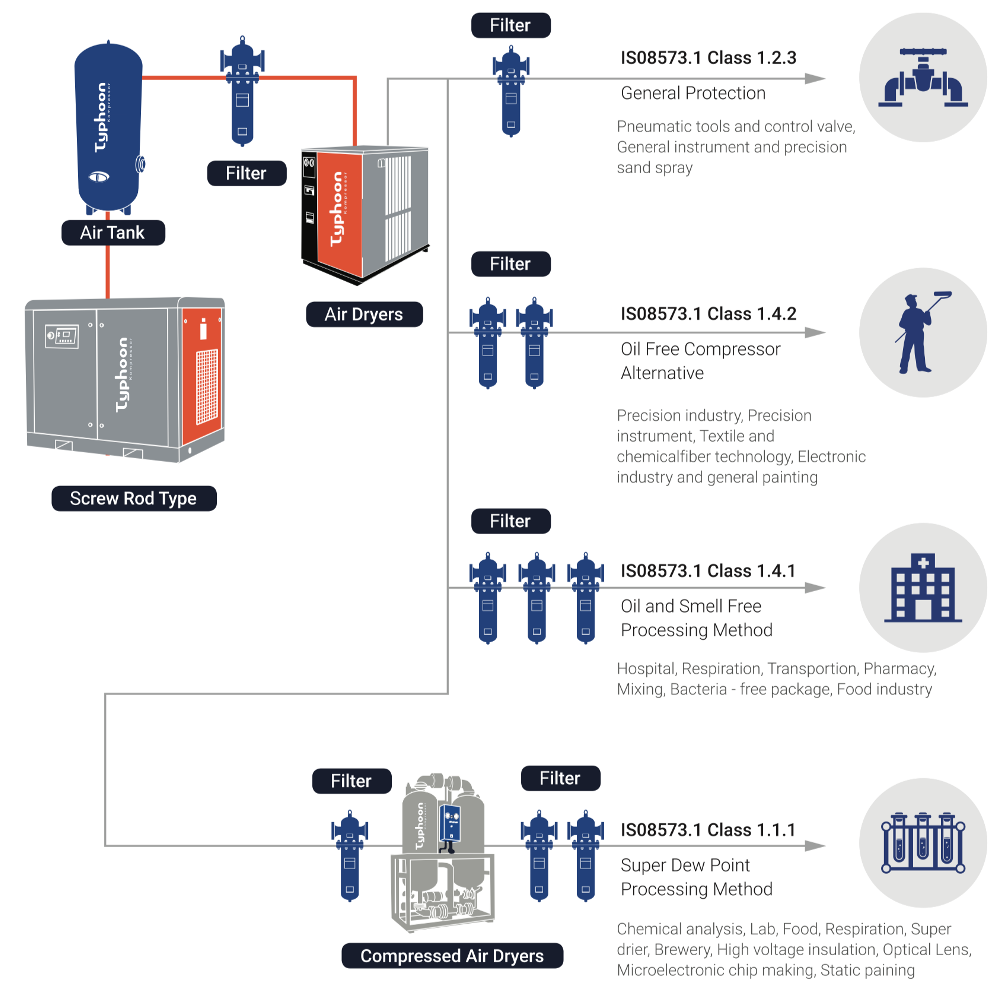

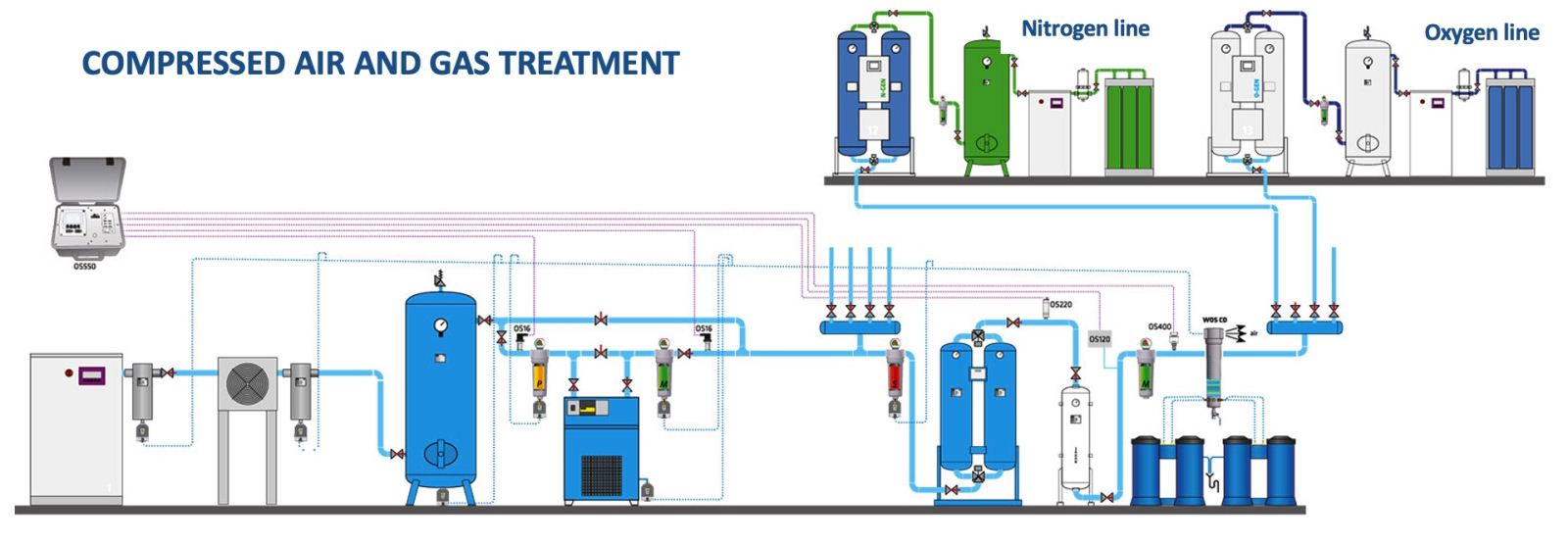

Typhoon Compressor dryer compact design and well-structured component layout provides extreme installation flexibility. The easily accessible components ensure that Typhoon Compressor dryer occupies less valuable plant floor space.
ENERGY SAVING
HIGH EFFICIENCY
INTELLIGENT
ENVIRONMENTAL PROTECTION
STABLE
TR series condition
Ambient temperature :38℃, Max. 42℃
Inlet temperature :38℃, Max. 65℃
Working pressure:0.7MPa, Max.1.6MPa
Pressure dew point:2℃ ~ 10℃ (Air dew point : -23℃ ~ -17℃)
Installation environment: no sun, no rain, good ventilation, device level hard ground, no dust and fluff
Refrigerated Air dryer
|
Model
|
TR-01
|
TR-02
|
TR-03
|
TR-06
|
TR-08
|
TR-10
|
TR-12
|
Max. air volume
|
m3/min
|
1.4
|
2.4
|
3.8
|
6.5
|
8.5
|
11
|
13.5
|
Power supply
|
|
220V/1pha/50Hz
|
380V/50Hz
|
Input power
|
KW
|
0.37
|
0.52
|
0.73
|
1.26
|
1.87
|
2.43
|
2.63
|
Air pipe connection
|
|
RC3/4"
|
RC1"
|
RC1-1/2"
|
RC2"
|
Evaporator type
|
|
Aluminum alloy plate
|
Refrigerant model
|
|
R134a
|
R410a
|
System Max. pressure drop
|
|
0.025
|
Intelligent control and protection
|
|
|
Display interface
|
|
LED dew point display, LED alarm code display, operation status indication
|
Intelligent anti-freezing protection
|
|
Constant pressure expansion valve and compressor automatic start/stop
|
Temperature control
|
|
Automatic control of condensing temperature/dew point temperature
|
High gas pressure protection
|
|
Built-in high sensitivity sensor
|
Low gas pressure protection
|
|
Built-in high sensitivity sensor
|
Weight
|
KG
|
34
|
42
|
50
|
63
|
73
|
85
|
94
|
Dimension
|
L
|
480
|
520
|
640
|
700
|
770
|
770
|
800
|
W
|
380
|
410
|
520
|
540
|
590
|
590
|
610
|
H
|
665
|
725
|
850
|
950
|
990
|
990
|
1030
|
Technical Specifications TR-15 => TR-80
ENERGY SAVING
HIGH EFFICIENCY
INTELLIGENT
ENVIRONMENTAL PROTECTION
STABLE
TR series condition
Ambient temperature :38℃, Max. 42℃
Inlet temperature :38℃, Max. 65℃
Working pressure:0.7MPa, Max.1.6MPa
Pressure dew point:2℃ ~ 10℃ (Air dew point : -23℃ ~ -17℃)
Installation environment: no sun, no rain, good ventilation, device level hard ground, no dust and fluff
Refrigerated Air dryer
|
Model
|
TR-15
|
TR-20
|
TR-25
|
TR-30
|
TR-40
|
TR-50
|
TR-60
|
TR-80
|
Max. air volume
|
m3/min
|
17
|
23
|
28
|
33
|
42
|
55
|
65
|
85
|
Power supply
|
|
380V/3pha/50Hz
|
|
Input power
|
KW
|
3.7
|
4.9
|
5.8
|
6.1
|
8
|
9.2
|
10.1
|
12
|
Air pipe connection
|
|
RC2"
|
RC2-1/2"
|
DN80
|
DN100
|
DN125
|
Evaporator type
|
|
Aluminum alloy plate
|
Refrigerant model
|
|
R407C
|
System Max. pressure drop
|
|
0.025
|
Intelligent control and protection
|
|
|
Display interface
|
|
LED dew point display, LED alarm code display, operation status indication
|
Intelligent anti-freezing protection
|
|
Constant pressure expansion valve and compressor automatic start/stop
|
Temperature control
|
|
Automatic control of condensing temperature/dew point temperature
|
High gas pressure protection
|
|
Built-in high sensitivity sensor
|
Low gas pressure protection
|
|
Built-in high sensitivity sensor
|
Weight
|
KG
|
180
|
210
|
350
|
420
|
550
|
680
|
780
|
920
|
Dimension
|
L
|
1000
|
1100
|
1215
|
1425
|
1575
|
1600
|
1650
|
1850
|
W
|
850
|
900
|
950
|
1000
|
1100
|
1200
|
1200
|
1350
|
H
|
1100
|
1160
|
1230
|
1480
|
1640
|
1700
|
1700
|
1850
|
