After coolers are installed in compressed air systems to reduce compressed air temperature and moisture content.
They consist of a heat exchanger made up of copper tubes supported by aluminum cooling fins. A high-efficiency axial fan forces ambient air over the heat exchanger providing the necessary cooling effect.
The compressed air is cooled down to approximately 10°C above ambient temperature. This cooling effect condenses a high percentage of the water vapor into a liquid with is separated from the air stream by the CCS centrifugal separator installed at the aftercooler outlet.
The installation of an TyphoonCompressor Aftercooler ensures the maximum performance and protection of all equipment, such as refrigeration dryers, adsorption dryers, and filters, positioned downstream of this unit.
AIR & WATER AFTER COOLER DAC / DAW Series
Technical Specifications: AIR COOLED | DAC Series
|
Air Flow Rate
|
|
|
Dimension (mm.)
|
|
MODEL #
|
M3/min
|
CFM
|
V / Ph / Hz
|
Conn.
|
A
|
B
|
C
|
D
|
E
|
Weight (kg.)
|
DAC 015
|
1.8
|
63
|
220 / 1 / 50
|
1”
|
460
|
665
|
235
|
368
|
-
|
17
|
DAC 040
|
5.5
|
193
|
220 / 1 / 50
|
1½”
|
653
|
825
|
280
|
362
|
-
|
29
|
DAC 075
|
11
|
385
|
220 / 1 / 50
|
2”
|
782
|
882
|
293
|
375
|
-
|
38
|
DAC 150
|
22
|
770
|
380 / 3 / 50
|
2½”
|
912
|
995
|
363
|
287
|
-
|
51
|
DAC 250
|
36
|
1,260
|
380 / 3 / 50
|
3”
|
965
|
1,430
|
430
|
-
|
1,042
|
76
|
DAC 400
|
61
|
2,129
|
380 / 3 / 50
|
4” FL
|
1,250
|
1,650
|
480
|
-
|
1,200
|
101
|
CAPACITY:
1.8 - 61 M3 /min
AIR CONNECTION:
1” - 5”
MAX. WORKING PRESSURE:
16 Kg/cm2
FLOW RATE REFERS TO:
99°C Inlet
35°C Ambient
+ 10°C Outlet of Ambient Temp.
* Inlet & Outlet for Model # : DAC 015-075
* Inlet for Model # : DAC 150
** Outlet for Model # : DAC 150
** Inlet & Outlet for Model # : DAC 250-400.

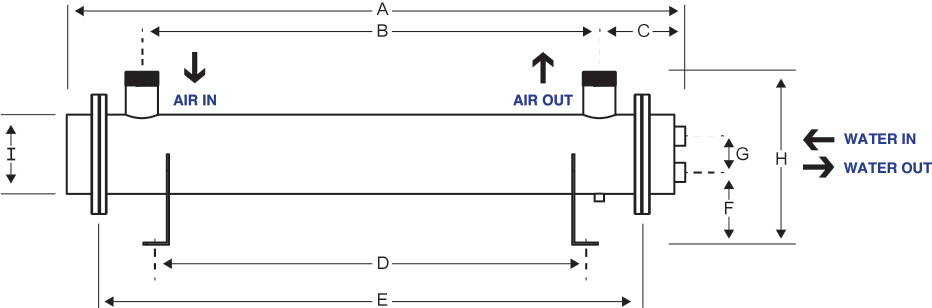

Technical Specifications: WATER COOLED | DAW Series
MODEL #
|
DAW-040
|
DAW-060
|
DAW-125
|
DAW-175
|
DAW-270
|
DAW-350
|
DAW-450
|
DAW-550
|
Air Flow Rate (A)
|
M3/min
|
4.5
|
7
|
16
|
28
|
36
|
48
|
63
|
75
|
Air Flow Rate (B)
|
M3/min
|
5.4
|
8.4
|
19
|
34
|
43
|
58
|
74
|
80
|
Air-in Pipe Size
|
inch
|
1½” PT
|
2” PT
|
2½” PT
|
2½” PT
|
3” PT
|
3” PT
|
4” PT
|
4” PT
|
Air-out Pipe Size
|
inch
|
1½” PT
|
2” PT
|
2½” PT
|
2½” PT
|
3” PT
|
3” PT
|
4” PT
|
4” PT
|
Air-drain Pipe Size
|
inch
|
½” PT
|
½” PT
|
½” PT
|
½” PT
|
½” PT
|
½” PT
|
½” PT
|
½” PT
|
|
A
|
mm
|
780
|
930
|
1,205
|
1,405
|
1,460
|
1,710
|
1,235
|
1,435
|
|
B
|
mm
|
448
|
570
|
795
|
965
|
1,032
|
1,265
|
760
|
660
|
|
C
|
mm
|
181
|
195
|
223
|
238
|
235
|
243
|
260
|
260
|
|
D
|
mm
|
490
|
522
|
742
|
902
|
942
|
1192
|
710
|
910
|
Dimensions
|
E
|
mm
|
600
|
800
|
950
|
110
|
1,300
|
1,500
|
1,000
|
1,200
|
|
F
|
mm
|
140
|
140
|
200
|
200
|
200
|
200
|
174
|
174
|
|
G
|
mm
|
80
|
80
|
100
|
100
|
100
|
100
|
120
|
120
|
|
H
|
inch
|
335
|
335
|
455
|
455
|
478
|
478
|
486
|
486
|
|
I
|
mm
|
6”
|
6”
|
8”
|
8”
|
8”
|
8”
|
10”
|
10”
|
Water-in Pipe Size
|
inch
|
1”
|
1”
|
1”
|
1”
|
1½”
|
1½”
|
2”
|
2”
|
Water-out Pipe Size
|
inch
|
1”
|
1”
|
1”
|
1”
|
1½”
|
1½”
|
2”
|
2”
|
Water Flow Rate
|
L/hr
|
1,800
|
2,100
|
3,800
|
4,500
|
5,500
|
6,300
|
7,600
|
10,000
|
Weight
|
Kg
|
32
|
43
|
83
|
96
|
113
|
130
|
135
|
145
|
MODEL #
|
DAW-650
|
DAW-750
|
DAW-850
|
DAW-950
|
DAW-1200
|
DAW-1700
|
DAW-2500
|
DAW-4000
|
Air Flow Rate (A)
|
M3/min
|
80
|
93
|
116
|
125
|
140
|
180
|
250
|
430
|
Air Flow Rate (B)
|
M3/min
|
92
|
115
|
124
|
141
|
178
|
240
|
275
|
498
|
Air-in Pipe Size
|
inch
|
6” PT
|
6” PT
|
6” PT
|
8” PT
|
8” PT
|
10” PT
|
10” PT
|
12” PT
|
Air-out Pipe Size
|
inch
|
6” PT
|
6” PT
|
6” PT
|
8” PT
|
8” PT
|
10” PT
|
10” PT
|
12” PT
|
Air-drain Pipe Size
|
inch
|
½” PT
|
¾” PT
|
¾” PT
|
¾” PT
|
¾” PT
|
¾” PT
|
¾” PT
|
¾” PT
|
|
A
|
mm
|
1645
|
1835
|
1755
|
1955
|
2155
|
2070
|
2360
|
2500
|
|
B
|
mm
|
1120
|
1310
|
1170
|
1370
|
1570
|
1300
|
1590
|
1500
|
|
C
|
mm
|
285
|
285
|
315
|
315
|
315
|
415
|
415
|
500
|
|
D
|
mm
|
1120
|
1260
|
1170
|
1370
|
1370
|
1241
|
1503
|
1500
|
Dimensions
|
E
|
mm
|
140
|
1600
|
1500
|
1700
|
1900
|
1700
|
1900
|
1900
|
|
F
|
mm
|
174
|
174
|
214
|
214
|
214
|
225
|
225
|
250
|
|
G
|
mm
|
120
|
120
|
150
|
150
|
150
|
156
|
156
|
160
|
|
H
|
inch
|
516
|
516
|
607
|
607
|
607
|
623
|
623
|
730
|
|
I
|
mm
|
10”
|
10”
|
12”
|
12”
|
12”
|
14”
|
14”
|
16”
|
Water-in Pipe Size
|
inch
|
2”
|
2”
|
2”
|
2½”
|
2½”
|
3”
|
3”
|
3”
|
Water-out Pipe Size
|
inch
|
2”
|
2”
|
2”
|
2½”
|
2½”
|
3”
|
3”
|
3”
|
Water Flow Rate
|
L/hr
|
12,000
|
13,000
|
15,500
|
17,000
|
19,000
|
24,000
|
32,000
|
42,000
|
Weight
|
Kg
|
162
|
180
|
220
|
240
|
265
|
295
|
330
|
456
|
(A) Nominal cooling capacity conditions: Cooling Water-in 30 °C, Water-out 36 °C, Air-in 99 °C, Air out 40 °C
(B) Nominal cooling capacity conditions: Cooling Water-in 25 °C, Water-out 30 °C, Air-in 99 °C, Air out 33 °C
Air Pressure 7 Bar - Water Pressure 3 Bar
