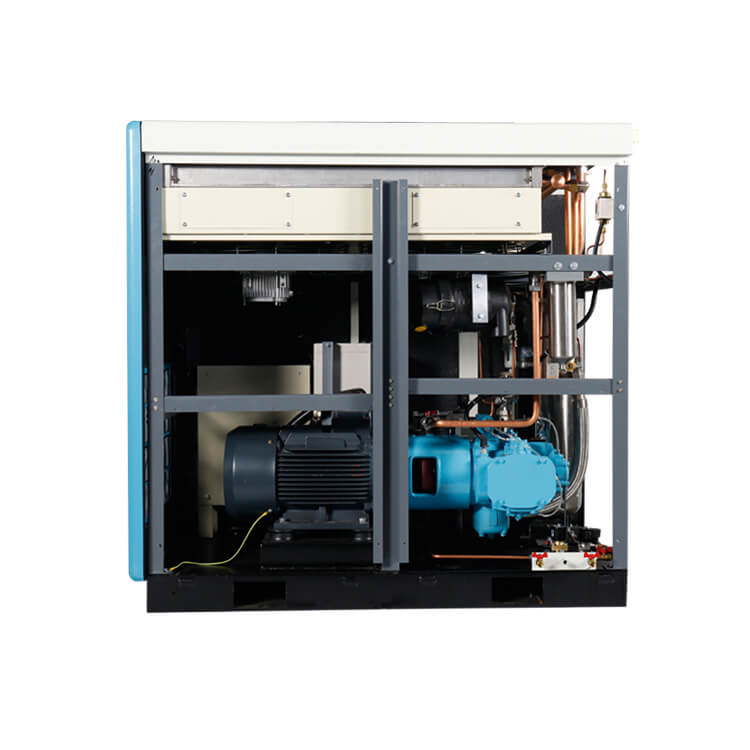

7~10 bar Oil-free Screw Air Compressor 22kw air compressor back

7~10 bar Oil-free Screw Air Compressor air cooling system

7~10 bar Oil-free Screw Air Compressor direct drive motor

7~10 bar Oil-free Screw Air Compressor

(404 đánh giá)
Nhà sản xuất: Typhoon

Nơi sản xuất: N/A

Giá: Gọi liên hệ

Đặt mua ngay

Air Pressure: 7~10 [bar], 101~145[psi], 0.7~1.0[Mpa]

Air Capacity: 0.9~43 [m³/min], 15~717[l/s], 32~1519[cfm]

Working Power: 7.5~250 [kW], 10~340[hp]

Đánh giá của bạn về sản phẩm này:

Sản phẩm cùng danh mục

2~5 bar Oil-free Screw Air Compressor

Air Pressure: 2~5 [bar], 29~72.5[psi], 0.2~0.5[Mpa]

Air Capacity: 2.4~52 [m³/min], 40~867[l/s], 85~1836[cfm]

Working Power: 11~160 [kW], 15~215[hp]

2,3/5 (604 đánh giá)

831 lượt

Gọi liên hệ

30~40 bar Oil-free Screw Air Compressor

Air Pressure: 16~40 [bar], 232~580[psi], 1.6~4.0[Mpa]

Air Capacity: 2~28 [m³/min], 33~467[l/s], 71~1000[cfm]

Working Power: 22~310 [kW], 30~420[hp]

2,3/5 (603 đánh giá)

627 lượt

Gọi liên hệ

Super Energy Saving Series (8~40bar)

Air Pressure: 8~40 [bar], 116~580[psi], 0.8~4.0[Mpa]

Air Capacity: 13~50 [m³/min], 217~833[l/s], 460~1766[cfm]

Working Power: 75~264 [kW], 100~360[hp]

2,4/5 (624 đánh giá)

621 lượt

Gọi liên hệ

7~10 bar Oil-free Screw Air Compressor

Nhà sản xuất: Typhoon

Giá: Gọi liên hệ

Đặt mua ngay

Thông tin sản phẩm

Comparisions

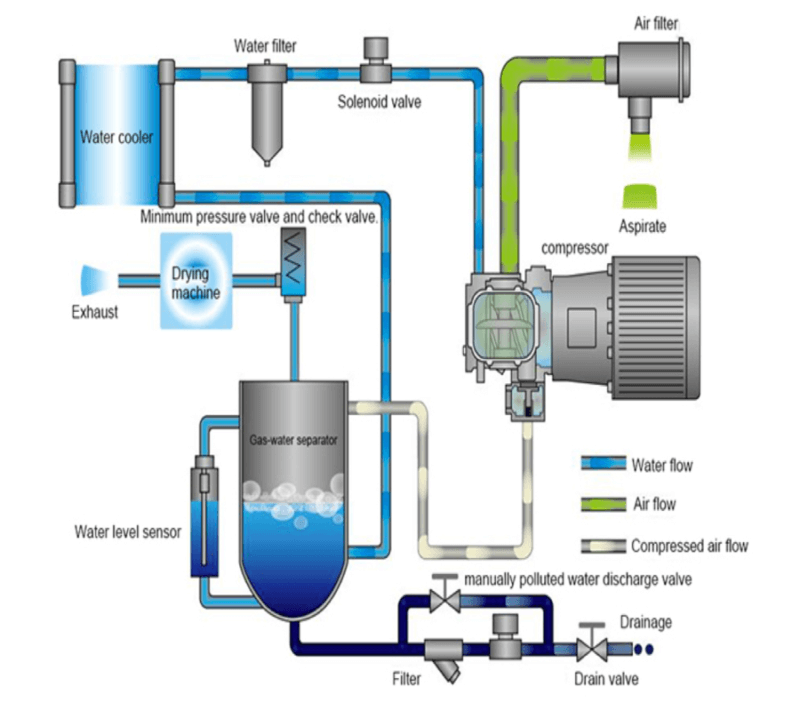

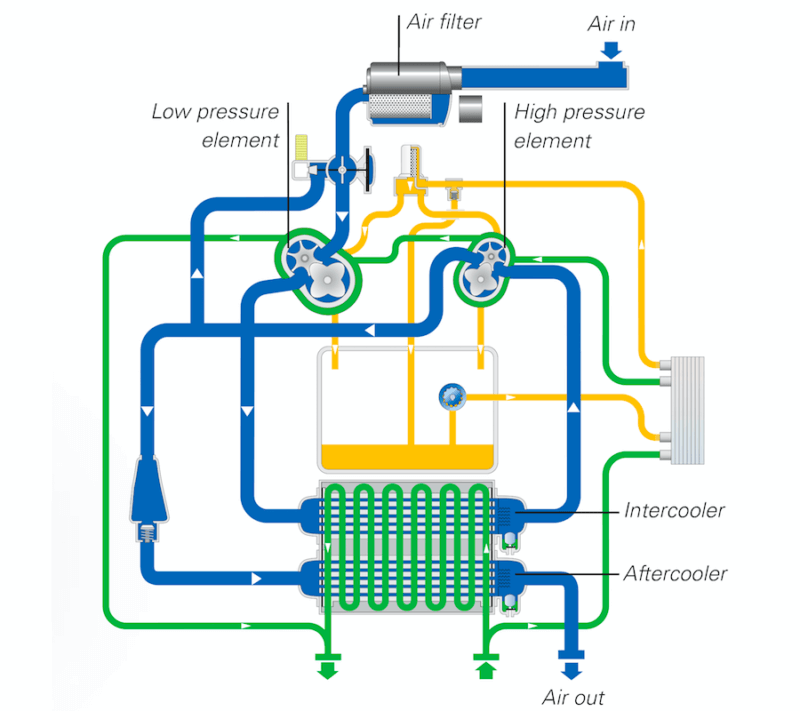

	Water-lubricated Oil-free Single Screw Air Compressor	Dry Oil-free Double Screw Air Compressor
Working Principle	Water-lubricated Oil-free Single Screw	Dry Oil-free Double Screw
Air Quality	100% Oil Free	Oil in the gear
Air Purity	Clear air after purified by water	Contain dust and oil stain
Lubrication Media	Pure Water	Dry
Air Temp	Less than 55℃	About 180~200℃
Compression	Single-Stage	Two-stage
Cooling method	Don’t need cooling system	Need interstage and after Cooling system
Structure	Simple and Balance Structure	Radial load is not balance
Vibration and Noise	Low vibration and noise	High frequency noise due to the two screws
Durability	Ideal Rotation speed 3000r/min, theoretically zero load. Long lifetime of the screw (30000h) and star wheel (50000h)	Rotation speed 18000r/min, high loads on screws. Short lifetime of screw (8000~18000h)
Maintenance	Only air and water filter elements	More spare parts

Parameters

7~10bar Water-lubricated Oil-free Screw Air Compressor(VSD/PM VSD)

Model	Pressure	Capacity	Power	Noise	Dimension(mm)	Weight
OTVS08F	7 bar 8.5bar 10bar	1.3m³/min 1.1m³/min 0.9m³/min	7.5 kW 10 HP	57dB	1100×750×1320	430kg
OTVS11F	7 bar 8.5bar 10bar	1.7m³/min 1.5m³/min 1.3m³/min	11 kW 15 HP	57dB	1100×750×1320	450kg
OTVS15F	7 bar 8.5bar 10bar	2.5m³/min 2.2m³/min 2.0m³/min	15 kW 20 HP	57dB	1590×870×1500	570kg
OTVS18F	7 bar 8.5bar 10bar	3.2m³/min 2.8m³/min 2.5m³/min	18.5kW 25 HP	58dB	1590×870×1500	620kg
OTVS22F	7 bar 8.5bar 10bar	3.7m³/min 3.4m³/min 3.0m³/min	22 kW 30 HP	60dB	1590×870×1500	640kg
OTVS30F	7 bar 8.5bar 10bar	5.3m³/min 4.7m³/min 4.3m³/min	30 kW 40 HP	61dB	1690×1000×1600	980kg
OTVS37F	7 bar 8.5bar 10bar	6.2m³/min 5.6m³/min 5.0m³/min	37 kW 45 HP	61dB	1690×1000×1600	1010kg
OTVS45F	7 bar 8.5bar 10bar	7.6m³/min 6.8m³/min 6.0m³/min	45 kW 60 HP	65dB	2350×1250×1750	1110kg
OTVS55F	7 bar 8.5bar 10bar	10.0m³/min 9.0m³/min 7.8m³/min	55 kW 75 HP	67dB	2350×1250×1750	1200kg
OTVS75F	7 bar 8.5bar 10bar	13.0m³/min 12.0m³/min 10.0m³/min	75 kW 100HP	71dB	2800×1450×1900	1550kg
OTVS90S	7 bar 8.5bar 10bar	16.8m³/min 15.0m³/min 14.0m³/min	90 kW 120HP	72dB	2450×1450×1700	2250kg
OTVS110S	7 bar 8.5bar 10bar	20.0m³/min 18.5m³/min 16.0m³/min	110kW 150HP	74dB	2450×1450×1700	2450kg
OTVS132S	7 bar 8.5bar 10bar	25.0m³/min 23.0m³/min 20.0m³/min	132kW 180HP	77dB	2450×1450×1700	2450kg
OTVS160S	7 bar 8.5bar 10bar	27.0m³/min 25.5m³/min 24.0m³/min	160kW 215HP	78dB	2800×1500×1900	2600kg
OTVS1855S	7 bar 8.5bar 10bar	33.8m³/min 31.0m³/min 28.8m³/min	185kW 250HP	78dB	2800×1500×1900	3000kg
OTVS250S	7 bar 8.5bar 10bar	43.0m³/min 41.0m³/min 38.8m³/min	250kW 340HP	79dB	3100×2250×2200	4500kg

Details

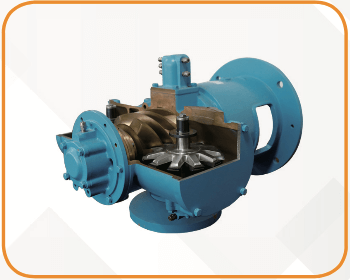

Air end

Since 1988

Material: Stainless steel, copper alloy, polymers

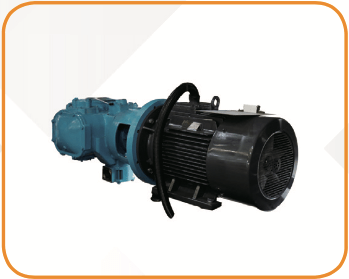

Motor

Direct Drive

Insulation Class: F Protection Level: IP55 Bearing: SKF

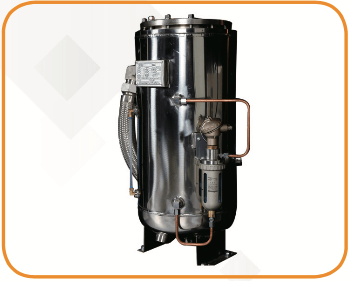

Separator

Clean and Safe air

Material: Medical Stainless steel

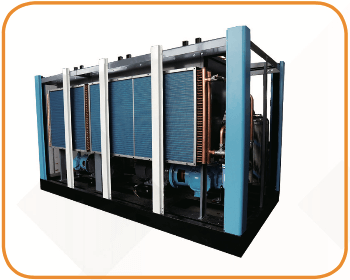

Cooler

High Efficiency

Material: Copper Best Quality and Structure

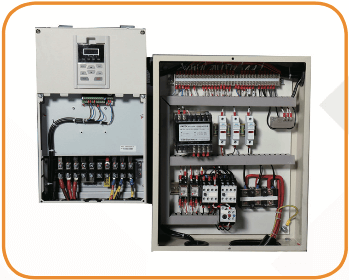

Inverter & Electric

Inverter/PLC: Inovance

Thermal relay/ A.C. Contractor: Siemens

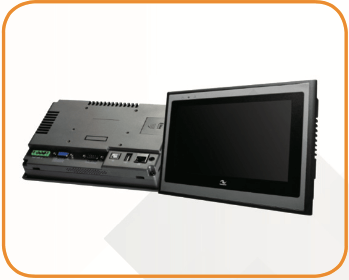

Control Pannel

Brand: Inovance

Display all operation parameters and alarm system

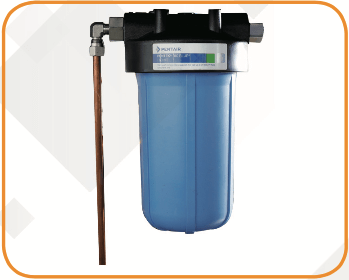

Water Softener

Brand: Pentair

Offer pure lubricating water and extend the service life of air end

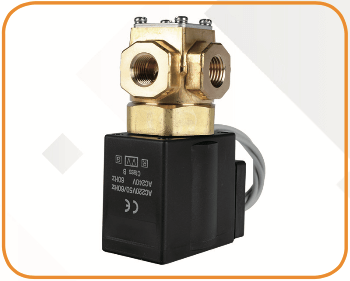

Control Valve

Brand: SMC

Imported famous brand component to ensure the stability

Advantages

100% OIL-FREE

– More than 20 years experiences in Water-lubricated Oil-free technology

– Germany Rhineland TUV Class 0 Oil-free Certification

MOST RELIABLE

– More than 30 years experiences in Single Screw Technology

– Most balance and reliable structure

– Low temperature(< 55℃) reduces the stress on components

LOWEST MAINTENANCE

– Use Water as lubricating medium instead of oil

– Without Oil Air Separation Unit

– Consumable parts are only air and water filter elements

ENERGY SAVING >30%

– Ideal Speed (3000r/min)

– Ideal isothermal compression and no heat waste (<55℃)

– Most Advanced VSD and Two-stage compression technology

LOWEST NOISE

– Super dynamic balanced system and low vibration

– The motor and screw are directly connected without any gear

– Sound absorbing materials are also used in the shell
