2~5 bar Oil-free Screw Air Compressor 22kw air compressor back

2~5 bar Oil-free Screw Air Compressor air-cooling-system

2~5 bar Oil-free Screw Air Compressor direct drive motor

2~5 bar Oil-free Screw Air Compressor main case

2~5 bar Oil-free Screw Air Compressor

(604 đánh giá)
Nhà sản xuất: Typhoon

Nơi sản xuất: N/A

Giá: Gọi liên hệ

Đặt mua ngay

Air Pressure: 2~5 [bar], 29~72.5[psi], 0.2~0.5[Mpa]

Air Capacity: 2.4~52 [m³/min], 40~867[l/s], 85~1836[cfm]

Working Power: 11~160 [kW], 15~215[hp]

Đánh giá của bạn về sản phẩm này:

Sản phẩm cùng danh mục

7~10 bar Oil-free Screw Air Compressor

Air Pressure: 7~10 [bar], 101~145[psi], 0.7~1.0[Mpa]

Air Capacity: 0.9~43 [m³/min], 15~717[l/s], 32~1519[cfm]

Working Power: 7.5~250 [kW], 10~340[hp]

2,5/5 (404 đánh giá)

744 lượt

Gọi liên hệ

30~40 bar Oil-free Screw Air Compressor

Air Pressure: 16~40 [bar], 232~580[psi], 1.6~4.0[Mpa]

Air Capacity: 2~28 [m³/min], 33~467[l/s], 71~1000[cfm]

Working Power: 22~310 [kW], 30~420[hp]

2,3/5 (603 đánh giá)

627 lượt

Gọi liên hệ

Super Energy Saving Series (8~40bar)

Air Pressure: 8~40 [bar], 116~580[psi], 0.8~4.0[Mpa]

Air Capacity: 13~50 [m³/min], 217~833[l/s], 460~1766[cfm]

Working Power: 75~264 [kW], 100~360[hp]

2,4/5 (624 đánh giá)

621 lượt

Gọi liên hệ

2~5 bar Oil-free Screw Air Compressor

Nhà sản xuất: Typhoon

Giá: Gọi liên hệ

Đặt mua ngay

Thông tin sản phẩm

Comparisions

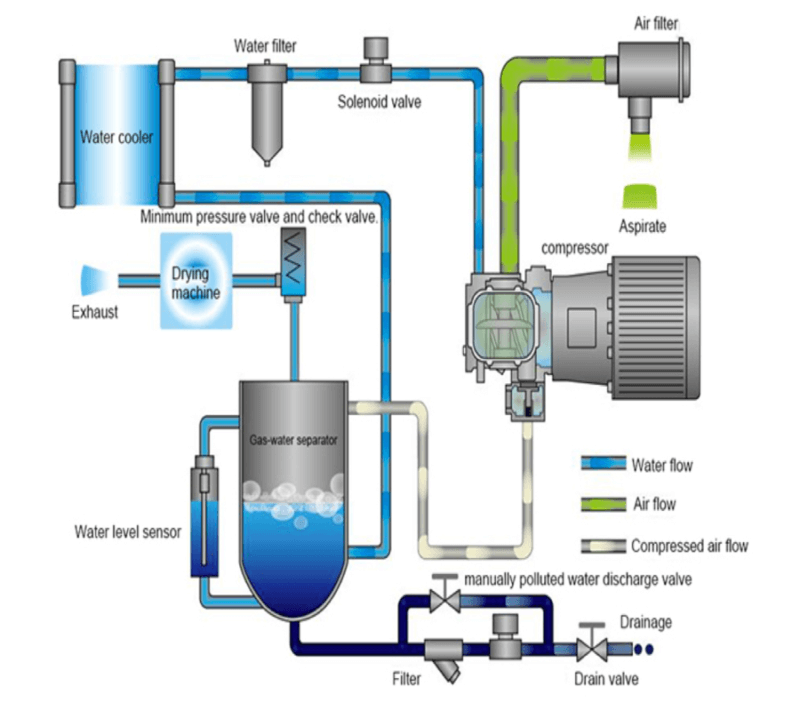

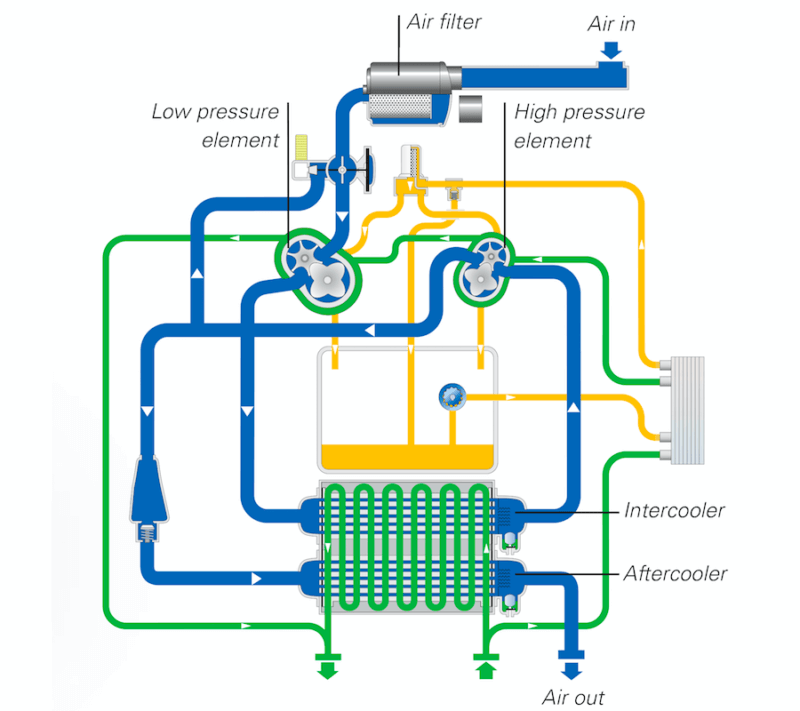

	Water-lubricated Oil-free Single Screw Air Compressor	Dry Oil-free Double Screw Air Compressor
Working Principle	Water-lubricated Oil-free Single Screw	Dry Oil-free Double Screw
Air Quality	100% Oil Free	Oil in the gear
Air Purity	Clear air after purified by water	Contain dust and oil stain
Lubrication Media	Pure Water	Dry
Air Temp	Less than 55℃	About 180~200℃
Compression	Single-Stage	Two-stage
Cooling method	Don’t need cooling system	Need interstage and after Cooling system
Structure	Simple and Balance Structure	Radial load is not balance
Vibration and Noise	Low vibration and noise	High frequency noise due to the two screws
Durability	Ideal Rotation speed 3000r/min, theoretically zero load. Long lifetime of the screw (30000h) and star wheel (50000h)	Rotation speed 18000r/min, high loads on screws. Short lifetime of screw (8000~18000h)
Maintenance	Only air and water filter elements	More spare parts

Parameters

Low-pressure 2~5 bar Screw Air Compressor(VSD/PM VSD)

Model	Pressure	Capacity	Power	Noise	Dimension(mm)	Weight
OTVS11FD	3 bar	3.0m³/min	11 kW	58 dB	1400×820×1500	620kg
OTVS15FD	3 bar	4.3m³/min	15 kW	60 dB	1690×1000×1600	650kg
OTVS22FD	3 bar	6.1m³/min	22 kW	61 dB	1950×1150×1670	1010kg
OTVS37F(S)D	3 bar	10.0m³/min	37 kW	65 dB	2350×1250×1750	1200kg
OTVS45F(S)D	3 bar	13.5m³/min	45 kW	70 dB	2350×1250×1750	1500kg
OTVS55F(S)D	3 bar	17.5m³/min	55 kW	71 dB	2700×1450×2000	2200kg
OTVS75F(S)D	3 bar	23.0m³/min	75 kW	75 dB	2700×1450×2000	2450kg
OTVS90F(S)D	3 bar	27.0m³/min	90 kW	77 dB	3600×1900×2000	2600kg
OTVS110F(S)D	3 bar	33.8m³/min	110kW	78 dB	3700×2000×2250	3000kg
OTVS132F(S)D	3 bar	45.0m³/min	132kW	78 dB	4000×2000×2400	4500kg
OTVS160F(S)D	3 bar	52.0m³/min	160kW	79 dB	4100×2050×2300	5000kg
OTVS11FD	4 bar	2.4m³/min	11 kW	58 dB	1400×820×1500	620kg
OTVS15FD	4 bar	3.7m³/min	15 kW	60 dB	1690×1000×1600	650kg
OTVS22FD	4 bar	5.0m³/min	22 kW	61 dB	1950×1150×1670	1010kg
OTVS37F(S)D	4 bar	8.5m³/min	37 kW	65 dB	2350×1250×1750	1200kg
OTVS45F(S)D	4 bar	10.0m³/min	45 kW	70 dB	2350×1250×1750	1500kg
OTVS55F(S)D	4 bar	13.5m³/min	55 kW	71 dB	2700×1450×2000	2200kg
OTVS75F(S)D	4 bar	20.0m³/min	75 kW	75 dB	2700×1450×2000	2450kg
OTVS90F(S)D	4 bar	24.0m³/min	90 kW	77 dB	3600×1900×2000	2600kg
OTVS110F(S)D	4 bar	28.0m³/min	110kW	78 dB	3700×2000×2250	3000kg
OTVS132F(S)D	4 bar	35.0m³/min	132kW	78 dB	4000×2000×2400	4500kg
OTVS160F(S)D	4 bar	43.0m³/min	160kW	79 dB	4100×2050×2300	5000kg

Details

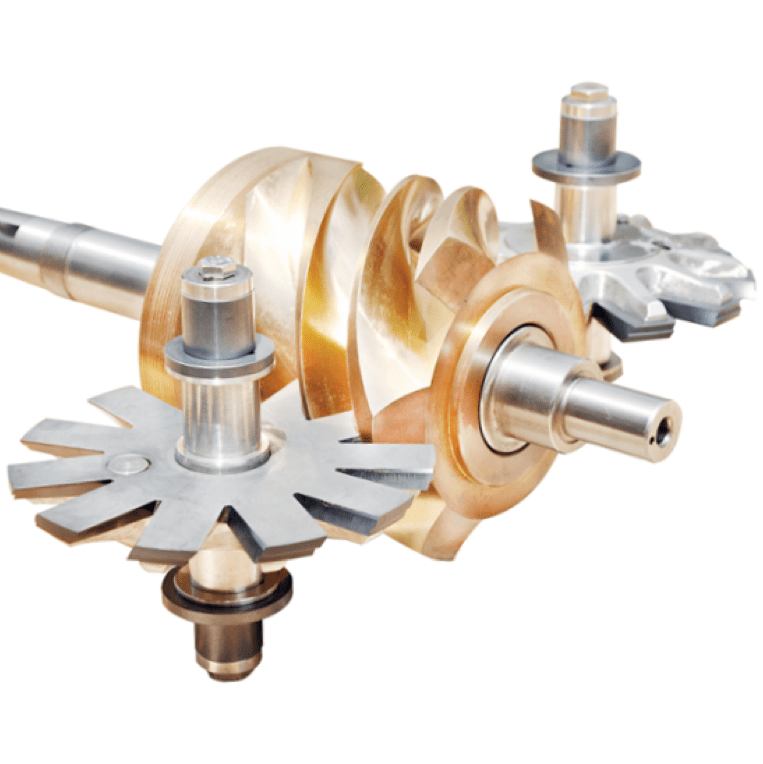

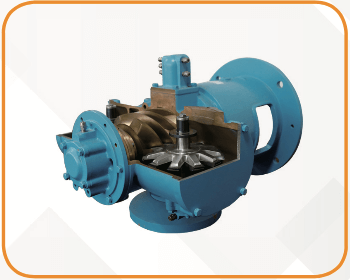

Air end

Since 1988

Material: Stainless steel, copper alloy, polymers

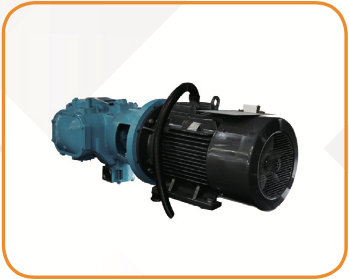

Motor

Direct Drive

Insulation Class: F Protection Level: IP55 Bearing: SKF

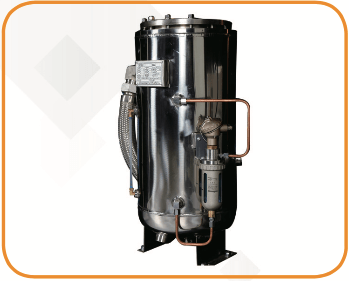

Separator

Clean and Safe air

Material: Medical Stainless steel

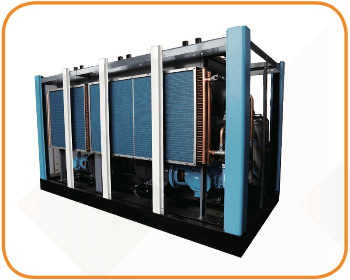

Cooler

High Efficiency

Material: Copper Best Quality and Structure

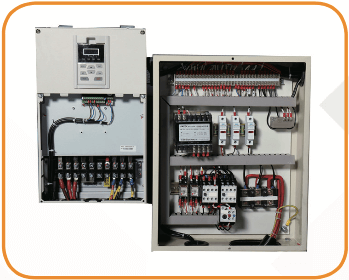

Inverter & Electric

Inverter/PLC: Inovance

Thermal relay/ A.C. Contractor: Siemens

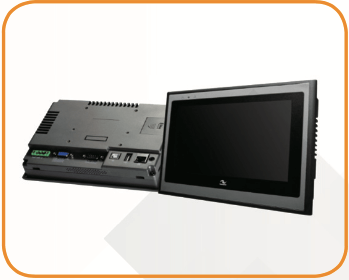

Control Pannel

Brand: Inovance

Display all operation parameters and alarm system

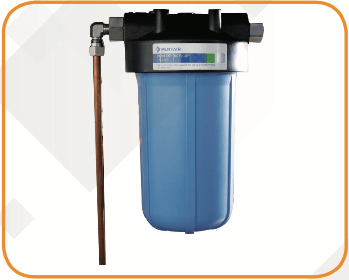

Water Softener

Brand: Pentair

Offer pure lubricating water and extend the service life of air end

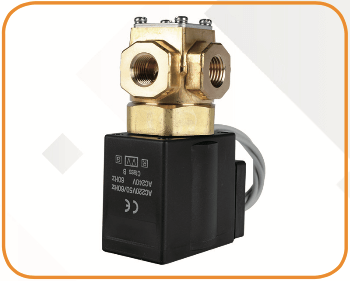

Control Valve

Brand: SMC

Imported famous brand component to ensure the stability

Advantages

100% OIL-FREE

– More than 20 years experiences in Water-lubricated Oil-free technology

– Germany Rhineland TUV Class 0 Oil-free Certification

MOST RELIABLE

– More than 30 years experiences in Single Screw Technology

– Most balance and reliable structure

– Low temperature(< 55℃) reduces the stress on components

LOWEST MAINTENANCE

– Use Water as lubricating medium instead of oil

– Without Oil Air Separation Unit

– Consumable parts are only air and water filter elements

ENERGY SAVING >30%

– Ideal Speed (3000r/min)

– Ideal isothermal compression and no heat waste (<55℃)

– Most Advanced VSD and Two-stage compression technology

LOWEST NOISE

– Super dynamic balanced system and low vibration

– The motor and screw are directly connected without any gear

– Sound absorbing materials are also used in the shell
