30~40 bar Oil-free Screw Air Compressor air cooling system

30~40 bar Oil-free Screw Air Compressor air cooling system 2

30~40 bar Oil-free Screw Air Compressor back

30~40 bar Oil-free Screw Air Compressor direct drive motor

30~40 bar Oil-free Screw Air Compressor front

30~40 bar Oil-free Screw Air Compressor sing screw air end

30~40 bar Oil-free Screw Air Compressor

(603 đánh giá)
Nhà sản xuất: Typhoon

Nơi sản xuất: N/A

Giá: Gọi liên hệ

Đặt mua ngay

Air Pressure: 16~40 [bar], 232~580[psi], 1.6~4.0[Mpa]

Air Capacity: 2~28 [m³/min], 33~467[l/s], 71~1000[cfm]

Working Power: 22~310 [kW], 30~420[hp]

Đánh giá của bạn về sản phẩm này:

Sản phẩm cùng danh mục

7~10 bar Oil-free Screw Air Compressor

Air Pressure: 7~10 [bar], 101~145[psi], 0.7~1.0[Mpa]

Air Capacity: 0.9~43 [m³/min], 15~717[l/s], 32~1519[cfm]

Working Power: 7.5~250 [kW], 10~340[hp]

2,5/5 (404 đánh giá)

732 lượt

Gọi liên hệ

2~5 bar Oil-free Screw Air Compressor

Air Pressure: 2~5 [bar], 29~72.5[psi], 0.2~0.5[Mpa]

Air Capacity: 2.4~52 [m³/min], 40~867[l/s], 85~1836[cfm]

Working Power: 11~160 [kW], 15~215[hp]

2,3/5 (604 đánh giá)

820 lượt

Gọi liên hệ

Super Energy Saving Series (8~40bar)

Air Pressure: 8~40 [bar], 116~580[psi], 0.8~4.0[Mpa]

Air Capacity: 13~50 [m³/min], 217~833[l/s], 460~1766[cfm]

Working Power: 75~264 [kW], 100~360[hp]

2,4/5 (624 đánh giá)

604 lượt

Gọi liên hệ

30~40 bar Oil-free Screw Air Compressor

Nhà sản xuất: Typhoon

Giá: Gọi liên hệ

Đặt mua ngay

Thông tin sản phẩm

Comparisions

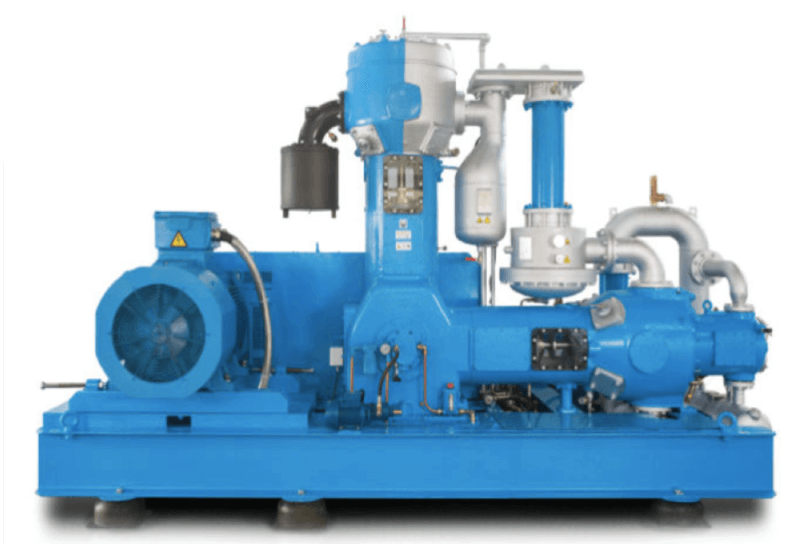

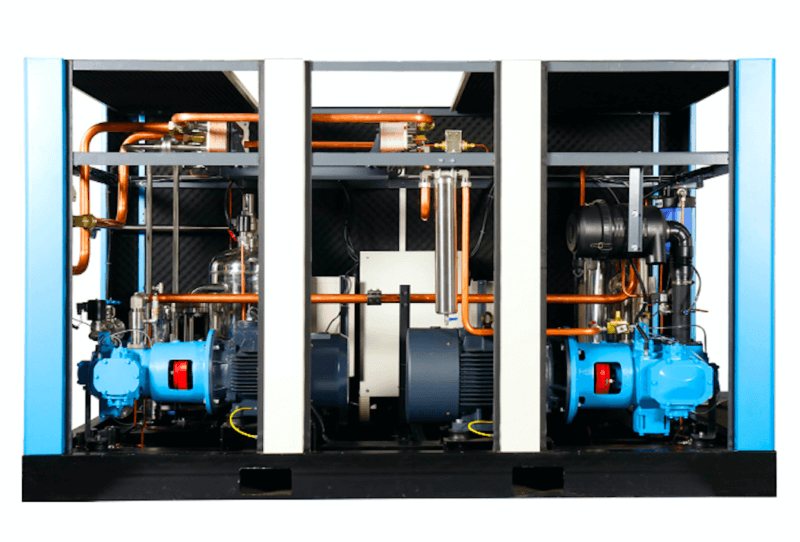

	Screw Air Compressor	Piston Air Compressor
30~40bar Air Compressor	Oil free Screw Air Compressor	Oil free Piston Air Compressor
Air quality	Oil free (TUV Class 0 Certificate)	Air cylinder Oil free, Crankcase has oil
Compression Method	2 Stage Screw	3 Stage Piston
Lubricating Medium	Pure Water	None
Temperature	Low: < 55℃, No need for cooling	High: 125~200℃, After cooling about 60℃
Cooling Method	Air Cooled or Water Cooled (Only one cooler for lubricating water)	Water Cooled (Two interstage cooler and one after cooler for compressed air)
Rotate Speed	3000 r/min Ideal Speed	600~900 r/min Low Speed
Vibration and Noise	Balance and Simple structure, low vibration and less noise	The pistons rise and fall or move back and forth causing too much vibration and Noise

Costs – Purchasing	More	Less
Costs – Foundation	No costs	Require foundation and grouting due to high unbalanced forces & high vibration.
Costs – Maintenance	Only Air filter elements and Water filter elements	High wear & tear of moving parts like piston rings, valves, etc.
Costs – Energy	Motor Power: 112kW (1st stage 75kW+2nd stage 37kW) (e.g. 40bar 10m3/min)	Motor Power: 132kW (e.g. 40bar 10m3/min)
Capacity Loss	There is no loss / very minor loss in Capacity over a period.	There is De-ration in Capacity due to wear and tear in-cylinder crankcase, piston rings, pistons, and valves.

Parameters

High-pressure 30~40bar PET Screw Air Compressor

Model	Pressure	Capacity	Power	Noise	Dimension(mm)	Weight
OTVSE22F(S)	30 bar	2.0m³/min	11+11kW	65dB	3000×1400×1700	1650kg
OTVSE22F(S)	30 bar	2.0m³/min	11+11kW	65dB	2900×1400×1700	1250kg
OTVSE37F(S)	30 bar	3.7m³/min	30+11kW	65dB	3000×1400×1700	1650kg
OTVSE37F(S)	30 bar	3.7m³/min	30+11kW	65dB	2900×1400×1700	1250kg
OTVSE45F(S)	30 bar	4.5m³/min	30+15kW	65dB	3000×1400×1700	1700kg
OTVSE45F(S)	30 bar	4.5m³/min	30+15kW	65dB	2900×1400×1700	1400kg
OTVSE60F(S)	30 bar	6 m³/min	37+22kW	70dB	3000×1400×1700	2000kg
OTVSE60F(S)	30 bar	6 m³/min	37+22kW	70dB	2900×1400×1700	2000kg
OTVSE90F(S)	30 bar	10m³/min	55+37kW	73dB	3600×1750×2000	3000kg
OTVSE90F(S)	30 bar	10m³/min	55+37kW	73dB	3500×1500×1730	2300kg
OTVSE120F(S)	30 bar	13m³/min	75+45kW	75dB	4000×1750×2000	3500kg
OTVSE120F(S)	30 bar	13m³/min	75+45kW	75dB	3500×1500×1730	2950kg
OTVSE145S	30 bar	16m³/min	90+55kW	77dB	4000×1700×1800	3500kg
OTVSE185S	30 bar	20m³/min	110+75kW	78dB	4000×1700×1800	4000kg
OTVSE220S	30 bar	24m³/min	132+90kW	78dB	4000×1800×2100	4500kg
OTVSE260S	30 bar	28m³/min	185+75kW	78dB	4200×2000×2100	4700kg
OTVSE315S	30 bar	36m³/min	185+132kW	80dB	4500×2250×2200	5000kg
OTVSE355S	30 bar	40m³/min	220+132kW	80dB	4500×2250×2200	5000kg

Details

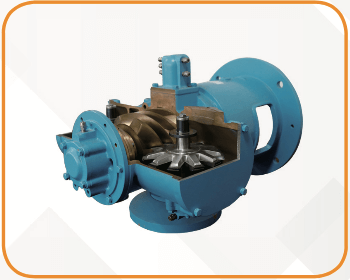

Air end

Since 1988

Material: Stainless steel, copper alloy, polymers

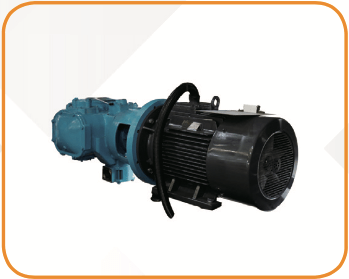

Motor

Direct Drive

Insulation Class: F Protection Level: IP55 Bearing: SKF

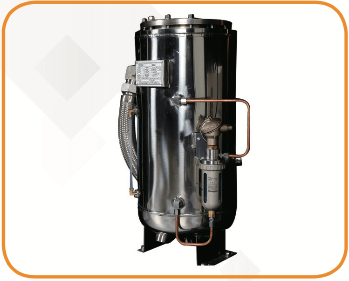

Separator

Clean and Safe air

Material: Medical Stainless steel

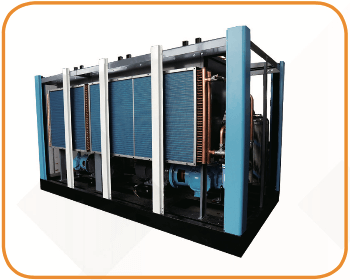

Cooler

High Efficiency

Material: Copper Best Quality and Structure

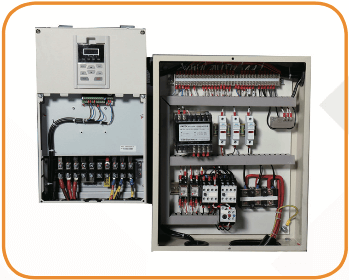

Inverter & Electric

Inverter/PLC: Inovance

Thermal relay/ A.C. Contractor: Siemens

Control Pannel

Brand: Inovance

Display all operation parameters and alarm system

Water Softener

Brand: Pentair

Offer pure lubricating water and extend the service life of air end

Control Valve

Brand: SMC

Imported famous brand component to ensure the stability

Advantages

100% OIL-FREE

– More than 20 years experiences in Water-lubricated Oil-free technology

– Germany Rhineland TUV Class 0 Oil-free Certification

MOST RELIABLE

– More than 30 years experiences in Single Screw Technology

– Most balance and reliable structure

– Low temperature(< 55℃) reduces the stress on components

LOWEST MAINTENANCE

– Use Water as lubricating medium instead of oil

– Without Oil Air Separation Unit

– Consumable parts are only air and water filter elements

ENERGY SAVING >30%

– Ideal Speed (3000r/min)

– Ideal isothermal compression and no heat waste (<55℃)

– Most Advanced VSD and Two-stage compression technology

LOWEST NOISE

– Super dynamic balanced system and low vibration

– The motor and screw are directly connected without any gear

– Sound absorbing materials are also used in the shell
