TRF Compressed Air Filters

  • (955 votes)
  • Manufacturer: Typhoon

Made in: N/A

Price: Call us

Views: 771

Buy now

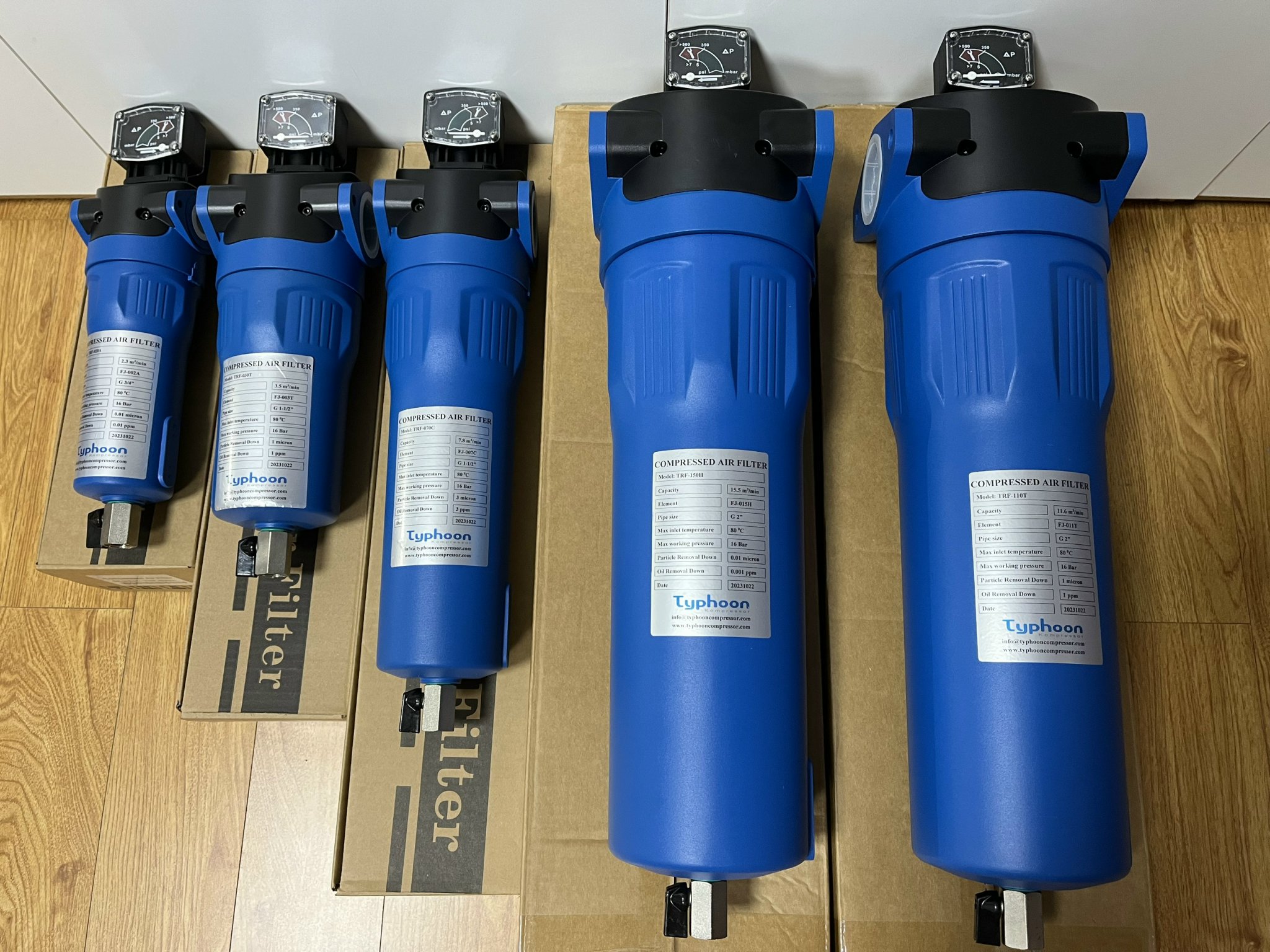

High performance filters designed to remove impurities (water, oil, particles) contained in compressed air networks. Thanks to their many options (differential pressure gauge, anti-seize thread, depressurization orifice, condensate sight glass) and their optimal finish (aluminum and bronze body, epoxy paint), they are the best solution for the filtration of your networks.

Vote product:

Same product category

Description



High Quality Refrigerant Compressor

Rated working pressure:0.8MPa
Thread Type :
Max. working Pressure : 1.6MPa
Max. working temperature : 66 ℃
Min. working temperature : 1.5 ℃
* filter grade: C, T, A, H
Level C Prefilter: 3 microns, oil content: 3 ppm
Level T Fine Filter: 1 micron, oil content: 1 ppm
Level A Micro filter: 0.01 micron,oil content: 0.01 ppm
Level H Activated carbon filter: 0.01 micron, Oil content: 0.001 ppm



Model

Capacity

(m³/min)

Connection

Filter Element

Dimension (mm)

W

H

TRF-010*

1.2

Rc1/2"

JF-010*

95

240

TRF-020*

2.4

Rc3/4"

JF-020*

95

280

TRF-030*

3.6

Rc1"

JF-030*

125

302

TRF-050*

5.7

Rc1-1/2"

JF-050*

125

421

TRF-070*

7.8

Rc1-1/2"

JF-070*

125

421

TRF-110*

11.6

Rc2"

JF-110*

175

550

TRF-150*

15.5

Rc2"

JF-0150*

175

550

TRF-200*

20.8

DN65

JFX-200*

438

640

TRF-250*

25.3

DN65

JFX-250*

438

640

TRF-300*

30.8

DN80

JFX-300*

438

792

TRF-400*

40.5

DN100

JFX-400*

450

840



High Quality Refrigerant Compressor

Rated working pressure:0.8MPa
Thread Type :
Max. working Pressure : 1.6MPa
Max. working temperature : 66 ℃
Min. working temperature : 1.5 ℃
* filter grade: C, T, A, H
Level C Prefilter: 3 microns, oil content: 3 ppm
Level T Fine Filter: 1 micron, oil content: 1 ppm
Level A Micro filter: 0.01 micron,oil content: 0.01 ppm
Level H Activated carbon filter: 0.01 micron, Oil content: 0.001 ppm
