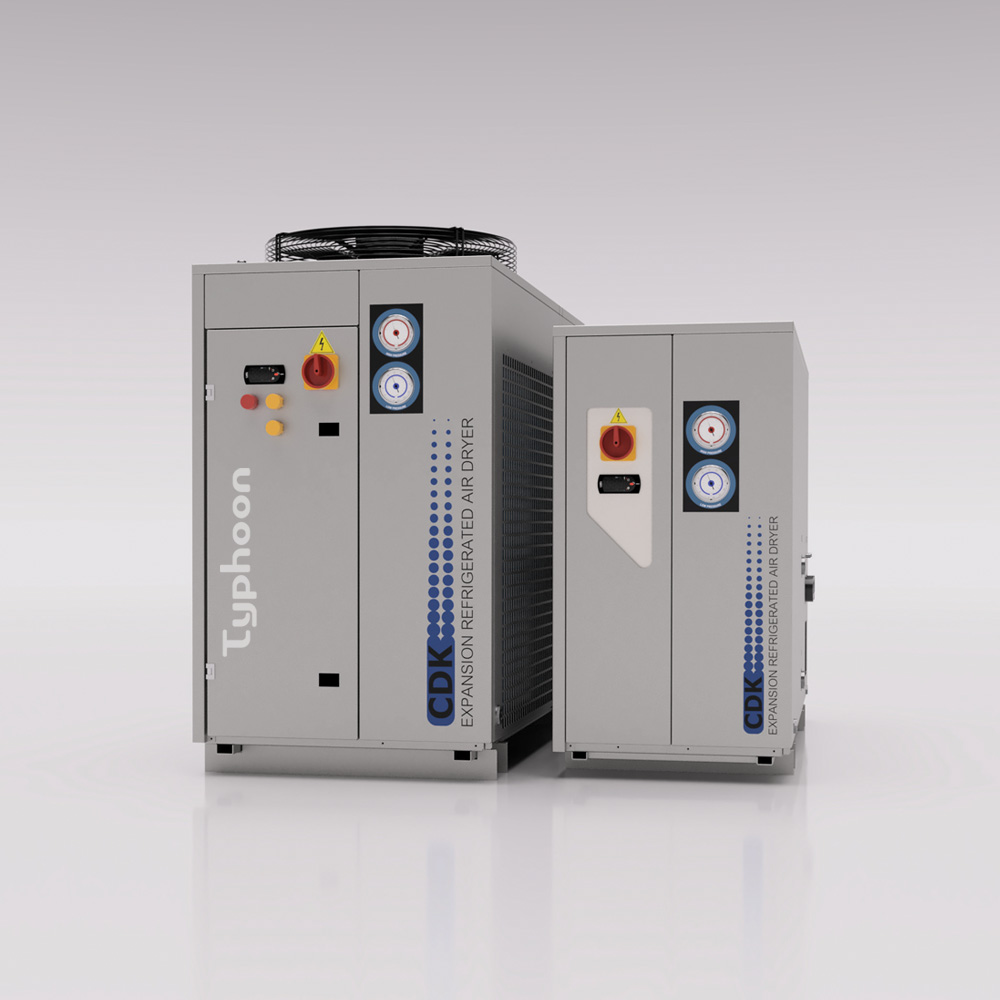

CDK-SA / SW Series Refrigerated Air Dryer

  • (1 votes)

Made in: N/A

Price: Call us

Views: 707

Buy now

CDK-SA / SW Series Refrigerated Air Dryer offers the best solutions to minimize energy loss, reduce corrosion level, prolong life of compressed air systems and decrease maintenance costs.

Vote product:

Same product category

Description

About TyphoonCompressor Refrigerated Air Dryer

In compressed air systems, moisture is a huge problem and the prevention of corrosion caused by condensed water is an important issue. This is a critical factor as moisture and corrosion would minimize the performance and shorten the lifetime of compressed air systems and pneumatically controlled tools and equipment. To prevent this problem from occurring, the air dryer is the most commonly used solution. In these kinds of equipment, the main problems which affect the performance of compressed air systems are high volume, high pressure loss and complicated traditional types of heat exchangers which are not efficient. For this, TyphoonCompressor has successfully integrated the Brazed Heat Exchanger into our dryer system. This technology is supported by complete research and proven test data and the unique design has enabled TyphoonCompressor to obtain is being patented in France, USA, Taiwan and Southeast Asia.

Powerful Condenser

Our refrigerated air dryers offer a reliable, cost effective and simple solution to avoid condensation and corrosion in your systems.

Energy Saving

Fitted with Digital Scroll Compressors which adapt their refrigeration production according to of the thermal load to be dissipated, and allow great energy saving.

Easy to Maintain

On the rare occasion when servicing is needed, the enclosure design allows for direct access to all components allowing for easy maintenance of the dryer.

CDK-SA / SW Series Refrigerated Air Dryer Structure
MODEL CDK-SA 200

1. Stainless Steel Plate Heat Exchanger

  • UL / CE / PED Certified
  • Long life time durability
  • Corrosion Resistant
  • High Thermal Transfer Efficiancy Compact
  • Easy Installation
  • Proven and Reliable Quality
  • Flexible Flows and Temp / Monitor Option

2. UL/CE Condenser Fan

Provide qualified cooling fans with UL/CE safety certification for long using life.

3. Easy to Operate CAREL Control Panel

The advance digital display allows TyphoonCompressor's dryer operation to be easily monitored at a glance.

4. High Quality Refrigerant Compressor

Hermetic, suction gas is cooled and protected against thermal and current overloads. the compressor is mounted on anti-vibration rubber supports to ensure quiet running of the dryer.

5. Reliable Solenoid Valve

TyphoonCompressor’s reliable solenoid valve is standard in all models. The discharge and pause timers are adjustable via the CAREL control panel. The flexible and adaptable operation of the valve ensures effective discharge of condensates.

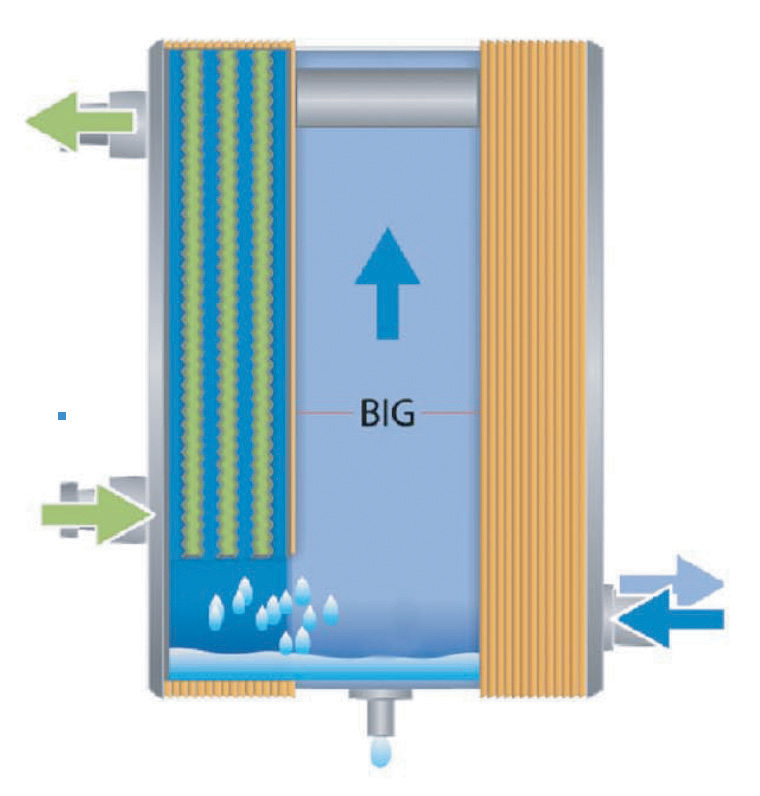

The main advantage of Plate Heat Exchanger

A 3 in 1 configuration, the air-to-air exchanger,evaporators and demister separator are combined in one module.

This ensures a very compact, robust and energy efficient design.

High efficiency heat transfer performance.

Unique patents for cross-flow design features with the condensate being separated as soon as it is created along the cooling path.

Energy saving application due to low pressure drop.

Simple and easy maintenance.

Dry air down to 3 ˚C pressure dew point at outlet

The main advantage of Plate Heat Exchanger
CDK-SA / SW Series Refrigerated Air Dryer Inside

UL / CE / PED Certified

Long life time durability

Corrosion Resistant

High Thermal Transfer Efficiancy

Easy Installation

Proven and Reliable Quality

Flexible Flows and Temp / Monitor Option

Compact

Unique Design Separator

TyphoonCompressor's distinct non-mesh design separator has advantages of lower pressure drop, clogging free, maintenance free, and longer service life than other heat exchangers.

Oil Blockage Free

Patented plate design of evaporator, shorten the flow path of refrigerant by 30%, with the smooth surface of SUS 304, TyphoonCompressor can prevent lubricant oil residual which happens frequently in aluminum plate fin heat exchangers.

No Ice Blockage

With TyphoonCompressor patented plate design of evaporator, condensed water will not remain on the plates, but directly enters to a separation space of the evaporator, which effectively reduce the risk of ice blockage. (Need to check the drain valve regularly).

Equipped with Patented Leakage Testing Connector

Leading and multinational patent technology, exclusively ensures excellent quality of TyphoonCompressor 3-in-1 brazed plate heat exchanger.residual which happens frequently in alumi-num plate fin heat exchangers.

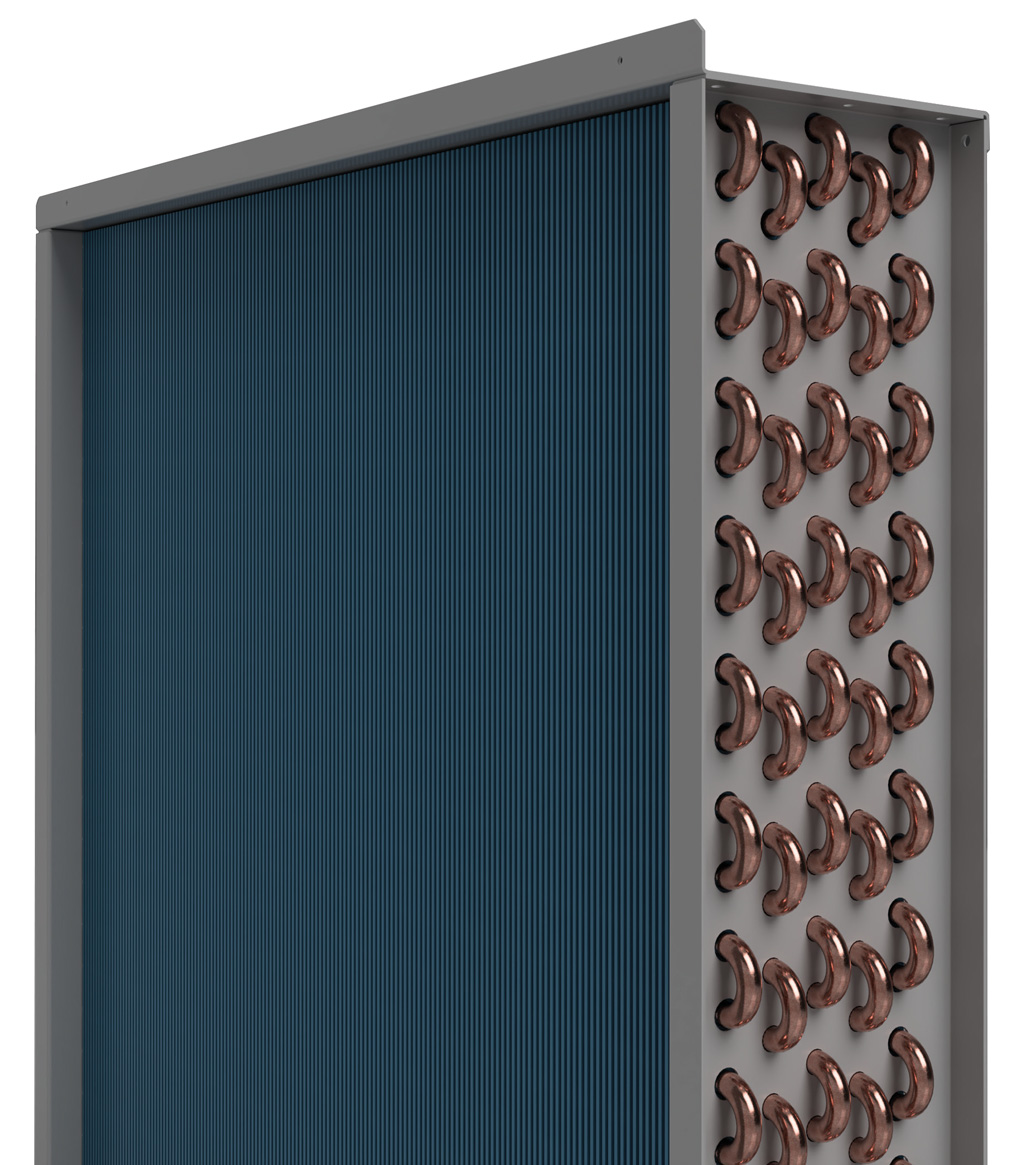

Powerful Blue Fin Air Condenser

TyphoonCompressor’s large surface area heat exchanger contributes to higher performance on our refridgerated air dryers when compaired to other machines on the market.

Our anti-corrosive blue fins protect the condenser coils from different types of corrosion caused due to moisture, humidity, harsh weather conditions.

While improving the heat transfer process and increasing the cooling capacity, The blue-fin technology enhances the durability and longevity of TyphoonCompressor’s Air Dryers.

Powerful Blue Fin Air Condenser

Easy to Install

TyphoonCompressor's compact design and well-structured component layout provides extreme installation flexibility. The easily accessible components ensure that TyphoonCompressor dryer occupies less valuable plant floor space.

High Quality Refrigerant Compressor

High Quality Refrigerant Compressor

Hermetic, Suction gas is cooled and protected against thermal and current overload. The compressor is mounted on anti-vibration rubber supports to ensure quite running of the dryer.

COPELAND | HITACHI | MITSUBISHI

*Compressor brands vary from model to model.

Reliable Solenoid Valve

Reliable Solenoid Valve

TyphoonCompressor’s reliable solenoid valve is standard in all models. The discharge and pause timers are adjustable via the CAREL control panel. The flexible and adaptable operation of the valve ensures effective discharge of condensates.

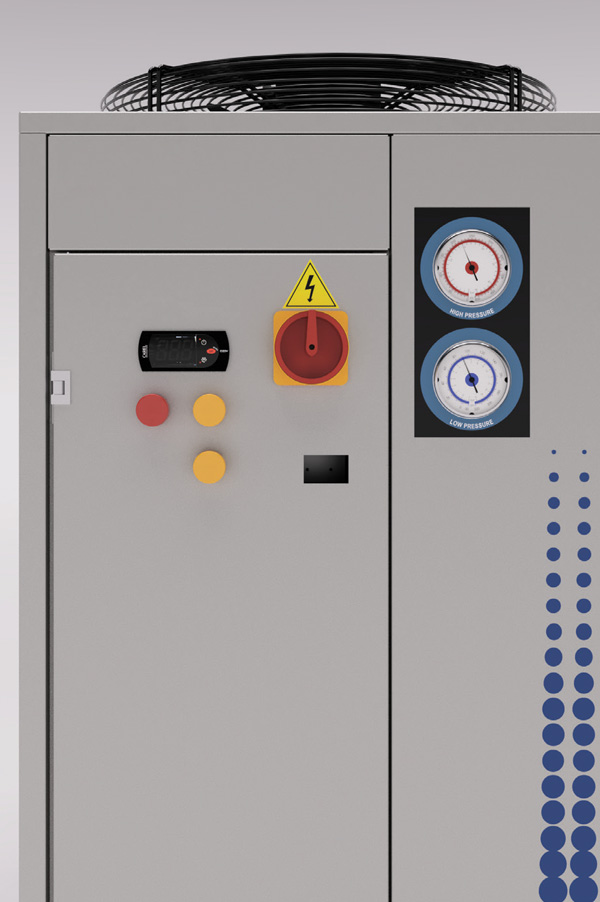

Easy to Operate CAREL Control Panel

Easy to Operate CAREL Control Panel

The advance digital display allows DIT's dryer operation to be easily monitored at a glance.

Use for model: CDK 3-250
Use for model: CDK 3-250
Use for model: CDK 300-700
Use for model: CDK 300-700
Use for model: CDK 800 and up
Use for model: CDK 800 and up



Technical Specifications: CDK-S & CDK-SA

MODEL

AIR FLOW

 Power Supply

Nominal Connection

Dimension (mm)

Weight

Refrigerant

Pressure

(m³/min) (CFM) V / PH / Hz KW inch

W.

L.

H.

Kg



(Max.) Bar

CDK- 3S

0.45 16

220/1/50

0.19

1/2" PT

382

450

430

31

R134a

16

CDK- 5S

0.65 023

220/1/50

0.21

1/2" PT

382

450

430

32

R134a

16

CDK- 8S

0.9

32

220/1/50

0.25

1/2" PT

382

450

430

33

R134a

16

CDK- 3SA

0.45 16

220/1/50

0.19

1/2" PT

382

450

430

31

R134a

16

CDK- 5SA

0.65 23

220/1/50

0.21

1/2" PT

382

450

430

32

R134a

16

CDK- 8SA

0.9

32

220/1/50

0.25

1/2" PT

382

450

430

33

R134a

16

CDK- 10SA

1.4

49

220/1/50

0.37

1/2" PT

382

502

480

38

R134a

16

CDK- 15SA

1.8

64

220/1/50

0.42

3/4" PT

382

502

480

40

R134a

16

CDK- 20SA

2.7

95

220/1/50

0.57

3/4" PT

393

723

650

65

R134a

16

CDK- 30SA

4.3

152

220/1/50

0.73

1" PT

393

723

650

69

R134a

16

CDK- 40SA

5.5

194

220/1/50

1.08

1-1/2" PT

404

875

761

92

R134a

16

CDK- 50SA

6.8

240

220/1/50

1.28

1-1/2" PT

404

875

761

101

R407c

16

CDK- 60SA

8.1

286

220/1/50

1.51

1-1/2" PT

451

1190

882

115

R407c

16

CDK- 75SA

11

388

220/1/50

1.84

2" PT

451

1190

882

135

R407c

16

CDK- 100SA

15

530

380/3/50

2.68

2" PT

451

1190

882

145

R407c

16

CDK- 125SA

18

636

380/3/50

3.03

2-1/2" PT

451

1190

882

165

R407c

16

CDK- 150SA

23

812

380/3/50

3.55

2-1/2" PT

588

1204

1005

198

R407c

16

CDK- 175SA

28

989

380/3/50

4.2

2-1/2" PT

588

1204

1005

208

R407c

16

CDK- 200SA

30

1059

380/3/50

4.72

3" PT

588

1204

1005

225

R407c

16

CDK- 250SA

36

1271

380/3/50

5.05

3" PT

588

1204

1005

256

R407c

16

CDK- 300SA

43

1519

380/3/50

6.77

4" FL

1004

1560

1615

380

R407c

16

CDK- 350SA

48

1695

380/3/50

7.36

4" FL

1004

1560

1615

400

R407c

16

CDK- 400SA

61

2154

380/3/50

8.95

5" FL

1004

1560

1615

450

R407c

16

CDK- 500SA

72

2543

380/3/50

11.2

5" FL

1004

1560

1615

510

R407c

16

CDK- 600SA

89

3143

380/3/50

13.95

6" FL

1200

2200

1900

930

R407c

16

CDK- 700SA

96

3390

380/3/50

15.4

6" FL

1200

2200

1900

1050

R407c

16

CDK- 800SA

122

4308

380/3/50

19.9

6" FL

1200

2200

1900

1120

R407c

16

CDK- 1000SA

144

5085

380/3/50

22.8

8" FL

1200

2860

1900

1260

R407c

16

CDK- 1200SA

170

6004

380/3/50

26.8

8" FL

1200

2860

1900

1580

R407c

16

CDK- 1500SA

185

6533

380/3/50

39.7

10" FL

1200

3200

2050

2200

R407c

16

CDK- 2000SA

285

10065

380/3/50

44.8

12" FL

1200

5000

2050

2400

R407c

16

CDK- 2500SA

340

12007

380/3/50

52.8

12" FL

1200

5000

2050

3100

R407c

16

Technical Specifications: CDK-SW

MODEL

AIR FLOW

Power Supply

Nominal

Connection

Dimension (mm)

Weight

Refrigerant

Pressure

(m³/min)

(CFM)

V / PH / Hz

Power KW

inch

W.

L.

H.

Kg

Bar(Max.)

CDK- 100SW

15

530

380/3/50

2.06

2" PT

451

1190

882

145

R407c

16

CDK- 125SW

18

636

380/3/50

2.5

2-1/2" PT

451

1190

882

165

R407c

16

CDK- 150SW

23

812

380/3/50

2.85

2-1/2" PT

451

1190

882

198

R407c

16

CDK- 175SW

28

989

380/3/50

3.3

2-1/2" PT

451

1190

882

208

R407c

16

CDK- 200SW

30

1059

380/3/50

3.95

3" PT

588

1204

1005

225

R407c

16

CDK- 250SW

36

1271

380/3/50

4.27

3" PT

588

1204

1005

256

R407c

16

CDK- 300SW

43

1519

380/3/50

4.6

4" FL

588

1204

1005

380

R407c

16

CDK- 350SW

48

1695

380/3/50

6.27

4" FL

588

1204

1005

400

R407c

16

CDK- 400SW

61

2154

380/3/50

6.86

5" FL

800

1204

1615

450

R407c

16

CDK- 500SW

72

2543

380/3/50

8.05

5" FL

800

1204

1615

510

R407c

16

CDK- 600SW

89

3143

380/3/50

10.3

6" FL

800

1500

1615

930

R407c

16

CDK- 700SW

96

3390

380/3/50

12.3

6" FL

800

1500

1615

1050

R407c

16

CDK- 800SW

122

4308

380/3/50

13.75

6" FL

800

1800

1615

1120

R407c

16

CDK- 1000SW

144

5085

380/3/50

18.25

8" FL

1200

1800

1800

1260

R407c

16

CDK- 1200SW

170

6004

380/3/50

20.6

8" FL

1200

1800

1800

1580

R407c

16

CDK- 1500SW

185

6533

380/3/50

24.6

10" FL

1200

1800

1800

1860

R407c

16

CDK- 2000SW

285

10065

380/3/50

36.5

12" FL

1200

2400

1800

2290

R407c

16

CDK- 2500SW

340

12007

380/3/50

41.2

12" FL

1200

2400

1800

2400

R407c

16

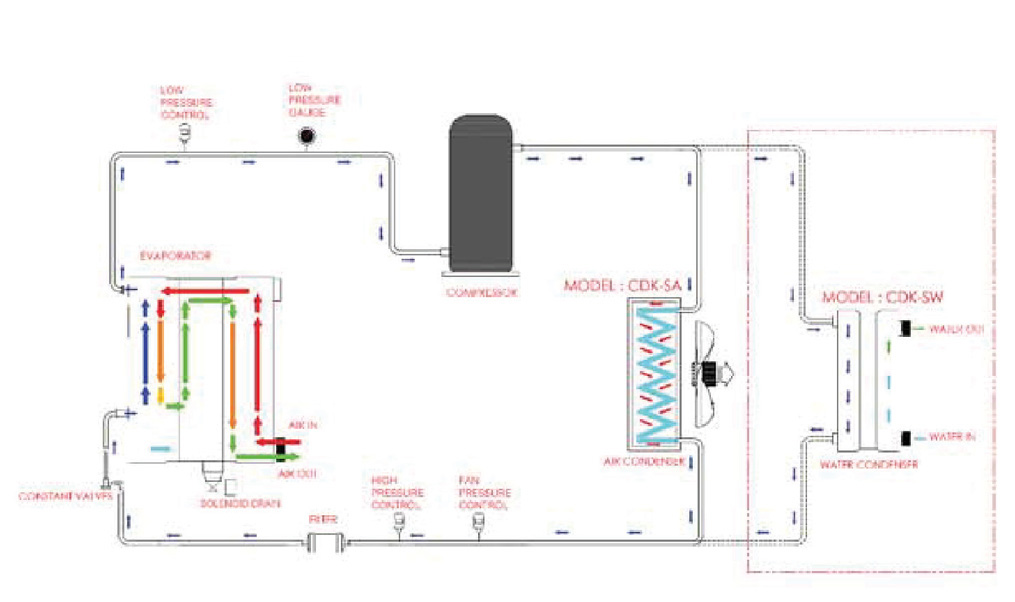

Technical Specifications CDK-SW
  1. CDK-S & CDK-SA Series Air Inlet Temperature  65 ˚C (Max.)
  2. Dew Point Temperature 3 - 10 ˚C
  3. Ambient Temperature 5 - 43 ˚C (Max.)
  4. CDK-S with Temperature Display
  5. CDK-SA with Digital Controller
  6. CDK-S & CDK-SW Series No After Cooler
  7. Air In-Out Pressure Drop < 3 Psig
  8. 2 Years warranty for Compressor and Evaporator

Dryer maximum air flow = Dryer air flow x K1 x K2 x K3 x K4

Correction factor

Ambient temperature ˚C

28

30

32

35

38

40

42

43

Factor (K1) CDK-S/SA

1.14

1.1

1.06

1

0.94

0.91

0.88

0.86

Air inlet temperature ˚C

35

40

45

50

55

60

63

65

Factor (K2)

1.48

1.18

1

0.83

0.71

0.58

0.52

0.48

Working pressure Kg/cm²

4

6

7

8

9

10

13

16

Factor (K3)

0.79

0.94

1

1.05

1.09

1.12

1.2

1.26

Dew point temperature ˚C

-

3

4

5

6

7

8

10

Factor (K4)

-

0.96

1

1.02

1.03

1.06

1.07

1.09

Scroll
