Typhoon Compressor compressor co.,Ltd.was established in 2015, specializing in the R&D and production of oil-free medium and high pressure air compressors.It is possible to use an excellent cost-effective solution to enable oil-free compres-sors to obtain higher performance and lower energy consumption.The company's R&D team keeps pace with the times, and its technological innovation has won more than 40 utility model patents and 2 invention patents.

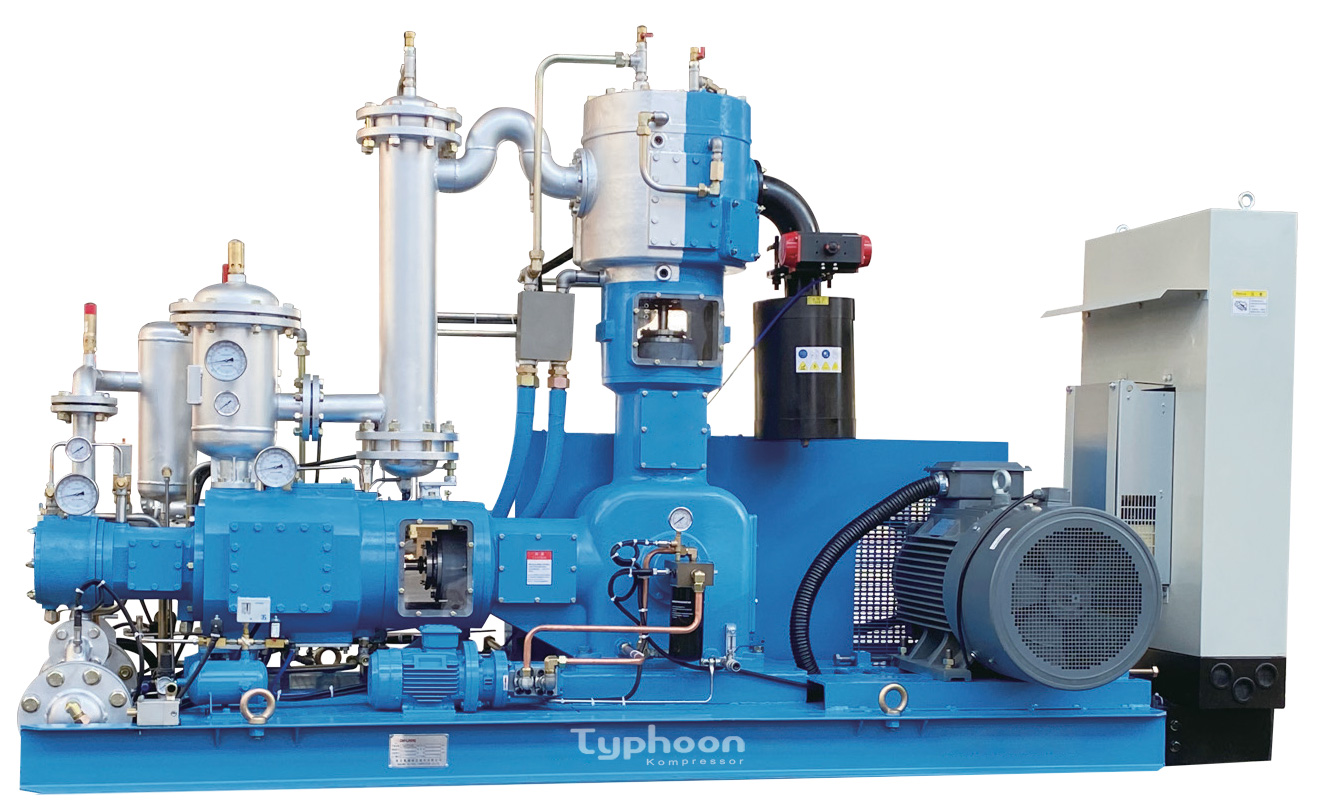

Typhoon series oil-free medium pressure bottle blowing compressor has the advantages of compact structure,low noise, low vibration,water cooling,easy installation,etc.,stable and reliable quality,and perfect after-sales service.The company's product models are diversified,the design pressure range is wider,and the performance indicators are not lower than the foreign advanced level.
The company's products are widely used in mineral water, juice, edible oil, milk, medical and pharmaceutical industries.At present,the company has sales and service agencies in many regions around the world,providing technical ser-vices to customers more conveniently and quickly.
REDUCE TOTAL COST WE PROVIDE PROFESSIONAL SOLUTIONS

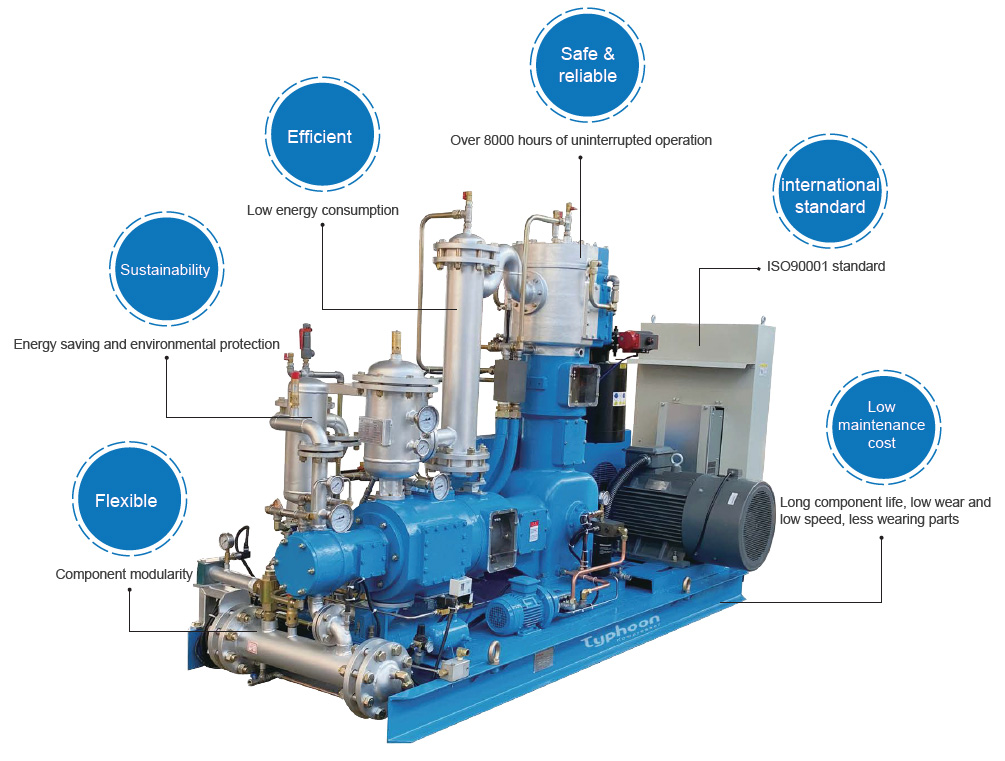

Product advantages
Technical parameters
Model |
Delivery
m3/min |
WP
Bar |
Power
kW |
Speed
r.p.m |
Dimension
(LxWxH) mm |
Weight
kg |
TLW-6/40 |
6 |
4.0 |
55 |
500 |
3180x1300x1980 |
2100 |
TLW-8/40 |
8 |
4.0 |
75 |
660 |
3500x1450x2100 |
2515 |

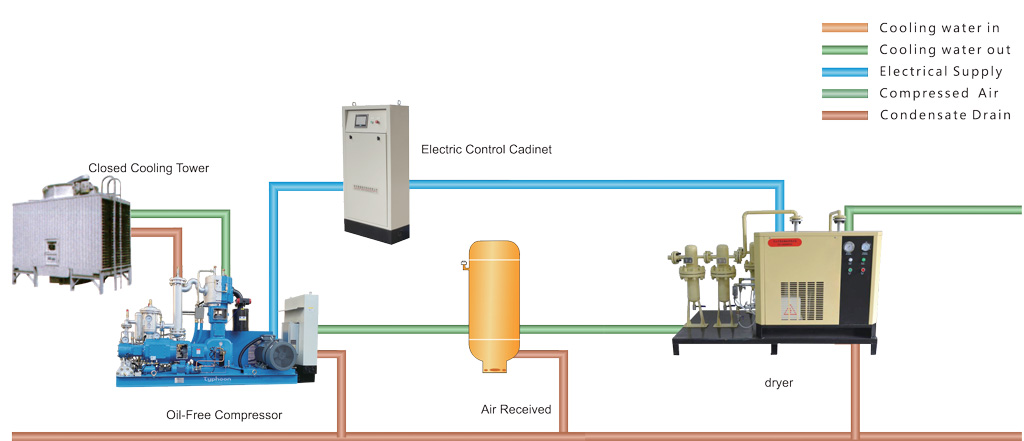

Process flow diagram
