Oil-free PET 40 bar Air Compressor

  • (599 đánh giá)
  • Nhà sản xuất: Typhoon

Model: TLW-10/40

Nơi sản xuất: N/A

Giá: Gọi liên hệ

Lượt xem: 588

Đặt mua ngay

High Pressure Air Compressor TYPHOON Series, 100% OIL-free High Pressure Piston air compressor for blowing PET bottles

Đánh giá của bạn về sản phẩm này:


Sản phẩm cùng danh mục

Oil-free PET 40 bar Mini Air Compressor

Oil-free PET 40 bar Mini Air Compressor

2,3/5 (599 đánh giá)

490 lượt

Gọi liên hệ

Thông tin sản phẩm

Benefits & Features

Options configuration

  • Wide range of pet compressors or Low pressure & booster combination

Highest cost performance.

  • Low installation & maintenance cost
  • Low energy costs

Worldwide service network.

Global solutions:

  • Variable speed intelligint software
  • Worldwide technical support
  • Global operating conditions
  • Shared are parts & technical services
  • Extended warranty program

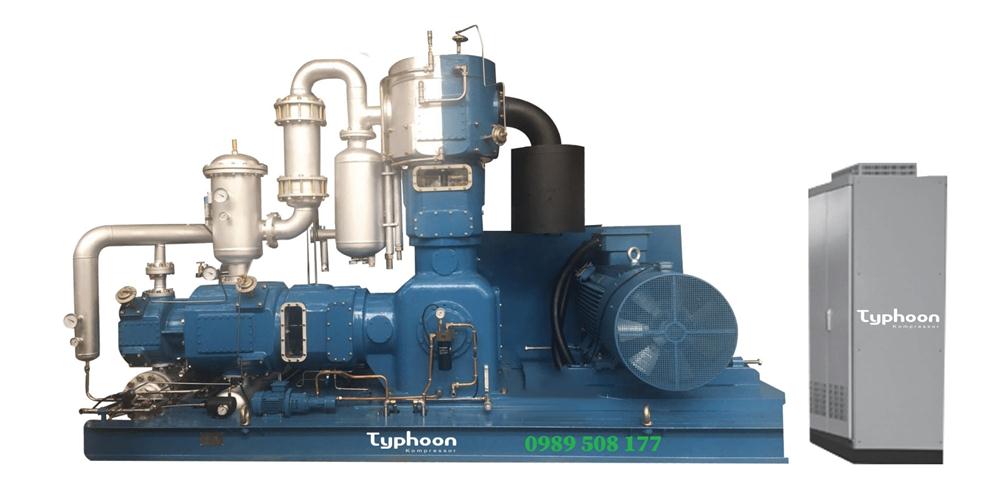

Oil-free PET 40 bar Air Compressor Benefits & Features

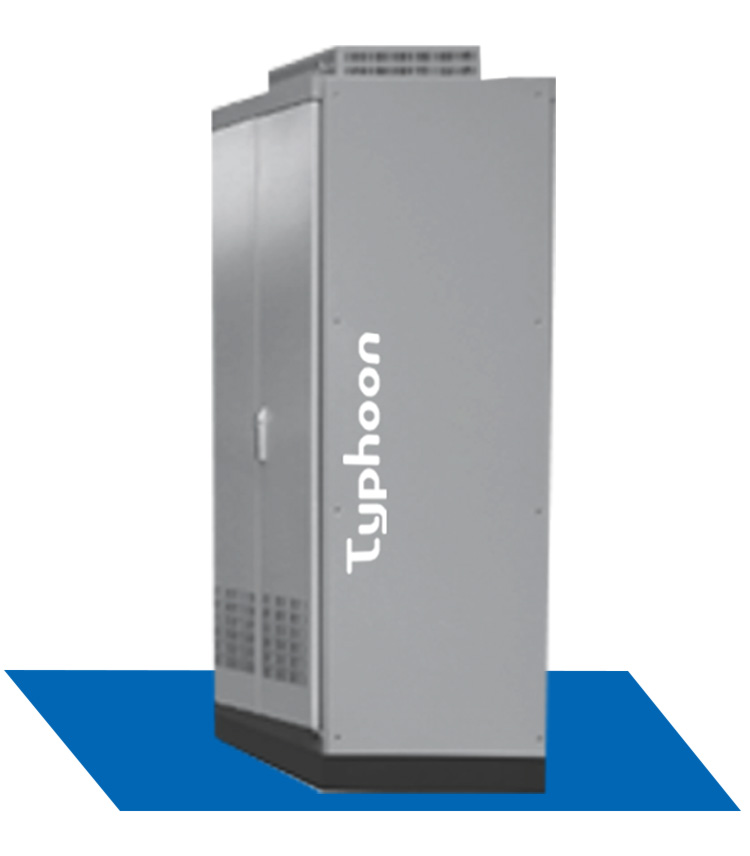

Control Cabinnet

Oil-free PET 40 bar Air Compressor Control Cabinnet

Features

  • Built-in SIEMEMS HMI touch panel display & SIEMEMS PLC to control and monitor operating status

Advantage

  • User friendly monitoring system, integrated schedule maintenance, inter-stage pressure & temperature, cooling water and lubricating pressure, alarm and shutdown protection

IOT network (option)

Variable Frequency Drive (option)

Compressor Package

Features

  • Complete skit mounted
  • Reliable cooling system with stainless steel tube & fittings.
  • Zero loss condensate drain.
  • Omdependent oil pump for prelubrication.

Advantage

  • Simple installation.
  • Easy access ease of maintenance.
  • Minimized leakage & losses.

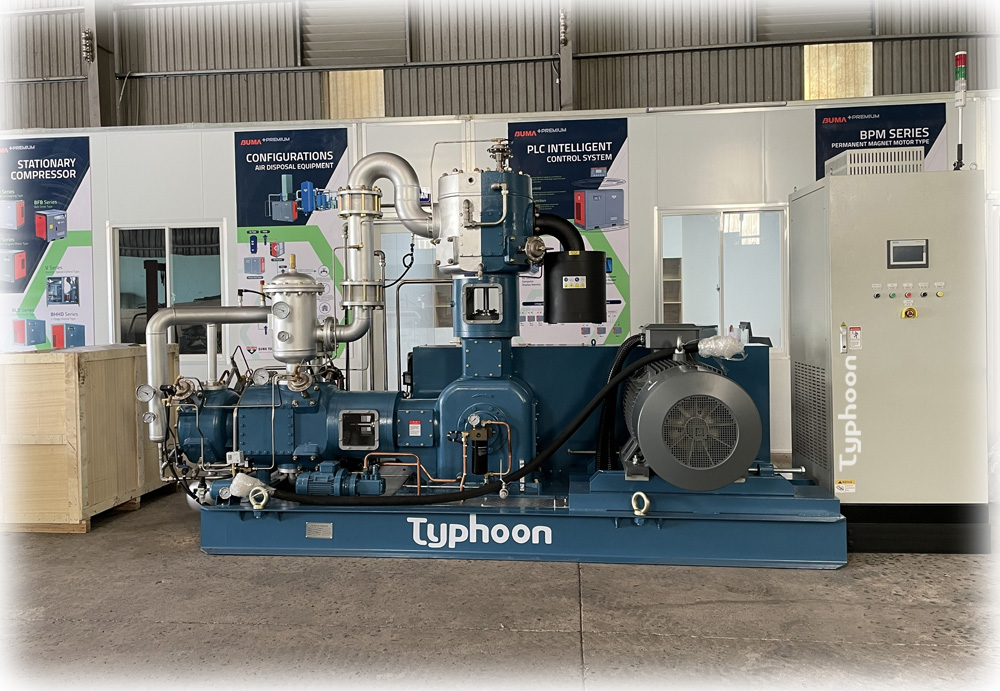

Oil-free PET 40 bar Air Compressor Package

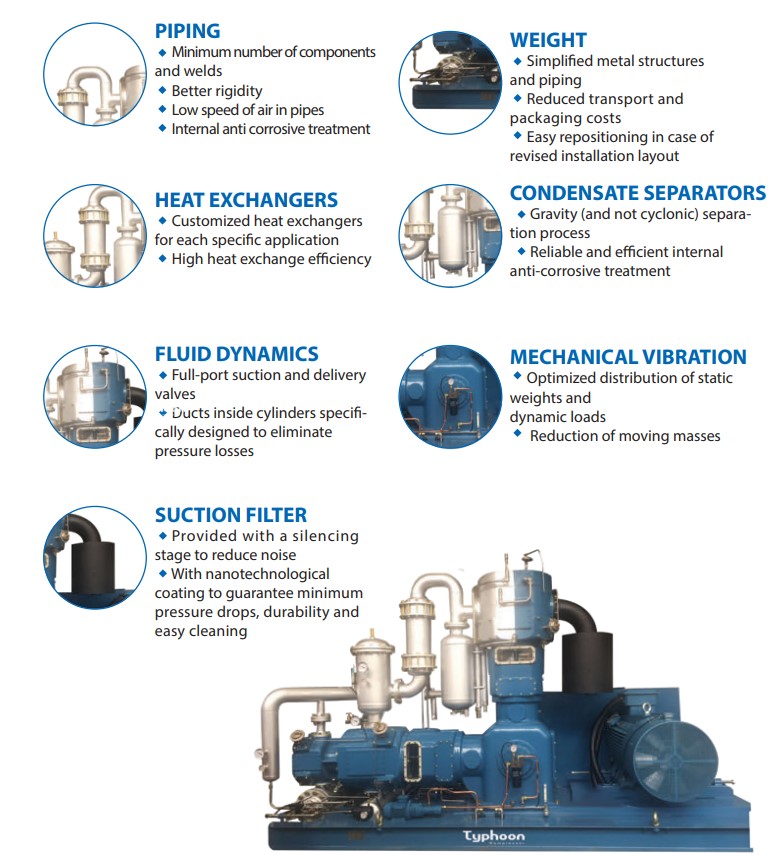

Oil-free PET 40 bar Air Compressor Catalog Page 1

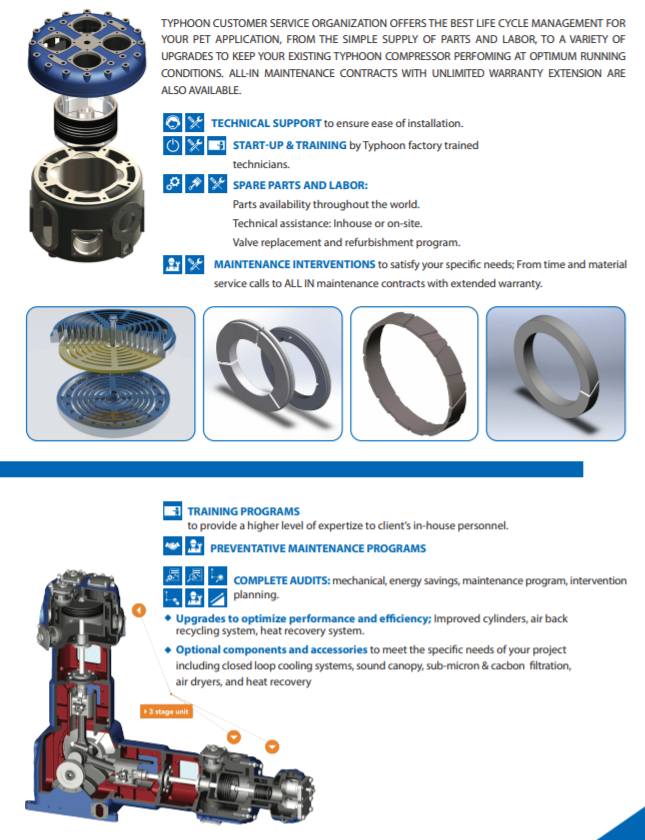

Oil-free PET 40 bar Air Compressor Catalog Page 2

Technical Parameters

Model Delivery
m3/min		 WP
Bar		 Power
kW		 Speed
r.p.m		 Dimension
(LxWxH) mm		 Weight
kg
TLW-8.5/40 8.5 40 90 450 4050x1750x2380 5500
TLW-10/40 10 40 110 500 4050x1750x2380 5800
TLW-12/40 12 40 132 580 4050x1750x2380 6000
TLW-16/40 16 40 160 390 4650x2200x2780 7400
TLW-18/40 18 40 185 440 4650x2200x2780 7600
TLW-20/40 20 40 200 470 4650x2200x2780 7800
TLW-22/40 22 40 220 500 4650x2200x2780 8000
TLW-25/40 25 40 250 390 4950x2690x2980 8500
TLW-28/40 28 40 280 440 4950x2690x2980 8800
TLW-30/40 30 40 315 470 4950x2690x2980 9000

W TYPE OF MEDIUM-HIGH PRESSURE OIL-FREE AIR COMPRESSOR

  • Low speed: starting from 355 to 460 rpm reduce wear. • long stoke: 10 to 30% more than similar industries
  • Low piston load: smaller piston diameter, reduce load on components
  • Low discharge temperature: operate temperature within 90°c-130°c improved relaibility
  • Improved compression: additional 1 to 3 ring to reduce compression leakage
  • Low vibrition: precision balance inertia force and torque to achieved dynamic balance
  • High volumatic eficiency: achieved isobaric condition with equal
  • Pressure ratio on each stage
  • Compression design: 3-stages with double acting on stage one and
  • Combination single acting on stage two & three
  • High eficient cooler: providing compression cycle closed to isothermal condition, reduces energy loss.

Technical parameters

Model Delivery
m3/min		 WP
Bar		 Power
kW		 Speed
r.p.m		 Dimension
(LxWxH) mm		 Weight
kg
WW-5/40 5 40 55 600 2330x1700x1900 2500
WW-9/40 9 40 110 600 2530x1900x1900 3200

W TYPE OF MEDIUM-HIGH PRESSURE OIL-FREE AIR COMPRESSOR

  • Low speed: starting from 355 to 460 rpm reduce wear. • long stoke: 10 to 30% more than similar industries
  • Low piston load: smaller piston diameter, reduce load on components
  • Low discharge temperature: operate temperature within 90°c-130°c improved relaibility
  • Improved compression: additional 1 to 3 ring to reduce compression leakage
  • Low vibrition: precision balance inertia force and torque to achieved dynamic balance
  • High volumatic eficiency: achieved isobaric condition with equal
  • Pressure ratio on each stage
  • Compression design: 3-stages with double acting on stage one and
  • Combination single acting on stage two & three
  • High eficient cooler: providing compression cycle closed to isothermal condition, reduces energy loss.

Technical parameters

Model Delivery
m3/min		 WP
Bar		 Power
kW		 Speed
r.p.m		 Dimension
(LxWxH) mm		 Weight
kg
WW-5/40 5 40 55 600 2330x1700x1900 2500
WW-9/40 9 40 110 600 2530x1900x1900 3200

TYPE OF MEDIUM-HIGH PRESSURE OIL-FREE AIR COMPRESSOR

  • Wear resistant cylinder sleeve, harden and finished for relaibility
  • Heavy duty piston rings, material composite ptfe with copper and carbon
  • Piston rod sensor, mornitoring piston rings condition water cooled packing box improved cooling and prolong packing seal hard chrome, polished piston rod reduce friction and reduce packing wear low piston speed reduce piston rings wear
  • Silence compression valves with non-rupture peek valve seat
  • Force lubrication main bearing improve bearing service life.
  • Dual oil injection eliminate connecting rod oil channel, improve rod strength
  • Relaible aluminum-magnesium alloy crankshaft bush bearing
  • Distant-piece design with oil-scaper rings to ensure 100% oil-free air quality air recovery system
  • Easy access for maintenance, reduce service downtime
  • Stainless steel pipes and tubing elimilate rust for relaible operation

Technical parameters

Model Delivery
m3/min		 WP
Bar		 Power
kW		 Speed
r.p.m		 Dimension
(LxWxH) mm		 Weight
kg
VW-3/40 3 40 37 600 2330x1700x1600 2100
VW-6/40 6 40 75 600 2330x1700x1600 2600
  • Countrywide branch office and parts warehouses to provided quality and timely service. Ofure service engineer available 24 hour 7 day on worldwide technical service support.
  • Provide 24 hour on call service.
  • Complete range of parts inventory.
  • Scheduled maintenance program.
  • On-site training and commissioning.
  • Turnkey installation service.
