Two Stage Permanent Magnet Serial TPM-IID

  • (1199 votes)

Model: TPM-IID

Made in: N/A

Price: Call us

Views: 984

Buy now

Efficient two-stage compression motor; dual coaxial integrated design; double permanent magnet synchronous motor; dual frequency conversion control

Vote product:


Same product category

All In One Fix Speed Serial TFSTD

All In One Fix Speed Serial TFSTD

1,6/5 (416 votes)

871 views

Call us
New
Two-Stage PM VSD Air Compressor Series (TPTT-V)

Two-Stage PM VSD Air Compressor Series (TPTT-V)

5,0/5 (1 votes)

49 views

Call us
All In One Permanent Magnet Serial TPMTD

All In One Permanent Magnet Serial TPMTD

2,7/5 (615 votes)

827 views

Call us
Fixed Speed Air Compressor Serial TFS

Fixed Speed Air Compressor Serial TFS

5,0/5 (1 votes)

723 views

Call us
Permanent Magnet Screw Air Compressor Serial TPM

Permanent Magnet Screw Air Compressor Serial TPM

2,2/5 (1.198 votes)

1.003 views

Call us
Low Pressure Screw Air Compressor Serial TPM-IID

Low Pressure Screw Air Compressor Serial TPM-IID

2,2/5 (1.198 votes)

1.094 views

Call us

Description

Product Advantages

High efficiency horizontal motor, permanent magnet synchronous motor

High efficiency horizontal motor, permanent magnet synchronous motor

Gearless: IPM motor and air end are connected through one shaft without a gear box: no gear pitting, no broken teeth.
Without coupling: Two independent IPM motors drive each of the two-stage air ends directly. One-shaft structure, without coupling worries.
Without motor bearings: High-Performance permanent magnet materials, without motor bearings, reduce fault risks for longer service life.
Without leak troubles: A special design of sealed structure prevents oil leakage by 100%, no leak troubles.

Frequency inverter

Frequency inverter

Typhoon Horizontal Type Two Stage PM Variable-Frequency Screw Air Compressor.
Has the Prominent Advantages of Energy-Saving, Stable, Low noise, Surpass Energy Efficiency Class A

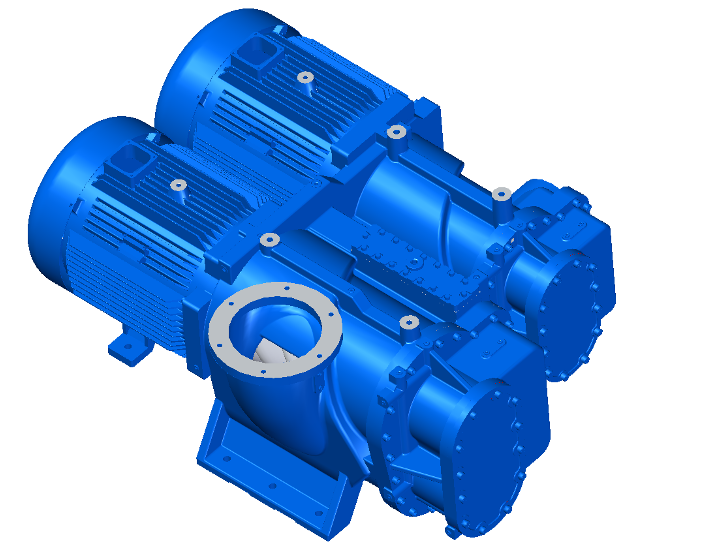

1）Double Coaxial Integrated Design.
2）Double PM Synchronous Motor.
3）Double VFD Control.
4）High Efficient Two Stage Airend.
5）Horizontal Structure, Underslung, Lower Vibration.

PLC

Intelligent control

Through higher intelligent control, the size of air production can be adjusted automatically, therefore, no matter how the air volume fluctuates, the pressure is always maintained which means the operation is really under constant pressure. The motor responds quickly, starts quickly and loads quickly.When the air volume is suddenly changed, it can respond quickly and the reaction time is within 50ms. It completely avoids the damage of uers' equipment and product defects caused by the pressure tuation, moreover, it reduces the energy loss caused by the pressure fluctuation.

Oil & Air separator

Oil & Air separator

Three-stage separation of oil and gas is achieved: Centrifugal separation, gravity separation, separation by fine core. With high-efficiency oil-air separator to ensure that the compressed air oil content is less than 3ppm. High-precision large-capacity oil separator using time can be up to 4000 hours

Efficiency filtration system

Efficiency filtration system

Make exhaust oil content lower than 3ppm. Hepa filter, removes impurities in the lubricating oil to provide clean lubricating oil for the rotor and bearing of the motor, filters dust in the air, make the motor rotor and bearing free of damage.

Cooling fan

High capability cooling system

Using axial fan, large propeller, lower speed and lower noise. With high air pressure, high air volume and stable operation.
Large heat exchanger, using high strength aluminum alloy material, ensure good cooling effect even under 45 degree environment.

Product Parameter

Model Power Pressure Capacity Dimensions Weight Outlet Pipe Noise Level
KW HP bar M3/min (LxWxH) mm Kg Diameter dB
TPM30A-llD 22 30 7 4.20 1300x950x1340 590 Gl 1/4 75
8 4.00
10 3.60
TPM40A -llD 30 40 7 5.75 1350x1000x1350 670 Gl 1/2 75
8 5.48
10 4.90
TPM50A-llD 37 50 7 7.50 1350x1000x1350 670 Gl 1/2 75
8 7.10
10 6.45
TPM60A-llD 45 60 7 9.26 1760x1300x1750 1360 G2 78
8 8.80
10 7.92
TPM75A-llD 55 75 7 11.46 1760x1300x1750 1360 G2 80
8 10.92
10  9.82
TPM100A-llD 75 100 7 15.60 2670x1880x1820 2600 DN65 80
8 14.92
10 13.23
TPM120A-llD 90 120 7 18.75 2670x1880x1820 2600 DN65 85
8 17.85
10 16.45
TPM150A-llD 110 150 7 23.76 2740x2145x2000 3550 DN65 85
8 22.57
10 20.58
TPM175A-llD 132 175 7 27.55 2740x2145x2000 3550 DN65 85
8 26.25
10 23.85
TPM200A-llD 160 200 7 33.28 3980x2380x2260 5300 DN100 85
8 32.23
10 28.56
TPM250A-llD 185 250 7 40.32 3980x2380x2260 6000 DN100 85
8 37.38
10 33.28
TPM270A-llD 200 270 7 43.55 3980x2380x2260 6000 DN100 85
8 41.85
10 37.46
TPM300A-llD 220 300 7 47.38 3980x2380x2260 6000 DN100 85
8 45.50
10 41.26
TPM350A-llD 250 350 7 52.20 3980x2380x2260 6000 DN100 85
8 50.85
10 44.90
TPM420A-llD 315 420 7 63.80 3980x2380x2500 6200 DN125 90
8 61.50
10 56.00
  • The exhaust volume is measured under the rated exhaust pressure, according to the national standard GB3853 test (equivalent to ISO1217 appendix C).
  • Recommend frquency 30%-100%.
  • The above data is based on the standard grid- 380V/ 50HZ.
  • Please make further inquiry for the non-standard specification type and machines which are used under high/low temperature, high humidity, dusty working environment.
