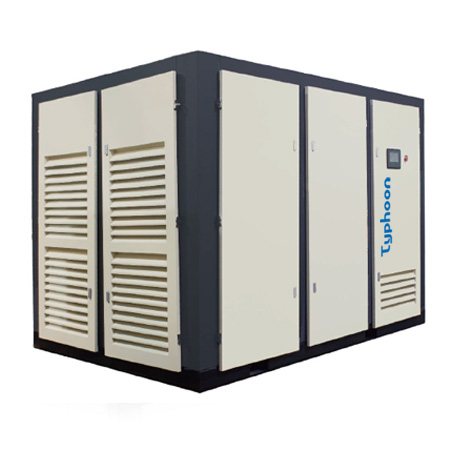

Low Pressure Screw Air Compressor Serial TPM-IID
Low Pressure Screw Air Compressor Serial TPM-IID Detail Advantage Low Pressure Screw Air Compressor Serial TPM-IID
Low Pressure Screw Air Compressor Serial TPM-IID Low Pressure Screw Air Compressor Serial TPM
Low Pressure Screw Air Compressor Serial TPM-IID Low Pressure Screw Air Compressor Serial TPM -1
Low Pressure Screw Air Compressor Serial TPM-IID Low Pressure Screw Air Compressor Serial TPM 2

Low Pressure Screw Air Compressor Serial TPM-IID

  • (1198 votes)

Made in: N/A

Price: Call us

Views: 1.068

Buy now

Surpass Energy Efficiency Class A
Horizontal Type Two Stage PM Variable-Frequency Screw Air Compressor

- SMOOTH SPEED ADJUSTMENT
- EXCEEDS Fl RST CLASS ENERGY EFFICIENCY STANDARDS
- LOW NOISE
- HIGH DISCHARGE CAPACITY
- DUAL INVERTER CONTROL

Vote product:


Same product category

All In One Fix Speed Serial TFSTD

All In One Fix Speed Serial TFSTD

1,6/5 (416 votes)

842 views

Call us
All In One Permanent Magnet Serial TPMTD

All In One Permanent Magnet Serial TPMTD

2,7/5 (615 votes)

805 views

Call us
Fixed Speed Air Compressor Serial TFS

Fixed Speed Air Compressor Serial TFS

5,0/5 (1 votes)

701 views

Call us
Permanent Magnet Screw Air Compressor Serial TPM

Permanent Magnet Screw Air Compressor Serial TPM

2,2/5 (1.198 votes)

981 views

Call us
Two Stage Permanent Magnet Serial TPM-IID

Two Stage Permanent Magnet Serial TPM-IID

2,2/5 (1.199 votes)

961 views

Call us

Description

Product Advantages

High efficiency horizontal motor, permanent magnet synchronous motor

High efficiency horizontal motor, permanent magnet synchronous motor

Gearless: IPM motor and air end are connected through one shaft without a gear box: no gear pitting, no broken teeth.
Without coupling: Two independent IPM motors drive each of the two-stage air ends directly. One-shaft structure, without coupling worries.
Without motor bearings: High-Performance permanent magnet materials, without motor bearings, reduce fault risks for longer service life.
Without leak troubles: A special design of sealed structure prevents oil leakage by 100%, no leak troubles.

Frequency inverter

Frequency inverter

Typhoon Horizontal Type Two Stage PM Variable-Frequency Screw Air Compressor.
Has the Prominent Advantages of Energy-Saving, Stable, Low noise, Surpass Energy Efficiency Class A
1）Double Coaxial Integrated Design.
2）Double PM Synchronous Motor.
3）Double VFD Control.
4）High Efficient Two Stage Airend.
5）Horizontal Structure, Underslung, Lower Vibration.

PLC

Intelligent control

Through higher intelligent control, the size of air production can be adjusted automatically, therefore, no matter how the air volume fluctuates, the pressure is always maintained which means the operation is really under constant pressure. The motor responds quickly, starts quickly and loads quickly.When the air volume is suddenly changed, it can respond quickly and the reaction time is within 50ms. It completely avoids the damage of uers' equipment and product defects caused by the pressure tuation, moreover, it reduces the energy loss caused by the pressure fluctuation.

Oil & Air separator

Oil & Air separator

Three-stage separation of oil and gas is achieved: Centrifugal separation, gravity separation, separation by fine core. With high-efficiency oil-air separator to ensure that the compressed air oil content is less than 3ppm. High-precision large-capacity oil separator using time can be up to 4000 hours

Efficiency filtration system

Efficiency filtration system

Make exhaust oil content lower than 3ppm. Hepa filter, removes impurities in the lubricating oil to provide clean lubricating oil for the rotor and bearing of the motor, filters dust in the air, make the motor rotor and bearing free of damage.

Cooling fan

High capability cooling system

Using axial fan, large propeller, lower speed and lower noise. With high air pressure, high air volume and stable operation.
Large heat exchanger, using high strength aluminum alloy material, ensure good cooling effect even under 45 degree environment.

Product Parameter

Model Power Pressure Capacity Dimensions Weight Outlet Pipe Noise Level
KW HP bar M3/min (LxWxH) mm Kg Diameter dB
TPM50A- llD 37 50 4 9.36 1650x1300x1850 1360 G2"  75
5 8.79
TPM60A- llD 45 60 4 11.32 1650x1300x1850 1360 G2" 75
5 10.61
TPM75A-llD 55 75 4 14.95 2670x1880x2000 2800 DN65 80
5 13.91
TPM100A-llD 75 100 4 19.01 2670x1880x2000 2800 DN65 80
5 18.60
TPM120A-llD 90 120 4 23.92 3335x2145x2055 3600 DN100 82
5 22.78
TPM150A-llD 110 150 4 28.33 3335x2145x2055 3600 DN100 82
5 26.98
TPM175A-llD 132 175 4 33.10 3335x2145x2055 3600 DN100 85
5 31.14
TPM200A-llD 160 200 4 44.67 3978x2378x2450 6200 DN125 85
5 41.70
TPM250A-llD 185 250 4 47.39 3978x2378x2450 6200 DN125 85
5 45.00
TPM270A-llD 200 270 4 50.83 3978x2378x2450 6200 DN125 85
5 46.20
TPM300A-llD 220 300 4 54.00 3978x2378x2450 6200 DN125 85
5 51.45

Product Parameter 2-3 Bar

Model Power Pressure Capacity Dimensions Weight Outlet Pipe Noise Level
KW HP bar M3/min (LxWxH) mm Kg Diameter dB
TPM60AL 45 60 2 15.00 2560x1710x1950 2500 DN80 80
3 13.00
TPM75AL 55 75 2 18.50 2560x1710x1950 2500 DN80 80
3 17.50
TPM100AL 75 100 2 25.00 2860x1800x2080 2800 DN100 80
3 22.00
TPM120AL 90 120 2 30.00 2860x1800x2080 2800 DN100 85
3 27.00
TPM150AL 110 150 2 38.50 3515x2230x2450 3300 DN150 85
3 31.50
TPM175AL 132 175 2 43.50 3515x2230x2450 3500 DN150 85
3 37.50
TPM200AL 160 200 2 50.50 3515x2230x2450 3600 DN150 85
3 45.50
  • The exhaust volume is measured under the rated exhaust pressure, according to the national standard GB3853 test (equivalent to ISO1217 appendix C).
  • Recommend frquency 30%-100%.
  • The above data is based on the standard grid- 380V/ 50HZ.
  • Please make further inquiry for the non-standard specification type and machines which are used under high/low temperature, high humidity, dusty working environment.
