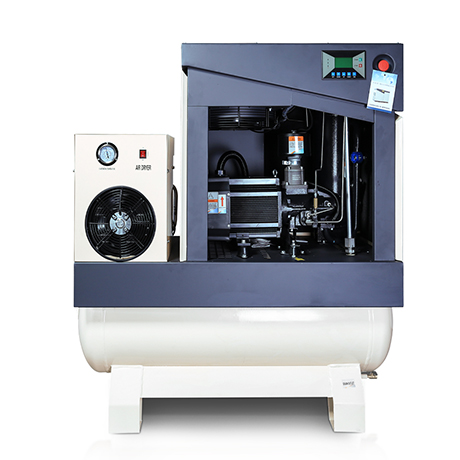

All In One Fix Speed Serial TFSTD

  • (416 votes)

Model: TFSTD

Made in: N/A

Price: Call us

Views: 808

Buy now

All in one serial provides a complete solution to produce clean and dry compressed air.

Tags: Typhoon Air compressor

Vote product:


Same product category

All In One Permanent Magnet Serial TPMTD

All In One Permanent Magnet Serial TPMTD

2,7/5 (615 votes)

782 views

Call us
Fixed Speed Air Compressor Serial TFS

Fixed Speed Air Compressor Serial TFS

5,0/5 (1 votes)

679 views

Call us
Permanent Magnet Screw Air Compressor Serial TPM

Permanent Magnet Screw Air Compressor Serial TPM

2,2/5 (1.198 votes)

952 views

Call us
Two Stage Permanent Magnet Serial TPM-IID

Two Stage Permanent Magnet Serial TPM-IID

2,2/5 (1.199 votes)

930 views

Call us
Low Pressure Screw Air Compressor Serial TPM-IID

Low Pressure Screw Air Compressor Serial TPM-IID

2,2/5 (1.198 votes)

1.030 views

Call us

Description

Product Advantages

Oil & Air separator

Oil & Air separator

Bigger oil and air separator and oil separator element, improving the initial separation efficiency, making the oil content less than or equal to 3ppm.

Oil filter

Oil filter

Oil filter fitness is 25um, which can effectively guarantee the clean lubricating oil supply to the main system and improve the service life of the air end.

Controller

Controller

Control screw compressor's start and stop, pressure, temperature, over current alarm, fault alarm, maintain warning and other functions precisely.

Cooling fan

Cooling fan

High efficiency and large air volume, greatly lower the temperature and prelong the lubricating oil change period.

Air tank

Air tank

Compressor with air tank combined, the exhaust from the compressor is directly discharged to the tank, which reduces the intermediate connecting pipe and effectively saves space.

Product Parameter

TSPT – TSPTD SERIES TECHNICAL SPECIFICATION
Model Power Pressure Capacity Dimensions Weight Outlet Pipe Noise Level Pressure
KW HP bar M3/min (LxWxH) mm Kg Diameter dB bar
TFST7.5A 5.5 7.5 7 0.90 1230x600x1530 300 G3/4 65 300
8 0.80
10 0.70
TFST10A 7.5 10 7 1.05 1230x600x1530 300 G3/4 65 300
8 1.10
10 1.00
TFST15A 11 15 7 1.68 1550x820x1780 350 G3/4 65 300
8 1.60
10 1.45
TFST20A 15 20 7 2.50 1550x820x1780 350 G3/4 65 300
8 2.30
10 2.00
WITH AIR TANK, DRYER AND FILTER
TFSTD7.5A 5.5 7.5 7 0.90 1725x660x1625 380 G3/4 65 200/500
8 0.80
10 0.70
TFSTD10A 7.5 10 7 1.05 1725x660x1625 380 G3/4 65 200/500
8 1.10
10 1.00
TFSTD15A 11 15 7 1.68 1880x820x1940 505 G3/4 65 500
8 1.60
10 1.45
TFSTD20A 15 20 7 2.50 1880x820x1940 505 G3/4 65 500
8 2.30
10 2.00
TFSTD30A 22 30 7 3.52 2100x750x1950 650 G1 75 600
8 3.36
10 3.06
  • The exhaust volume is measured under the rated exhaust pressure, according to the national standard GB3853 test (equivalent to ISO1217 appendix C).
  • Recommend frquency 30%-100%.
  • The above data is based on the standard grid- 380V/ 50HZ.
  • Please make further inquiry for the non-standard specification type and machines which are used under high/low temperature, high humidity, dusty working environment.
