Super Energy Saving Series (8~40bar)

  • (1 votes)

Made in: N/A

Price: Call us

Views: 536

Buy now

Air Pressure: 8~40 [bar], 116~580[psi], 0.8~4.0[Mpa]

Air Capacity: 13~50 [m³/min], 217~833[l/s], 460~1766[cfm]

Working Power: 75~264 [kW], 100~360[hp]

Vote product:

Same product category

Description

Comparisions

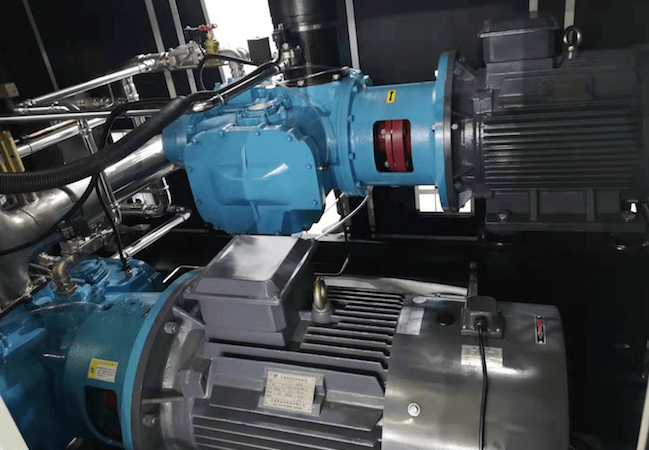

Energy-saving Two-stage

Oil-free Screw Air Compressor

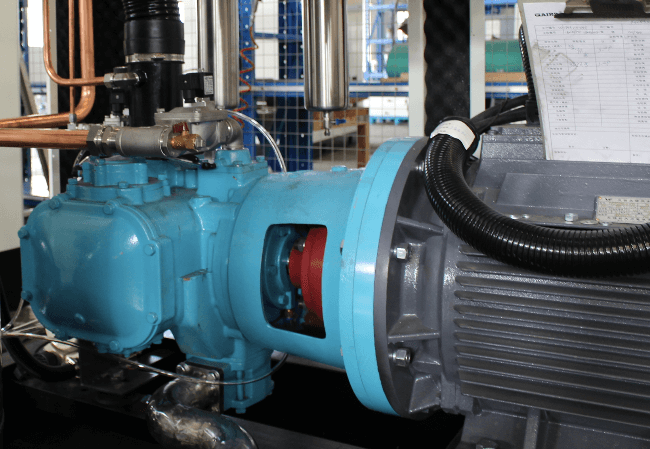

Regular Single-stage

Oil-free Screw Air Compressor

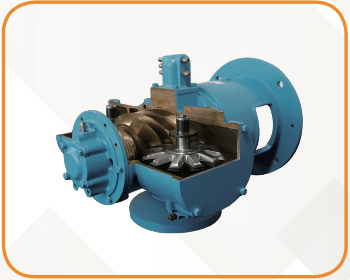

Structure Difference Water-lubricated Oil-free Single Screw Dry Oil-free Double Screw
Model Energy-saving series Regular series
10bar&20m3/min 110kW 132kW
10bar&24m3/min 140kW 160kW
10bar&30m3/min 180kW 200kW
10bar&40m3/min 220kW 250kW
8bar&30m3/min 155kW 185kW
8bar&40m3/min 200kW 250kW

Parameters

8bar 20~60m³/min
Oil-free Two-stage Screw Air Compressor (PM VSD)

Model Pressure Capacity Power Noise Dimension(mm) Weight
OTVSC90F/S 8 bar 20m³/min 55+37kW 75dB 3000×1600×2100 3370kg
OTVSC120F/S 8 bar 24m³/min 75+45kW 78dB 3000×1600×2100 3450kg
OTVSC155S 8 bar 30m³/min 90+65kW 80dB 3000×1600×2100 3500kg
OTVSC185S 8 bar 36m³/min 110+75kW 80dB 3600×2000×2100 4500kg
OTVSC200S 8 bar 40m³/min 110+90kW 80dB 3600×2000×2100 4500kg
OTVSC220S 8 bar 45m³/min 132+90kW 80dB 3600×2000×2100 4700kg
OTVSC250S 8 bar 50m³/min 132+110kW 80dB 3600×2000×2100 5000kg
OTVSC315S 8 bar 60m³/min 185+132kW 80dB 3800×2000×2100 5800kg

10bar 20~60m³/min
Oil-free Two-stage Screw Air Compressor (PM VSD)

Model Pressure Capacity Power Noise Dimension(mm) Weight
OTVSC110F/S 10 bar 20m³/min 55+55kW 75dB 3000×1600×2100 3370kg
OTVSC140F/S 10 bar 24m³/min 75+65kW 78dB 3000×1600×2100 3450kg
OTVSC180S 10 bar 30m³/min 90+90kW 80dB 3000×1600×2100 3500kg
OTVSC200S 10 bar 36m³/min 110+90kW 80dB 3600×2000×2100 4500kg
OTVSC220S 10 bar 40m³/min 132+90kW 80dB 3600×2000×2100 4500kg
OTVSC250S 10 bar 45m³/min 132+110kW 80dB 3600×2000×2100 4700kg
OTVSC270S 10 bar 50m³/min 132+132kW 80dB 3600×2000×2100 5000kg
OTVSC355S 10 bar 60m³/min 185+160kW 80dB 3800×2000×2100 5800kg

16bar 13~40m³/min
Oil-free Two-stage Screw Air Compressor (PM VSD)

Model Pressure Capacity Power Noise Dimension(mm) Weight
OTVSE13/16 16 bar 13m³/min 45+45kW 74dB 4000×2000×2400 2500kg
OTVSE20/16 16 bar 20m³/min 75+55kW 74dB 4000×2000×2400 2500kg
OTVSE24/16 16 bar 24m³/min 90+75kW 76dB 4000×2000×2400 2800kg
OTVSE30/16 16 bar 30m³/min 110+90kW 76dB 3000×1600×2100 3200kg
OTVSE40/16 16 bar 40m³/min 132+132kW 78dB 3400×2000×2400 4500kg

20bar 13~40m³/min
Oil-free Two-stage Screw Air Compressor (PM VSD)

Model Pressure Capacity Power Noise Dimension(mm) Weight
OTVSE13/20 20 bar 13m³/min 55+37kW 74dB 4000×2000×2400 2500kg
OTVSE20/20 20 bar 20m³/min 90+55kW 74dB 4000×2000×2400 2500kg
OTVSE24/20 20 bar 24m³/min 110+75kW 76dB 4000×2000×2400 2800kg
OTVSE30/20 20 bar 30m³/min 132+90kW 76dB 3000×1600×2100 3200kg
OTVSE40/20 20 bar 40m³/min 185+110kW 78dB 3400×2000×2400 4500kg

Details

1) Energy saving technologies

Two-stage compression technology

Two-stage compressor(or Dual-stage compressor) energy-saving 5%~13% over equivalent sized single-stage compressors. But why?

– Adopt two-stage compression to attain reasonable pressure distribution and reduce each compression ratio, which can achieve the compressor’s power savings.
In a single-stage compressor operating at 100 PSIG at sea level, the compression ratio is 7.9 to 1 (in absolute terms). But a two-stage compressor operating at the same pressure will have a compression ratio of 2.8 to 1 in each stage (2.8 is the square root of 7.9) .

– Low compression ratio reduces the internal leakage and improve volumetric efficiency.

– Low compression ratio reduces the bearing load, improve the bearing life and extend the life of the host.

30~40bar two-stage compression energy saving air compressor
for PET bottle blowing, aerospace plants

2-5bar oil-lubricated two-stage compression energy efficient air compressor
for Chemical, Mining, Electricity, Power plants, Cement, Glass blowing, Spinning, Textile

7~10bar 100% oil-free two-stage compression most energy efficient air compressor
for Electronic, Food, Pharmaceuticals, Chemical and so on.

Oil-free Technology

Oil-free technology reduces expenditures in these ways:

– Saving energy due to hot air discharge
The superior cooling capability of lubricating water ensures that the heat is removed efficiently at the source gives more air per kW of power. The operation temperature is about 55℃, there is no need to be cooled and discharged directly.

– Saving the costs of extra energy to combat pressure drop due to oil air separation unit.
For the oil-lubricated screw air compressor, the oil air separation unit resistance leads to pressure loss. Power consumption increases by 0.3%~0.5% for every increase of pressure drop of 0.1bar

– High compression efficiency due to low temperature ideal isothermal compression
For the oil-lubricated screw air compressor, high Interstage and exhaust temperature, rise every 10 ℃, power consumption will increase 3% as a result.

– Cutting maintenance costs and treating oily condensate costs
Avoiding expensive oil, oil-filter, air oil separator, oil cooler costs.
Low temperature reduces the stress on components ensuring long life.

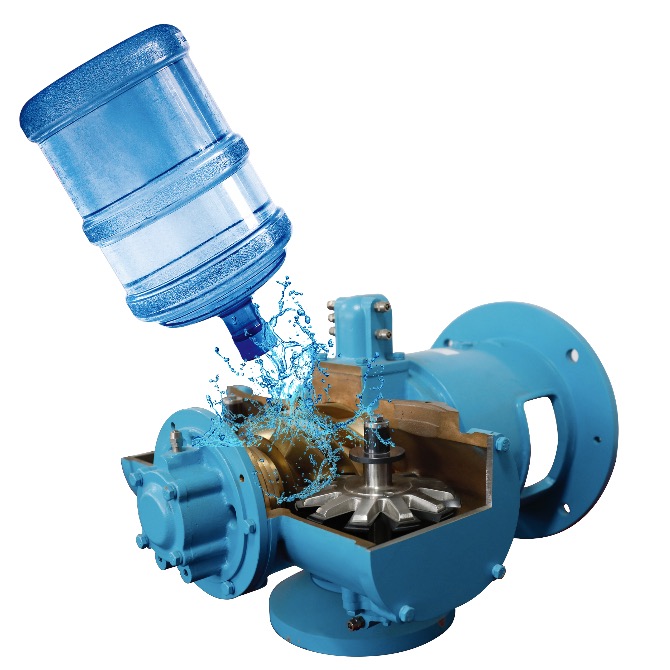

Water-lubricated oil-free energy saving series air compressor
Water-lubricated oil-free energy saving series air compressor

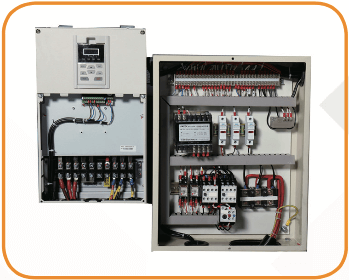

Variable Speed Drive (VSD) Technology

– Why does Variable Speed Drive (VSD) save energy when compared to fixed speed?

  • Compare it to a car, fixed speed is either drives 100 km per hour or not at all. Fixed speed compressors run at one fixed speed, and are very efficient when operating fully on load 100%, but most applications don’t, they have a fluctuating air demand.
  • Variable speed drive (VSD) compressor can adjust its motor and elements speed to match the air demand, which saves considerable amounts of energy.
  • Generally, use VSD can save 10% ~ 35% energy, it depends on the working conditions of the air compressor. When the customer’s air consumption fluctuates greatly, the energy-saving effect is better. For evaluating the energy-saving effect, you can refer to the proportion of no-load time to the total working time.
Oil Free Scew Air Compressor
Oil Lubricated Screw Compressor

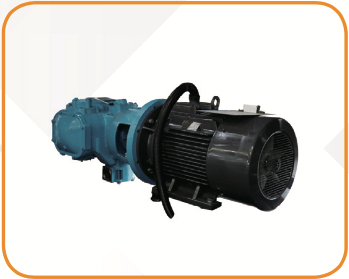

Permanent Magnet Synchronous Motor

Permanent magnet synchronous motors are more efficient than The Asynchronous motors and have a wide high efficiency range:

– For the permanent magnet synchronous motor, when the speed range is 25% -99% of the rated speed, the efficiency can reach 95% -97%.

– But for the Asynchronous motor, only when the speed range is 70% -99% of the rated speed, the efficiency is about 88%. And what’s more, when the speed range is lower than 70% of the rated speed, the efficiency will drop sharply.

2) Energy efficiency components

Advantages

100% OIL-FREE

MOST RELIABLE

LOWEST MAINTENANCE

ENERGY SAVING >30%

LOWEST NOISE
