Comparisions
Oil-free
Scroll Air Compressor |
Oil-free
Piston Air Compressor |

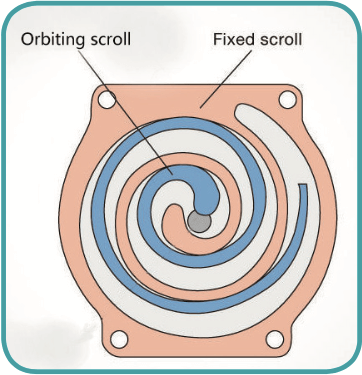

Oil-free SCROLL Air Compressor |

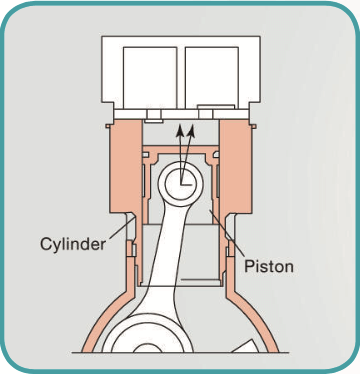

Oil-free PISTON Air Compressor |
Only one moving part
Low Vibration and Noise
Four times lifetime compared with Piston
|
The pistons rise and fall
Causing too much vibration and Noise
Short Service lifetime
|
100% Volumetrically efficient
All the intake air is compressed and moved through the exhaust side.
|
There is De-ration in Capacity
Due to wear and tear in cylinder crank case, piston rings, pistons and valves.
|
Parameters
3.7kW~5.5kW Oil-free Scroll type Air Compressor
Model |
Pressure |
Capacity |
Power |
Noise |
Dimension(mm) |
Weight |
OTS5A |
8bar
10bar
|
400L/min
300L/min
|
3.7 kW
5 HP
|
55±2dB |
810×690×880 |
200kg |
OTS7.5A |
8bar
10bar
|
600L/min
400L/min
|
5.5 kW
7.5 HP
|
55±2dB |
810×690×880 |
200kg |
[External type All-in-one Series]
3.7kW~5.5kW Oil-free Scroll Air Compressor with Air Tank, Air Dryer and Air Filters(Portable)
Model |
Pressure |
Capacity |
Power |
Noise |
Dimension(mm) |
Weight |
OTS5AMTD |
8bar
10bar
|
400L/min
300L/min
|
3.7 kW
5 HP
|
55±2dB |
1400×800×15000 |
450kg |
OTS7.5AMTD |
8bar
10bar
|
600L/min
400L/min
|
5.5 kW
7.5 HP
|
55±2dB |
1400×800×15000 |
450kg |
- Note 1. Refrigerated air dryer: 1.5m3/min, Dew point: 2~10℃
- Note 2. Ail filters: 1.5m3/min, pre-filter(3 micron), post-filter-1(1 micron), post filter-2(0.01 micron)
- Note 3. Air tank: 200L or customized
[Built-in type All-in-one Series]
3.7kW~5.5kW Oil-free Scroll Air Compressor with Air Tank, Air Dryer and Air Filters
Model |
Pressure |
Capacity |
Power |
Noise |
Dimension(mm) |
Weight |
OTS5AITD |
8bar
10bar
|
400L/min
300L/min
|
3.7 kW
5 HP
|
55±2dB |
1400×700×15000 |
300kg |
OTS7.5AITD |
8bar
10bar
|
600L/min
400L/min
|
5.5 kW
7.5 HP
|
55±2dB |
1400×700×15000 |
300kg |
- Note 1. Refrigerated air dryer: 1.5m3/min, Dew point: 2~10℃
- Note 2. Ail filters: 1.5m3/min, pre-filter(3 micron), post-filter-1(1 micron), post filter-2(0.01 micron)
- Note 3. Air tank: 24L (Separated big volume Air tank can be provided)
Advantages

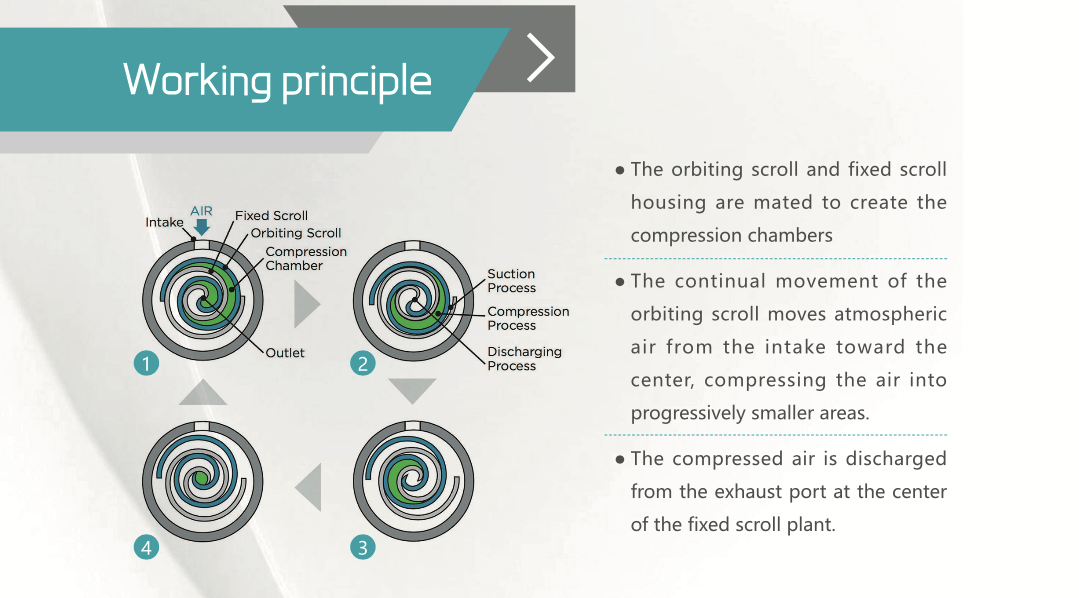

Principles
