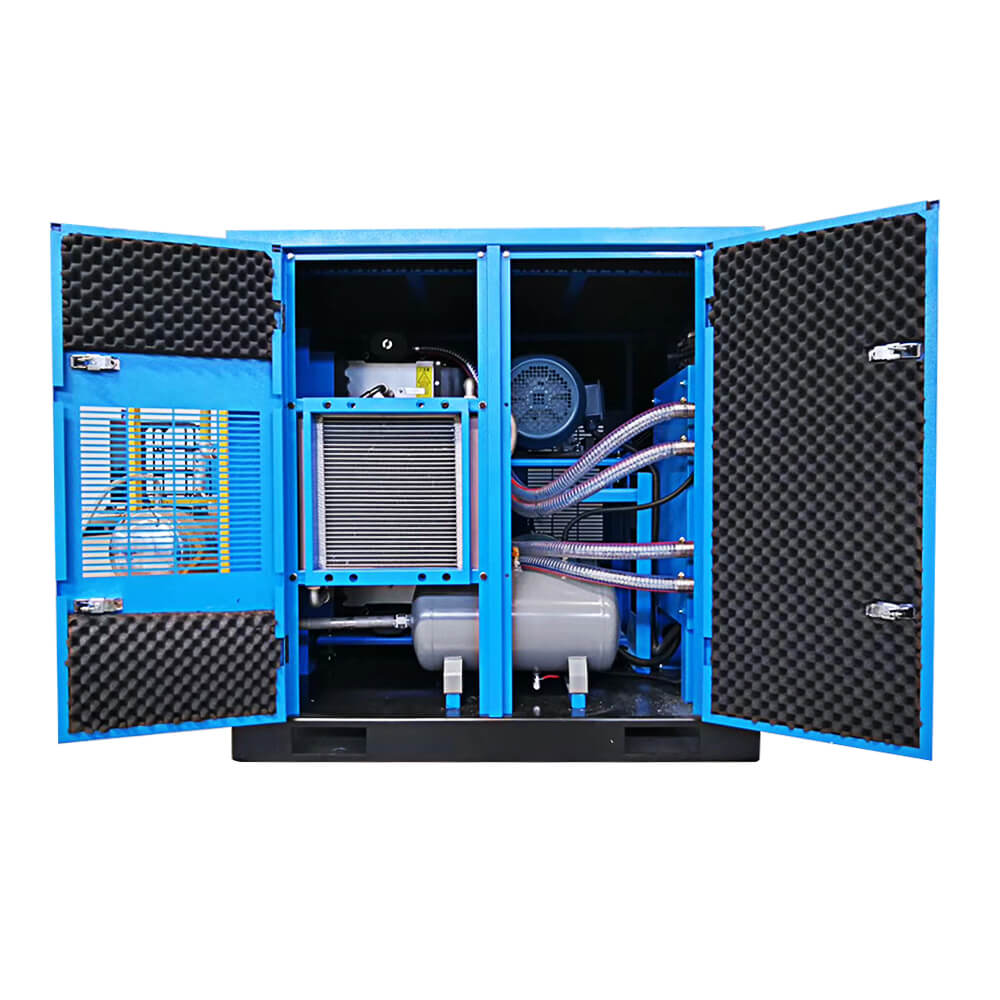

10~67 HP Oil-free Scroll Air Compressor 10hp oil free air compressor

10~67 HP Oil-free Scroll Air Compressor 22hp oil free air compressor

10~67 HP Oil-free Scroll Air Compressor 5.5kW scroll air compressor

10~67 HP Oil-free Scroll Air Compressor

(1200 votes)

Made in: N/A

Price: Call us

Buy now

Air Pressure: 8~10 [bar], 116~145[psi], 0.8~1.0[Mpa]

Air Capacity: 600~5400 [L/min]

Working Power: 7.5~49.5 [kW], 10~67[hp]

Vote product:

Same product category

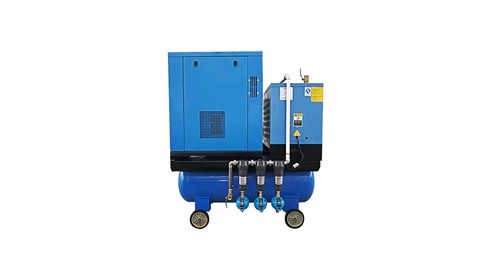

5 - 7.5 HP Oil-free Scroll Air Compressor

Air Pressure: 8~10 [bar], 116~145[psi], 0.8~1.0[Mpa]

Air Capacity: 300~600 [L/min]

Working Power: 3.7~5.5 [kW], 5~7.5[hp]

2,3/5 (600 votes)

764 views

Call us

10~67 HP Oil-free Scroll Air Compressor

Price: Call us

Buy now

Description

Comparisions

Oil-free

Scroll Air Compressor

Oil-free

Piston Air Compressor

Oil-free SCROLL Air Compressor

Oil-free PISTON Air Compressor

Only one moving part

Low Vibration and Noise

Four times lifetime compared with Piston

The pistons rise and fall

Causing too much vibration and Noise

Short Service lifetime

100% Volumetrically efficient

All the intake air is compressed and moved through the exhaust side.

There is De-ration in Capacity

Due to wear and tear in cylinder crank case, piston rings, pistons and valves.

Parameters

Multiplex Series(2~9 Air-end)
7.5kW~49.5kW Oil-free Scroll type Air Compressor

Model	Pressure	Capacity	Power	Noise	Dimension(mm)	Weight
OTS10A	8bar 10bar	800L/min 600L/min	7.5 kW 10 HP	60±2dB	1130×960×1140	400kg
OTS15A	8bar 10bar	1200L/min 800L/min	11 kW 15 HP	60±2dB	1130×960×1140	440kg
OTS22A	8bar 10bar	1800L/min 1200L/min	16.5kW 22 HP	62±2dB	1270×810×1660	630kg
OTS30A	8bar 10bar	2400L/min 1600L/min	22 kW 30 HP	65±2dB	1600×1250×1240	820kg
OTS37A	8bar	3000L/min	27.5kW 37 HP	65±2dB	1600×1250×1240	1000kg
OTS45A	8bar	3600L/min	33 kW 45 HP	65±2dB	1600×1250×1240	1200kg
OTS52A	8bar	4200L/min	38.5kW 52 HP	65±2dB	2320×1450×1740	1400kg
OTS60A	8bar	4800L/min	44 kW 60 HP	65±2dB	2320×1450×1740	1520kg
OTS67A	8bar	5400L/min	49.5kW 67 HP	65±2dB	2320×1450×1740	1650kg

All-in-one product can be provided

Note 1. Post-treatment equipment such as air tank, refrigerating dryer/Adsorption dryer and filters can be built in.
Note 2. Saving installation space and solve the worries of supporting equipment, ensure that the product is ready to use once it is started.
Note 3. Various types of machine with power of 2.2~49.5kW and air volume of 200~5400L/min can be customized.

Advantages

100% OIL-FREE

– More than 20 years experiences in Water-lubricated Oil-free technology

– Germany Rhineland TUV Class 0 Oil-free Certification

MOST RELIABLE

– More than 30 years experiences in Single Screw Technology

– Most balance and reliable structure

– Low temperature(< 55℃) reduces the stress on components

LOWEST MAINTENANCE

– Use Water as lubricating medium instead of oil

– Without Oil Air Separation Unit

– Consumable parts are only air and water filter elements

ENERGY SAVING >30%

– Ideal Speed (3000r/min)

– Ideal isothermal compression and no heat waste (<55℃)

– Most Advanced VSD and Two-stage compression technology

LOWEST NOISE

– Super dynamic balanced system and low vibration

– The motor and screw are directly connected without any gear

– Sound absorbing materials are also used in the shell

Principles

10~67 hp oil free scroll air compressor working principle

10~67 hp oil free scroll air compressor scroll air end
